20

FRONT-TO-BACK ADJUSTMENT (See Figs. 22 and 23) -

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF
THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS
NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS
EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-SIDE.

SERVICE AND ADJUSTMENTS

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

Depress clutch/brake pedal fully and set parking brake.

Place motion control lever in neutral (N) position.

Place attachment clutch in “DISENGAGED” position.

Turn ignition key “OFF” and remove key.

Make sure the blades and all moving parts have completely stopped.

Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with
plug.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or
driveway. Make sure tires are properly inflated (See “PROD-
UCT SPECIFICATIONS” section of this manual). If tires are
over or underinflated, you will not properly adjust your
mower.

FIG. 21

TRACTOR

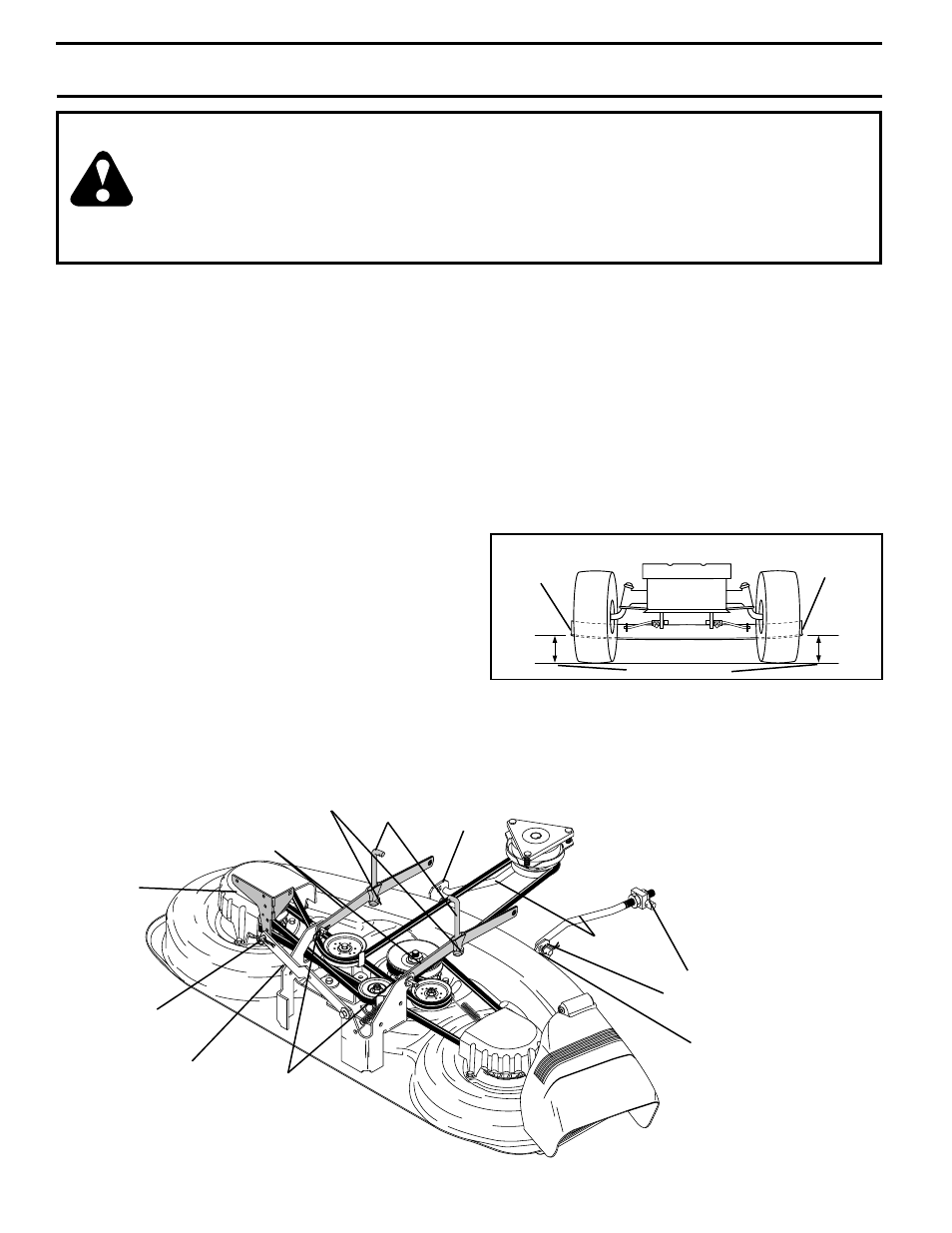

TO REMOVE MOWER (See Fig. 20)

Place attachment clutch in “DISENGAGED” position.

Turn height adjustment knob to lowest setting.

Lower mower to its lowest position.

Remove retainer spring holding anti-swaybar to chassis
bracket and disengage anti-swaybar from bracket.

Remove retainer springs from suspension arms at deck
and disengage arms from deck.

Raise attachment lift to its highest position.

Remove two retainer springs from each front link and
remove links.

Slide mower forward and remove belt from electric
clutch pulley.

Slide mower out from under right side of tractor.

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE
MOWER DECK IS TO BE MOUNTED ON THE TRACTOR,
REMOVE THE FRONT LINKS.

TO INSTALL MOWER

Follow procedure described in “INSTALL MOWER AND
DRIVE BELT” in the Assembly section of this manual.

RETAINER
SPRINGS

LIFT
LINKS

FIG. 20

RETAINER
SPRING

ADJUSTMENT
NUTS

SUSPENSION
ARMS

FRONT MOWER
BRACKET

RETAINER
SPRINGS

FRONT
LINKS

FRONT MOWER
BRACKET

CHASSIS
BRACKET

ANTI-SWAY BAR

BOTTOM EDGE
OF MOWER TO
GROUND

A

A

GROUND LINE

BOTTOM EDGE

OF MOWER TO

GROUND

SIDE-TO-SIDE ADJUSTMENT (See Figs. 20 and 21)

Raise mower to its highest position.

Measure height from bottom edge of mower to ground
level at front corners of mower. Distance “A” on both
sides of mower should be the same.

If adjustment is necessary, make adjustment on one
side of mower only.

To raise one side of mower, tighten lift link adjustment
nut on that side.

To lower one side of mower, loosen lift link adjustment
nut on that side.

NOTE: Each full turn of adjustment nut will change mower
height about 3/16".

Recheck measurements after adjusting.
