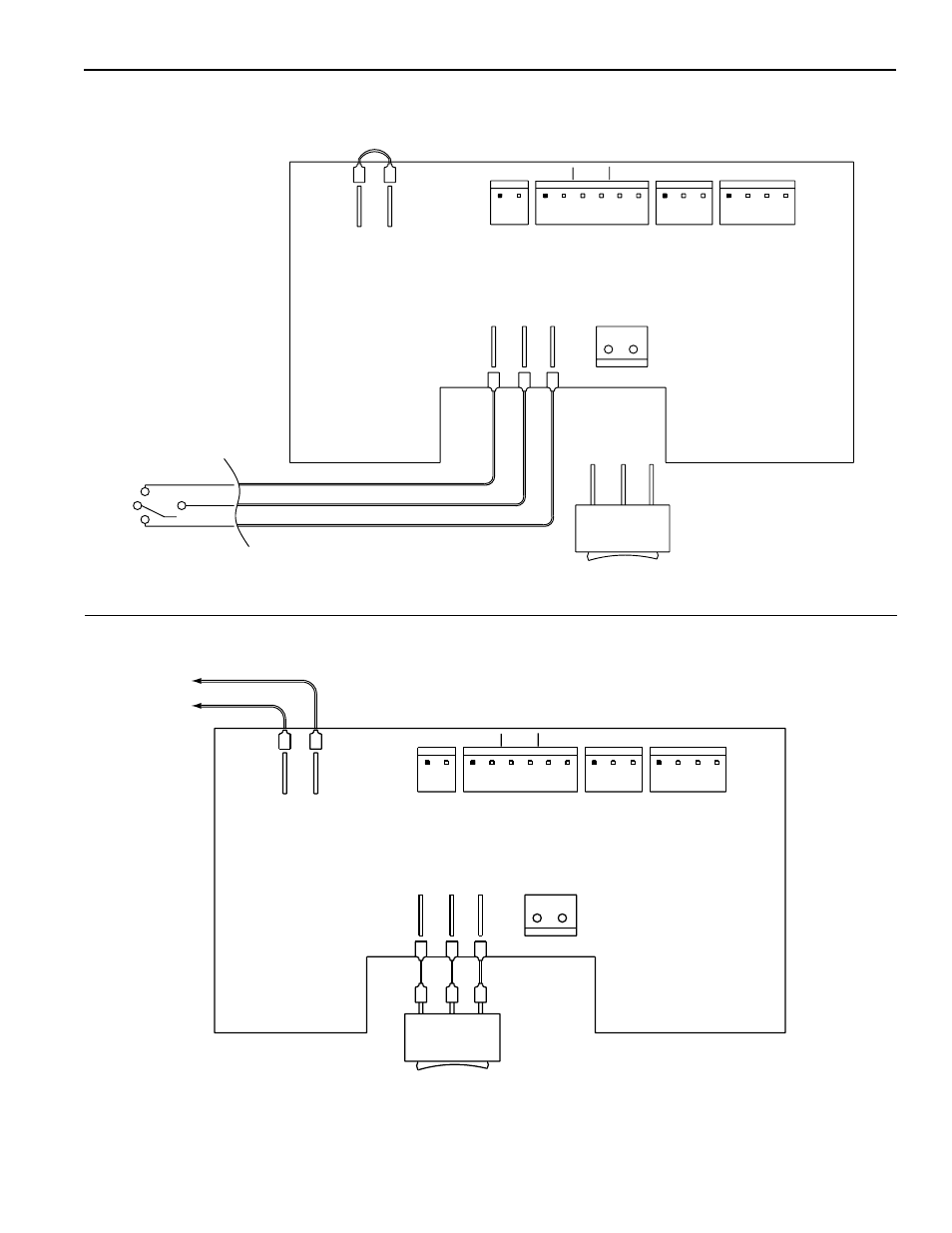

31 Installation (contd.)
SPA COM POOL TPROBE
OUT RETURN
24 VAC HILMT IGNITION MOD
EXT SWITCH
THERMOSTAT CIRCUIT BOARD
JUMPER REQUIRED IF NO 2 WIRE REMOTE SWITCH
POOL/OFF/SPA
FRONT PANEL
THERMOSTAT SELECT SWITCH
TFUSE VALVE PRESS
SPA COM POOL TPROBE
OUT RETURN
24 VAC HILMT IGNITION MOD
EXT SWITCH
THERMOSTAT CIRCUIT BOARD
JUMPER REQUIRED IF NO 2 WIRE REMOTE SWITCH
POOL/
OFF/SPA
FRONT PANEL
THERMOSTAT SELECT SWITCH
TFUSE VALVE
REMOTE POOL/OFF/SPA
THERMOSTAT SELECT SWITCH
PRESS
NOTE: When connecting a remote control to the MiniMax CH, you must install the low voltage
thermostat wires in separate conduit from ANY line voltage wires. Failure to follow these
instructions will cause the thermostat relay to react erratically.
.
REMOTE SWITCH DUAL THERM IID ONLY
Figure 7.
Figure 8.
3 Wire Remote
2 Wire Remote
