INSTALLATION
1.
Remove the VCR and all cables from the box.
2.
Place the VCR in a suitable location.
3.
If installing in a rack, place the VCR in the rack before making cable and power
connections. Refer to the documentation included with the rack kit for installation
instructions.
4.
If you are not using a multiplexer, refer to Figure 1.
•
Connect the camera (video output) to the rear of the VCR (video input BNC).
Connect the VCR (video output BNC) to the monitor (video input).
•
Connect the alarm input to the VCR (ALM IN and GND [ground] terminals).
•
If you are using a 600-ohm microphone, connect it to the VCR (AUDIO IN jack).
Connect the VCR (AUDIO OUT connector) to the monitor (audio input).
5.
If you are using a multiplexer, refer to the
Connecting the VCR to a Multiplexer
section.

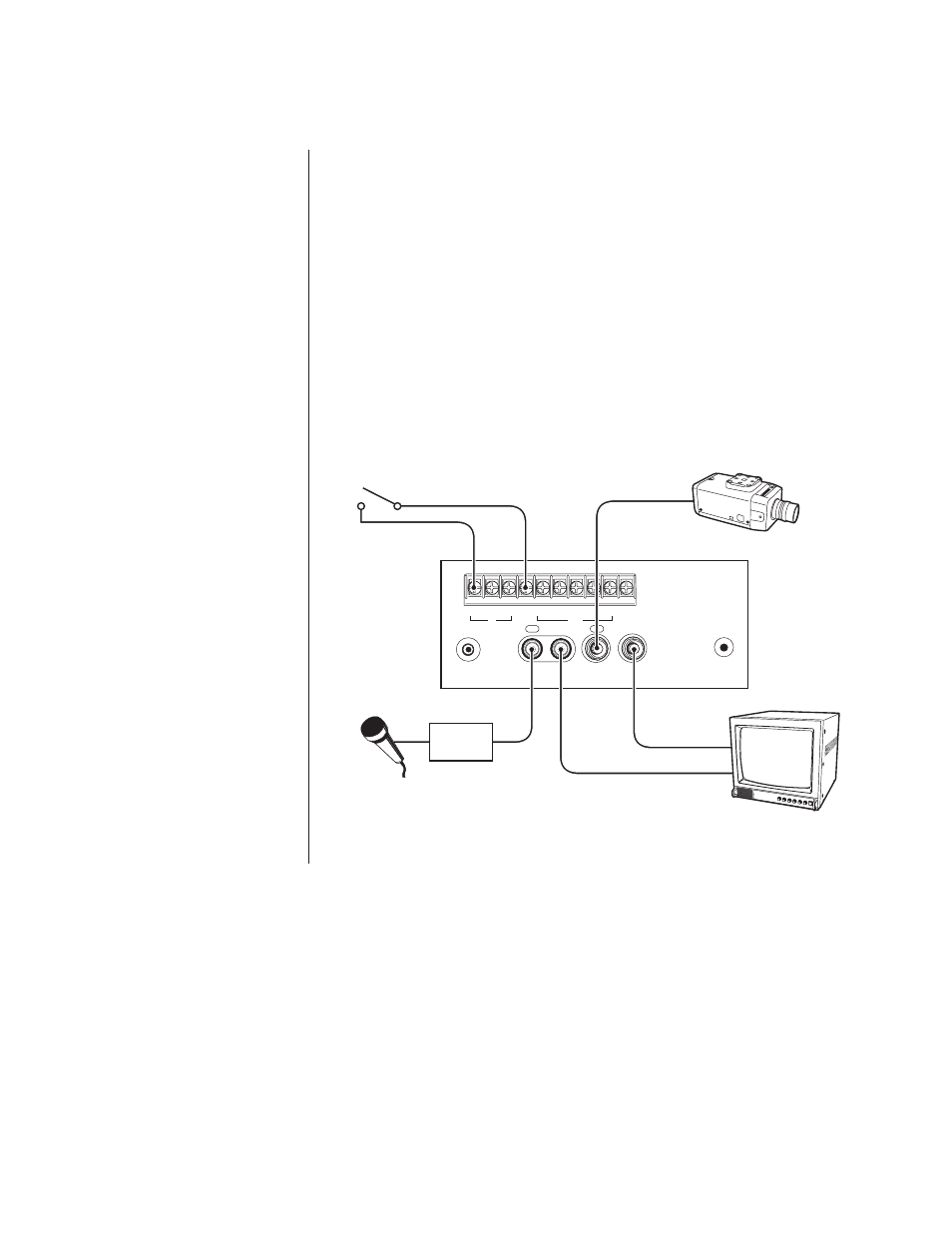

Figure 1. Typical System Setup
REMOTE
RESET
IN
OUT
AUDIO
IN
OUT
VIDEO
ALM RST
GND
REC
ALM MODE
CLK CALL
IN
OUT
MICROPHONE
MICROPHONE
AMPLIFIER
VIDEO IN
AUDIO IN
AUDIO
IN
AUDIO
OUT
VIDEO
OUT
VIDEO
IN
MONITOR
ALARM OUTPUT
FROM DEVICE
00248
