Hardware overview 21
Model 3125 RAS Getting Started Guide 1 • Introduction
3125TM Transition Module
Weight: 0.45 lbs (0.2 kg)
Refer to figure 4 for height, width, and depth dimensions.

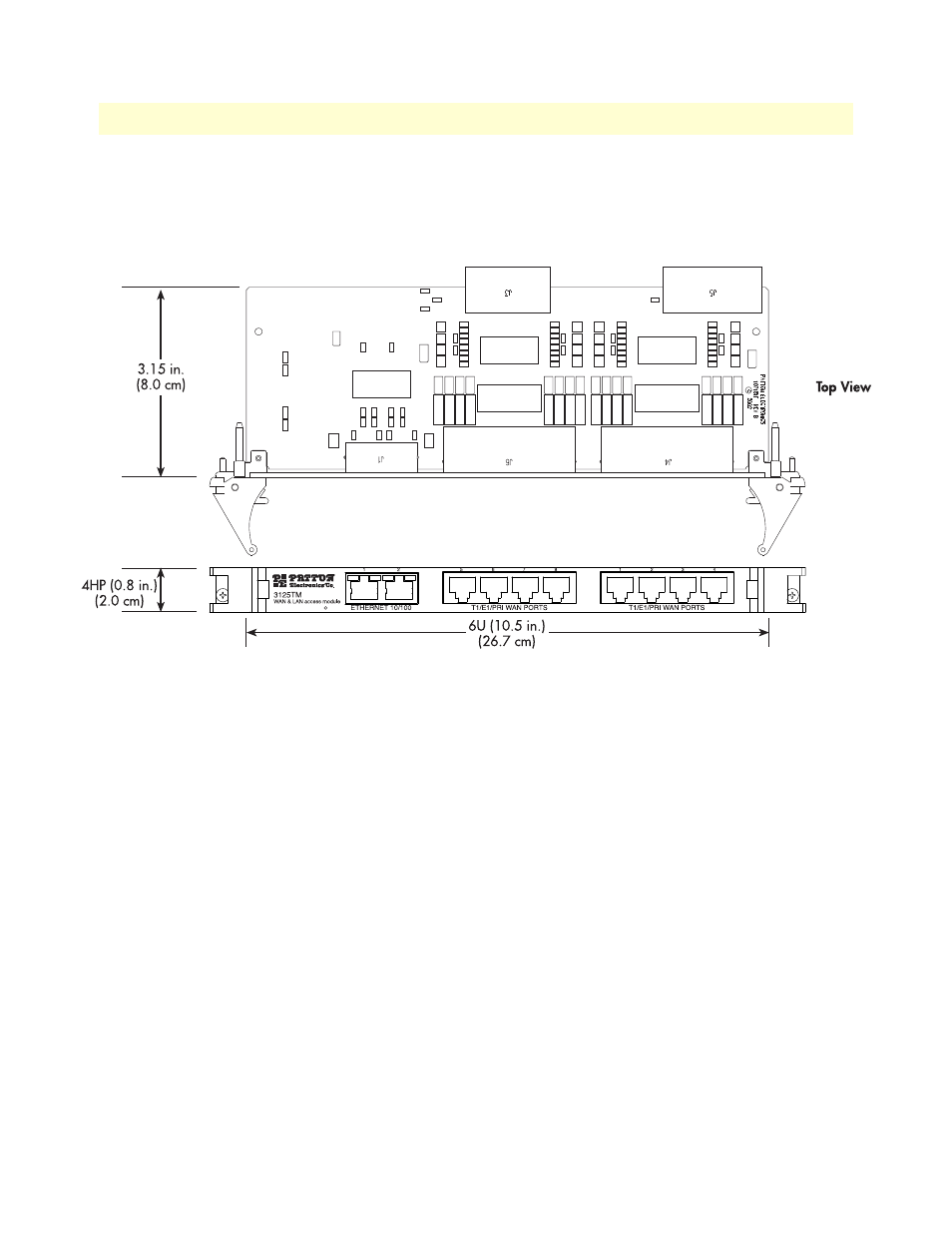

Figure 5. 3125TM physical dimensions
Security
• Internal database of 111 static users
• RADIUS Client supporting dual Authorization and Accounting servers
• Framed connections: PPP PAP & CHAP
• Unframed connections: User name login and password
• Dual SNMP/HTTP passwords for monitor and superuser access levels
• Packet filtering on dial-in user traffic and Ethernet port
Management services
• Out-of-Band RS-232 configuration port for management and control
• Remote software upgrade via FTP to internal FLASH memory
• SNMP version 1 configuration management
• Support for MIB-II (RFC-1213), DS1 MIB (RFC-1406), RIPv2 MIB (RFC 1389), Ethernet MIB (RFC-
1643), Frame Relay DTE MIB (RFC-1315) and Patton’s enterprise MIB (1768)
• System logging to configuration port, non-volatile FLASH, volatile RAM, SYSLOG Daemon, and
SNMP trap
• RADIUS Accounting
