MAINTENANCE
Seat Removal
1. Grasp one side of the seat
near the rear edge.
2. Pull upward abruptly to
disengage the under-seat
fasteners.
3. Remove the seat.
Side Panel/Footwell Removal
Remove the seat before removing a side panel.

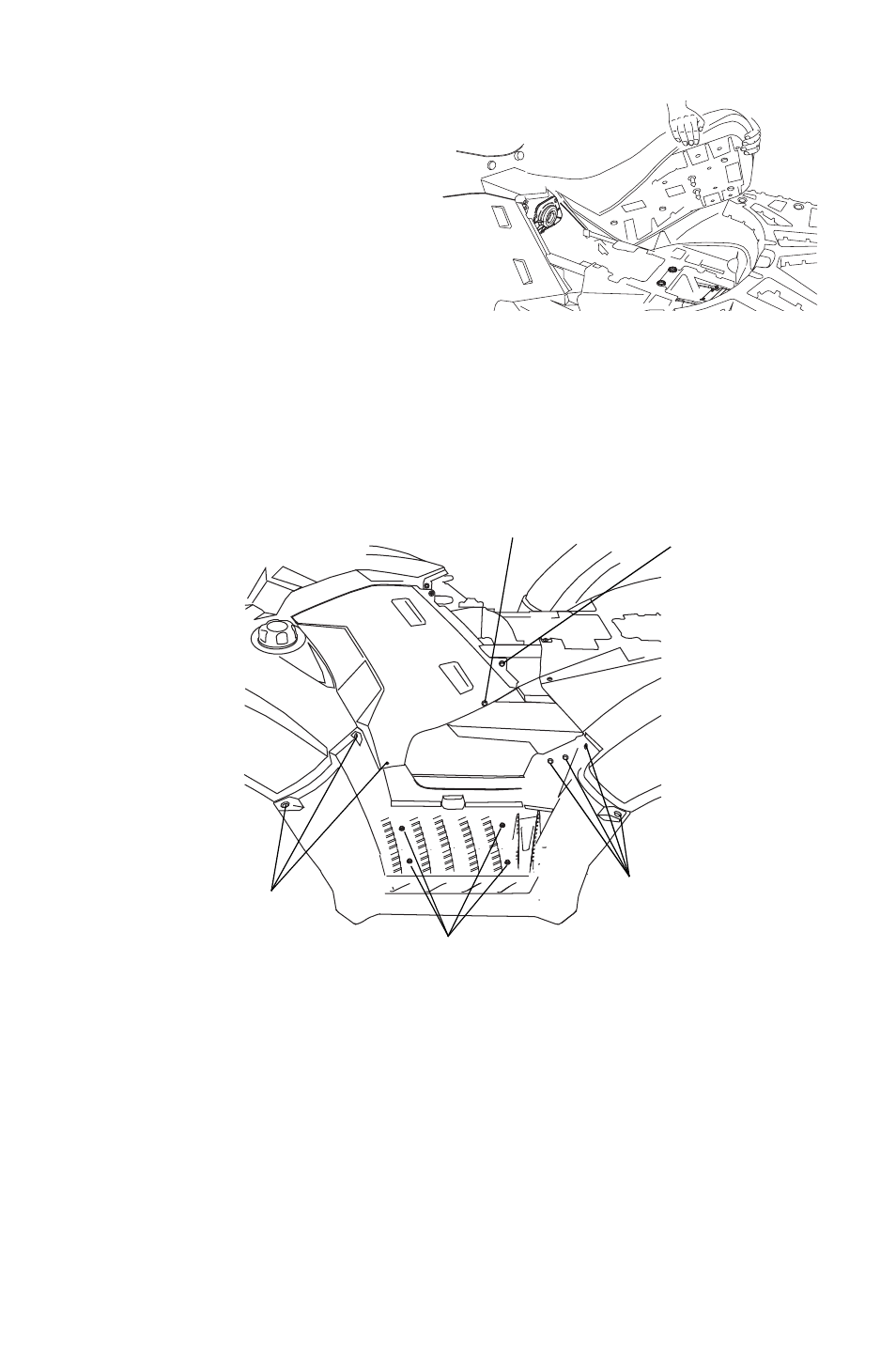

Remove the screws and rivets securing the side panel or footwell (see
illustration).
Plastic Rivet
Hex Head Screw
Plastic Rivet
Plastic Rivet
Torx Head
Screw
