ProForm PFBE1516.0 - Manual (Page 9)

9

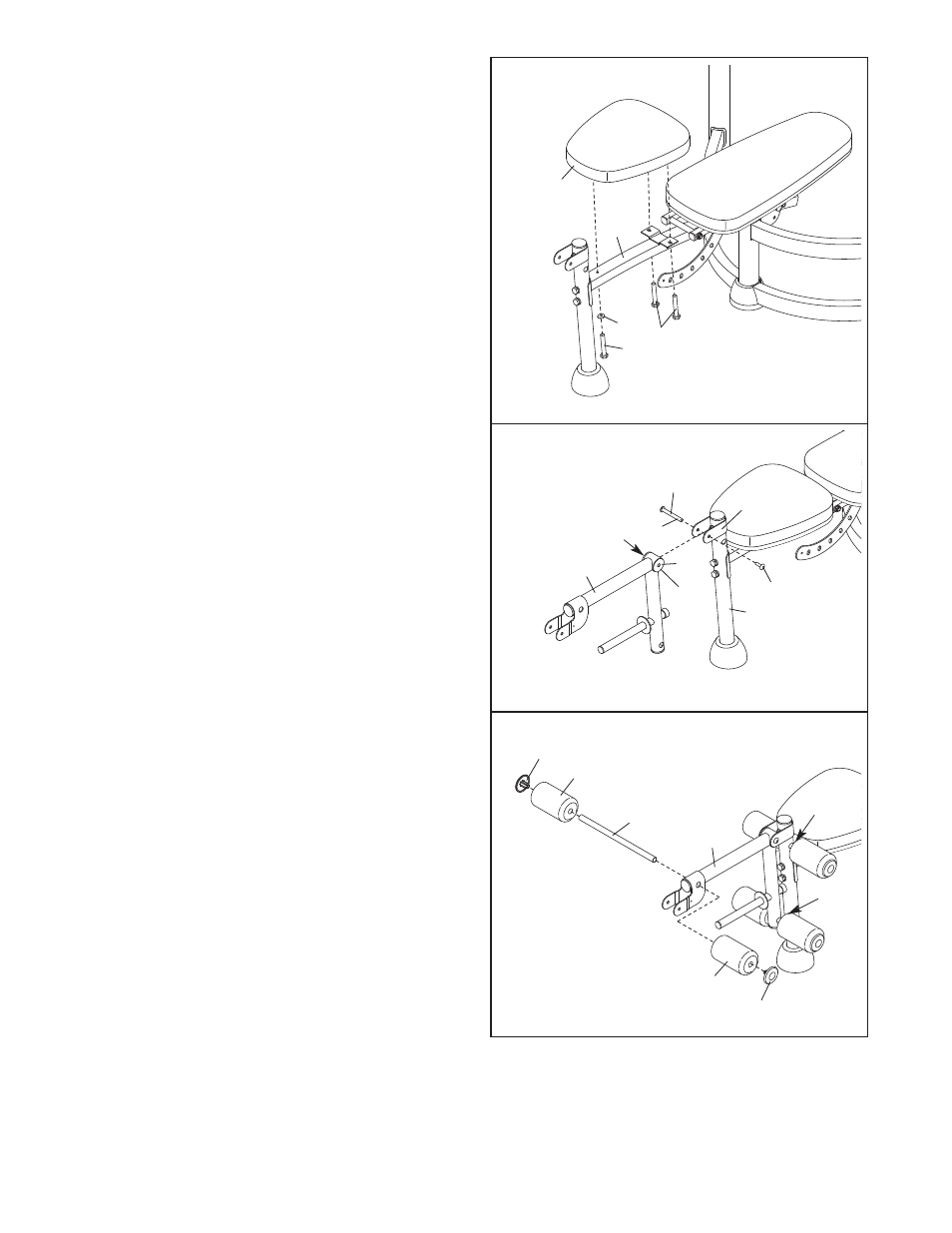

8. Orient the Seat (16) as shown. Attach the Seat to
the Seat Frame (2) with two M6 x 23mm Screws
(53), an M6 x 63mm Screw (54), and an M6
Washer (46).
46
54
53
16
2
8
9
49
30
Grease
Grease
Grease
Bracket
10
3
49
9. Apply grease to the barrel of the M10 x 57mm
Bolt Set (49) and to the face of each Bushing
(30). Attach the Leg Lever (10) to the Front Leg
(3) with the Bolt Set.
Make sure the barrel of the
Bolt Set is inserted through both sides of the
bracket on the Leg Lever.
10. Insert a Pad Tube (14) into the Leg Lever (10).
Slide a Foam Pad (40) onto each end of the Pad
Tube. Then, press a Pad Cap (24) into each
Foam Pad.
Repeat this step with the other two Pad Tubes
(14).
10
24
14
14
14
10
40
40
24
