ProForm PFBE1516.0 User Manual
Page 10

10

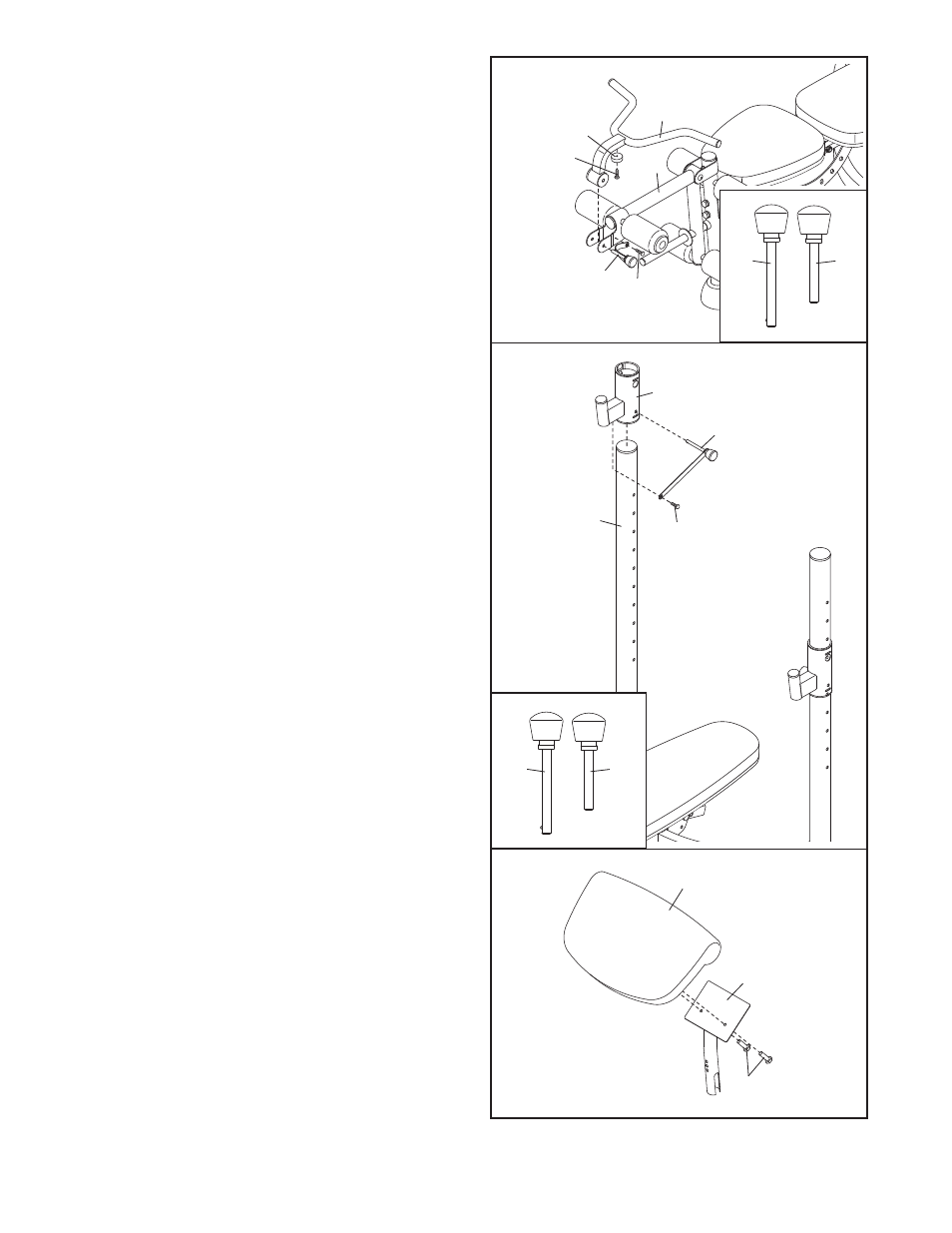

11. Attach the Curl Bumper (39) to the Curl Bar (11)
with an M4 x 12mm Self-tapping Screw (61).
See the inset drawing and identify the Curl Pin
(38). Attach the Curl Bar (11) to the Leg Lever (10)
with the Curl Pin. Attach the Curl Pin to the Leg
Lever with an M4 x 12mm Self-tapping Screw (61).
12.
See the inset drawing and identify the Pins
(34).
Slide a Weight Rest (13) onto the Right Upright
(7). Insert a Pin (34) through the Weight Rest and
the Right Upright. Next, attach the Pin to the
Weight Rest with an M4 x 12mm Self-tapping
Screw (61).
Repeat this step for the other side of the
weight bench.
13. Attach the Curl Pad (20) to the Curl Post (12) with
two M6 x 23mm Screws (53).
38
61
11
10
61
39
11
12
14. Make sure that all parts are properly tightened
before the weight bench is used. The use of the
remaining parts will be explained in ADJUST-
MENTS, beginning on the next page.
13
61
20
12
53
7
34
13
P
in
(3
4
)
C
u
rl
P
in
(3
8
)
P
in
(3
4
)
C
u
rl
P
in
(3
8
)
38
34
38
34
