PYLE Audio PLTVR5 - Manual (Page 7)

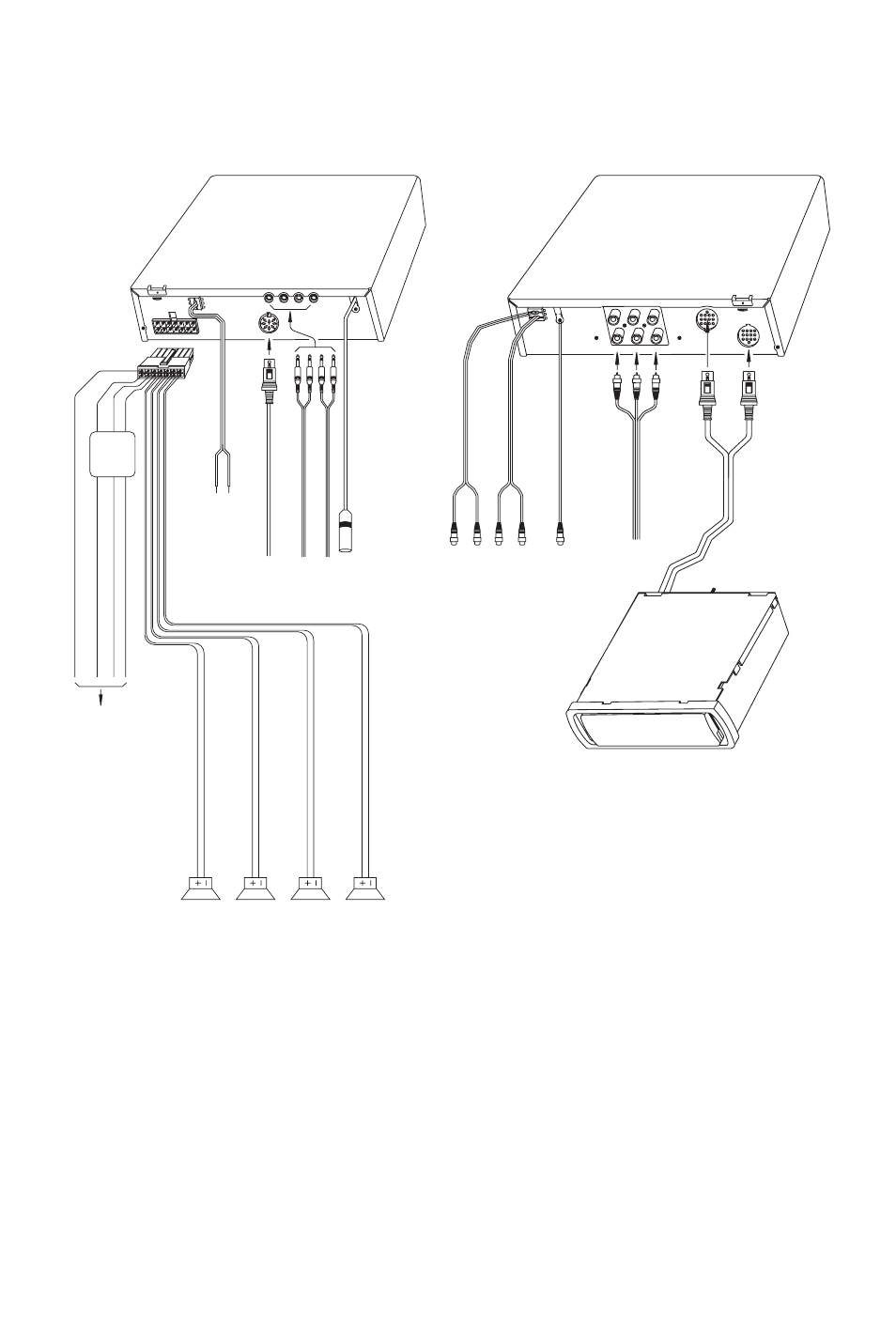

ELECTRICAL CONNECTION
CAUTION:
1. If the TV control grey cable is connected to car brake, when the car is running, you
cannot switch into TV mode.
2. To select CD changer’s sort:
Before installing the unit, connect the CD changer with the unit correctly and turn
on the power to make the unit work in CD changer state. If the operation normally,
the switch button’s position is right, otherwise, please dial the switch button to the
other position.
Note: How to select A or B in CDC SET is different according to the units and the
customers use.
7
RADIO/TV MAIN UNIT
(VIEW FROM REAR)
TV DIVERSITY ANTENNA INPUT
CDC INPUT
GREY TV CONTROL GREY/BLACK
TV DIVERSITY ANTENNA INPUT
RADIO ANTENNA INPUT
TO CD CHANGER
BLUE/WHITE POW
ANT
REAR
Rch SPK
VIOLET
VIOLET/BLACK
FRONT Rch SPK
GREY
GREY/BLACK
REAR
Lch SPK
GREEN
GREEN/BLACK
FRONT Lch SPK
WHITE
WHITE/BLACK
TO POWER SUPPLY
RED ACC YELLOW MEMOR
Y
BLACK GROUND
CHOKE
BOX
AV INPUT
VIDEO AUDIO–R AUDIO–L
AV1
AV2
RADIO CONTROL
FROM VIDEO/AUDIO SOURCE
RADIO CONTROL
TV MONITOR
RADIO/TV MAIN UNIT
(VIEW FROM FRONT)
DISPLAY UNIT
TV MONITOR
REAR RCA CABLE
(FOR RCA LINE VERSION ONL
Y)
75ohm RF WIRE (BLACK)
VIDEO OUTPUT
Rch RED
Lch WHITE
(GREY)
FRONT RCA CABLE
Rch RED
Lch WHITE
(BROWN)
BLACK CABLE
BLACK PLUG
BLACK/GREY CABLE
GREY PLUG
