4
KNOW YOUR GRASS CATCHER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE ASSEMBLING OR OPERATING YOUR GRASS CATCH ER.
Compare the illustrations with the carton contents to familiarize yourself with the parts before starting the assembly. Study
the operating instructions and safety precautions thoroughly to insure proper functioning of your Grass Catcher and to
prevent injury to yourself and others. Save this manual for future reference.
The operation of any tractor can result in foreign objects thrown into the eyes, which can result in
severe eye damage. Always wear safety glasses or eye shields be fore starting your trac tor and
while mow ing. We recommend a wide vision safety mask for over the spec tacles or stan dard safety
glasses.
UNPACKING INSTRUCTIONS
• Remove all parts and packing materials from carton.
• Fold fl aps to inside of carton and turn carton upsidedown
on fl oor of work area. To protect grass catcher cover
during assembly place cover upsidedown on overturned
carton.
• Check carton contents against list. Be sure all parts
are there.
CARTON CONTENTS:
(3) Container Tops
(3) Container Bottoms
(1) Upper Chute
(1) Lower Chute
(1) Support Post
NOTE: For ease of assembly, aside of your work area, lay out all hardware in the following groups. Each step of the as-
sembly instructions will identify the group needed for that step.
(1) Support Tube
(1) Mounting Bracket
(1) Cover Assembly
(1) Cover Seal
(1) Bag of Parts
(1) Owner's Manual
GROUP "A"
ASSEMBLY
LOCATION

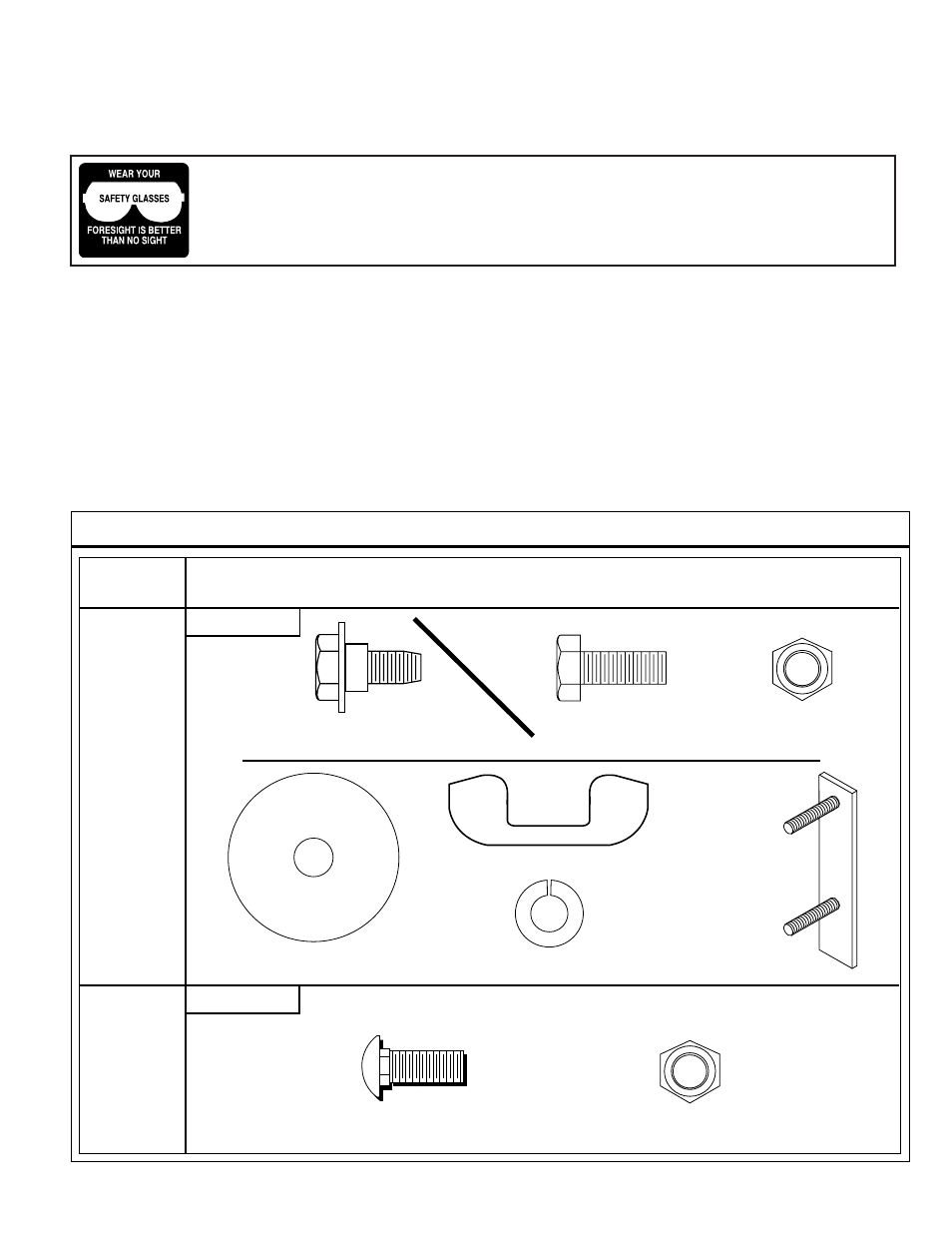

HARDWARE SHOWN ACTUAL SIZE
BAG OF PARTS CONTENTS
GROUP "B"
REAR
MOUNTING
BRACKET
AND
SUPPORT
TUBE
TO
DRAW BAR
(4) Shoulder Bolt 5/16 - 18 Self Tapping
SUPPORT
POST
TO
COVER
ASSEMBLY
(3) Carriage Bolt 5/16 - 18 x 3/4 (3) Locknut 5/16-18
(4) Bolt 5/16 - 18 x 3/4 (4) Locknut 5/16-18
(2) Washer 11/32 x 1-1/2 x 10 Ga. (2) Lock Washer 5/16
(2) Wing Nut
(1) Support Plate
NOT SHOWN FULL SIZE
