S3.45 Assembly and Maintenance Guide
page 30
1 2 3 4 5 6
17. Assemble Chest Press Seat
A. Attach the Long Support Tube and the Short
Support Tube to the Chest Press Upright using
one ½-inch x 5¼-inch bolt
two washers
one locknut
Finger tighten.
Note: The Stop Pad on the Long Support Tube
should be between the Pop Pin and the Support
Stop on the Chest Press Upright.
B. Ensure the Short Support Tube is in position as
shown in Step A and then wrench tighten, still
allowing movement.
CAUTION: If you move the Handlebars out of
the way for this step, be careful that they don’t
hit you.
C. Attach the Backpad to the Long Support Tube and
the Short Support Tube (note placement of screws)
using
three 3-inch bolts
three washers
Finger tighten and then wrench tighten.
D. Attach the Seat Pad to the Seat Stem using
two 1¼-inch bolts
two washers
Wrench tighten.

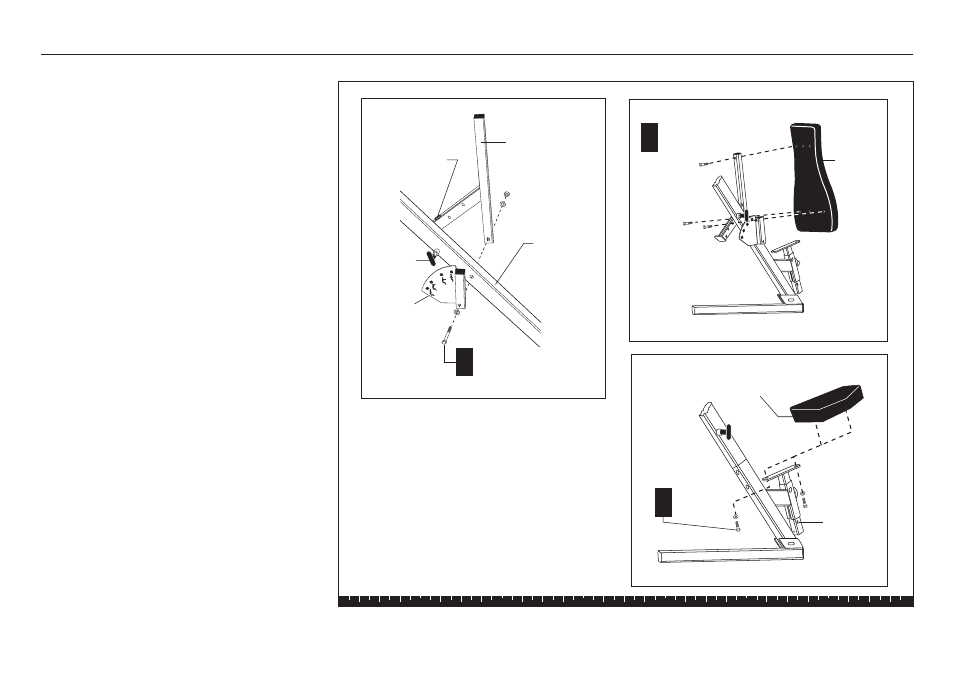

Step 17. Assemble Chest Press Seat
2 1
3
4
1
2
3
4
A
Long Support Tube
Short
Support
Tube
C
Backpad
D
Seat Pad
Seat Stem
1 - ½" x 5¼" bolt
2 - washers
1 - locknut
3 - 3" bolts
3 - washers
2 - 1¼" bolts
2 - washers
Stop Pad
Chest Press
Upright
Pop Pin
