S3.45 Assembly and Maintenance Guide
page 25
1 2 3 4 5 6
D. Attach the lower section of the Backpad to the
lower hole of the right Backpad Support Tube using
one 3¼-inch bolt
one washer
Finger tighten.
E. Attach the Leg Curl Handle to the holes at the top
of the Backpad Support Tubes and to the top of the
Backpad using
two 3¼-inch bolts
two washers
Note: Handles point down when fastened.
F. Wrench tighten all bolts from this step.
G. Attach the Calf Raise Block to the Leg Curl Seat
Upright using
one 4¼-inch bolt
two washers
one locknut

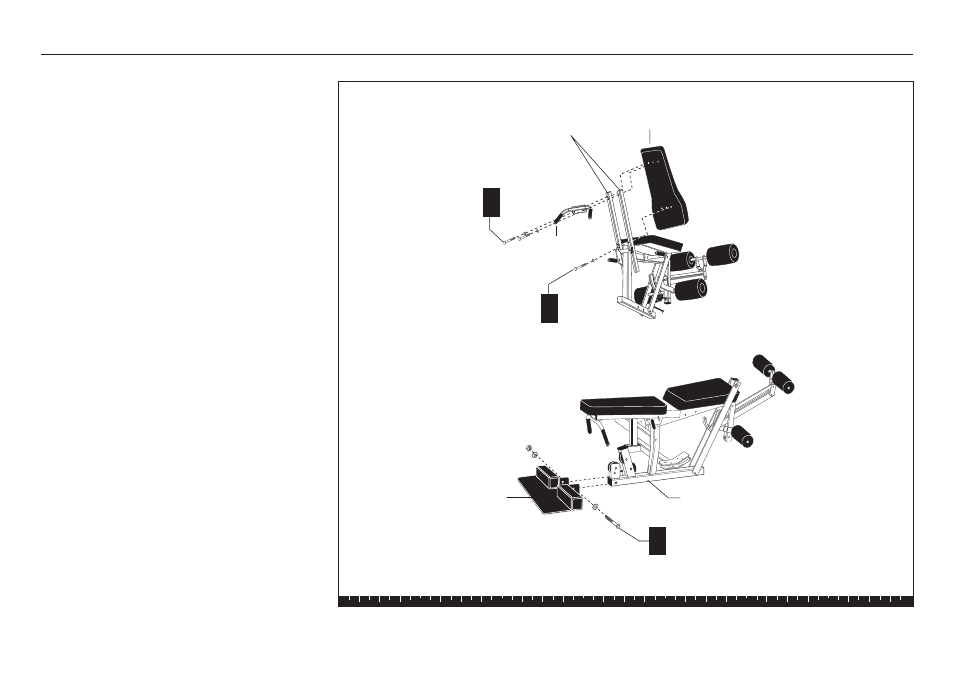

Step 13. Assemble Leg Curl Seat, Continued
D
E 2 - 3¼" bolts
2 - washers
1 - 3¼" bolt
1 - washer
Leg Curl
Handle
Backpad
G
Calf Raise Block
1 - 4¼" bolt
2 - washers
1 - locknut
Backpad Support
Tubes
Leg Curl Seat Upright
