DVD-V5000 DVD Player
RS-232 Command Protocol
If multiple commands are sent within the same String, the player returns a
separate status value upon completion of each command. A status value is a
character string with a termination code.
Example: ?C?F
⇒ 02
10260
When the command is at the end of the command string, the R within the
completion message is omitted.
Example: ST?F
⇒ 23005
(completion omitted)
Example: ?FST
⇒ 23005R
(not omitted)
4.7 Timing
A player needs a brief period after receiving a command before returning a
Status Value or “R ”. It is defined as follows:
T1 represents the time between the termination of the command string
received and the beginning of the command execution. It is
approximately 35ms maximum.
T2 represents the time for executing the command, depending upon the
command type and the player’s condition. In case of a status request
command such as “?F”, T2 requires less than 1ms.
T3 represents the time that is needed for transferring data (TxD) per byte.
It requires a maximum of 6ms per byte. In case of the return data for “?F”
request, a player is supposed to be back 8 bytes data, that is composed
of 7 digit Frame number and “”. In this case the transfer time of
each byte is not exactly the same with 6ms, it takes usually around 10ms
for transferring 8 bytes data total, and it takes less than 20ms.

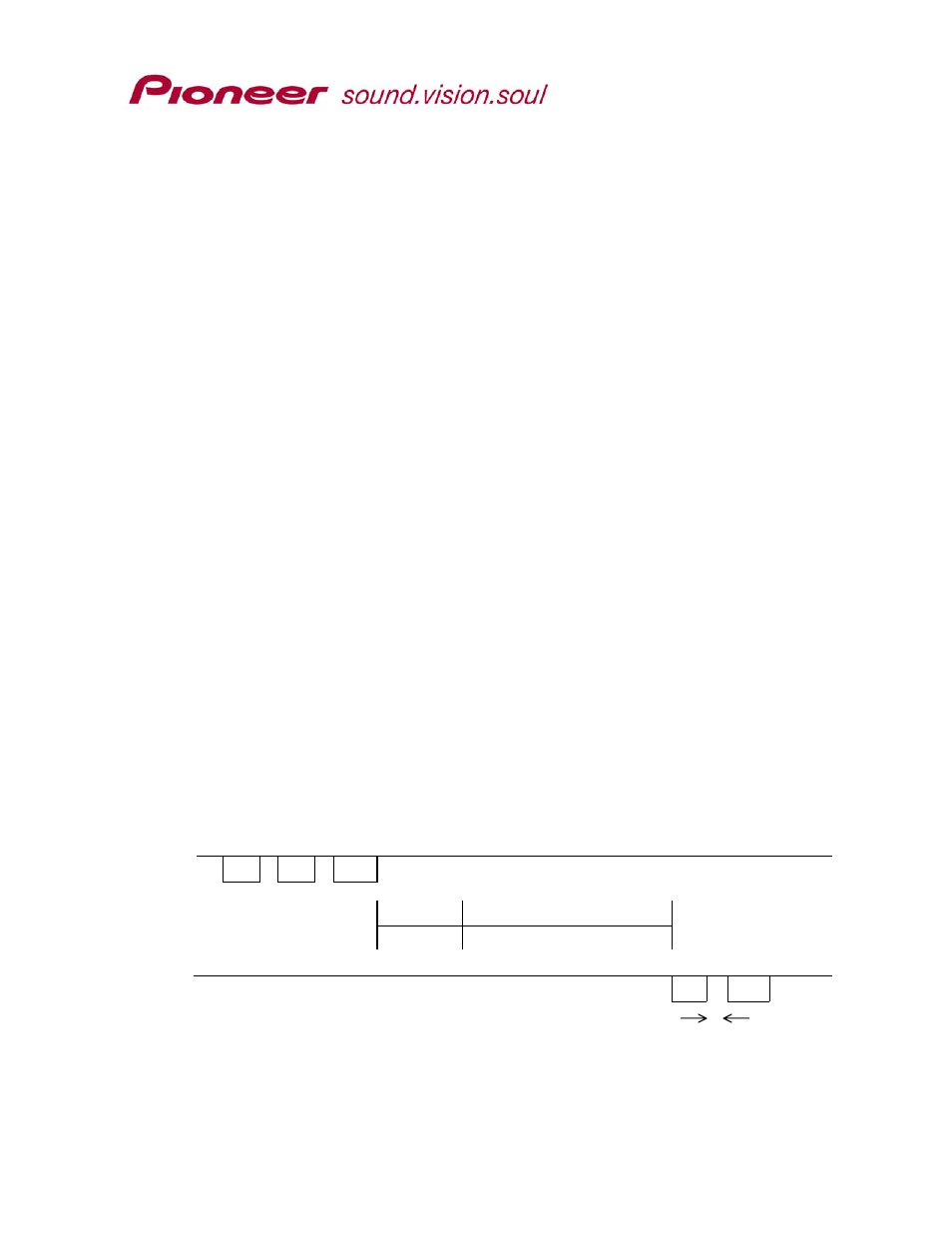

Example:
RxD
P L
T1 T2
Execution
TxD
R
T3
