Connecting up 02
9
En
Chapter 2
Connecting up

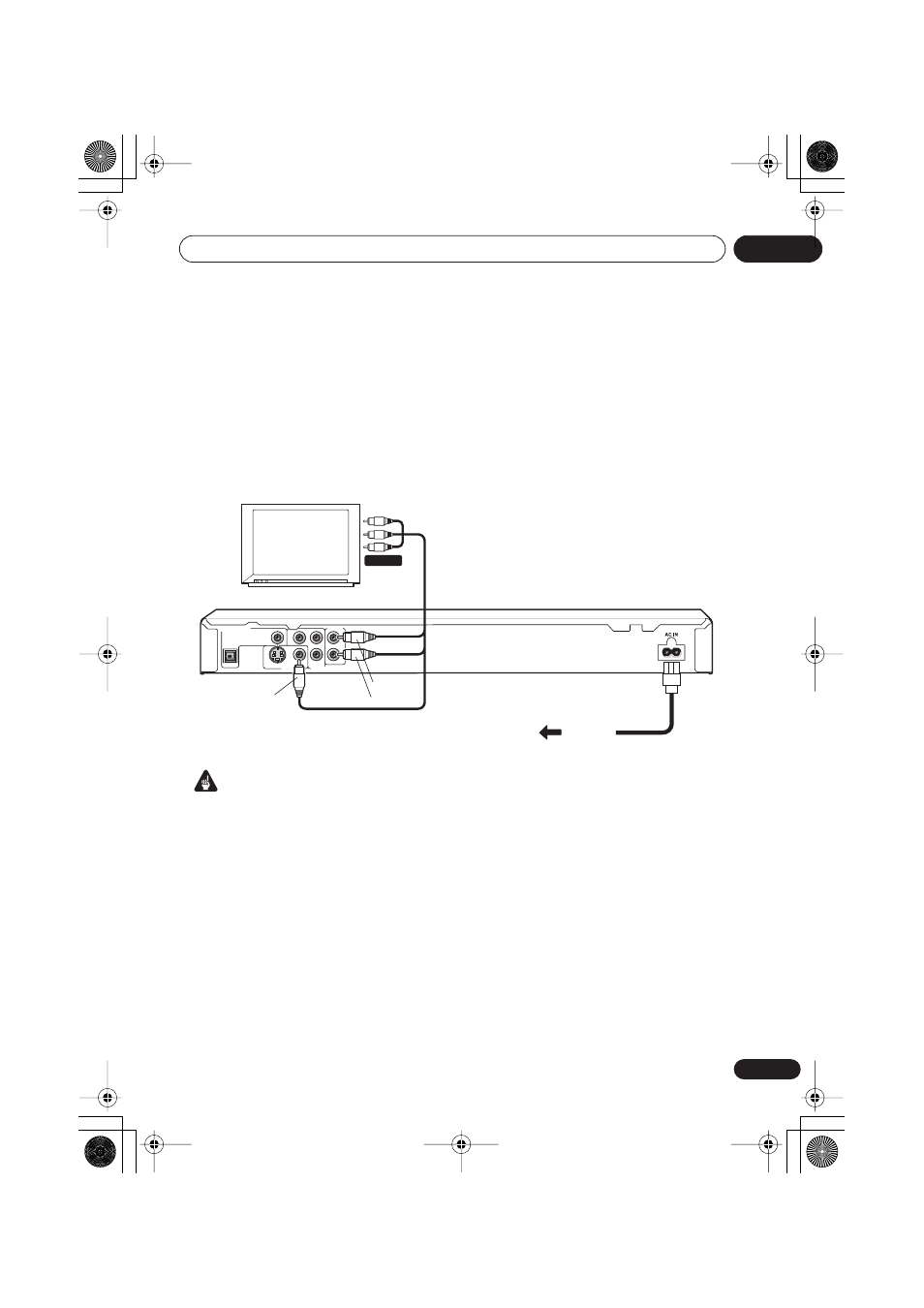

Easy connections
The setup described here is a basic setup that allows you to play discs using just the cables
supplied with the player. In this setup, stereo audio is played through the speakers in your TV.
Important
• This player is equipped with copy protection technology. Do not connect this player to your TV
via a VCR using audio/video or S-video cables, as the picture from this player will not appear
properly on your TV. (This player may also not be compatible with some combination TV/VCRs
for the same reason; refer to the manufacturer for more information.)
• When connecting to your TV as shown above, do not set the Component Out setting (see
Video Output settings on page 33) to Progressive .
DIGITAL AUDIO OUT
S
L
R
P R
P B Y
COAXIAL
COMPONENT VIDEO OUT
AUDIO OUT
VIDEO OUT
OPTICAL
To power
outlet
Yellow
White
Red
TV
A/V IN
