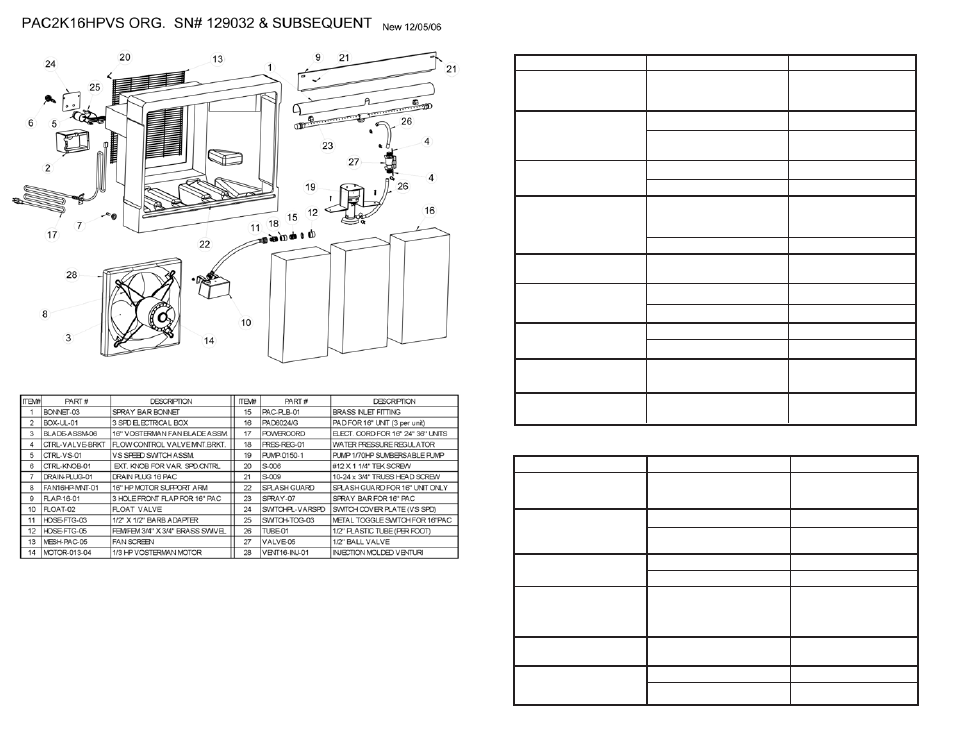

Port-A-Cool PAC2K16HPVSFC User Manual
Page 11

11
2009 PORT-A-COOL® Unit Electric Models
30
2009 PORT-A-COOL® Unit Electric Models
BELT DRIVE MODELS
DIRECT DRIVE MODELS
pROBLEM
CHECK
SOLuTIOn
Fan motor won’t run and
Power cord, switches,
Check switch connection
makes no sound.
circuit breaker, etc.
Reconnect power
cord, reset breaker.
Fan motor won’t run and
Blade in contact with shroud
Check mounting bolts.
makes a humming sound.
Motor stalled
Replace motor.
(will not turn by hand)
Breaker trips or fuse blows when
Motor stall (as above).
Replace motor.
fan is started.
Other items on circuit.
Remove other items.
Motor overheating and shutting
Inlet air
Provide minimum
off and restarting
obstructed or
36 inch
several minutes later.
too close to wall.
inlet clearance.
Fan motor won’t run and switch
Faulty motor.
Replace motor.
makes soft clicking sound.
Switch making good contact.
Replace switch.
Fan motor won’t run and has a Start capacitor leaking from cover.
Replace capacitor.
burning smell.
Motor stall (as above).
Replace motor.
pROBLEM
CHECK
SOLuTIOn
Fan motor won’t run and
Power cord,
Check switch connection
makes no sound.
switches, circuit breaker, etc.
Reconnect power,
reset breaker.
Fan motor won’t run and
Blade in contact with shroud
Check mounting bolts.
makes a humming sound.
Motor stalled
Replace motor.
(will not turn by hand)
Breaker trips or fuse blows
Motor stall (as above).
Replace motor.
when fan is started.
Other items on circuit.
Remove other items.
Motor overheating and
Inlet air
Provide minimum
shutting off and restarting
obstructed or
36 inch
several minutes later.
too close to wall.
inlet clearance.
Switch making good contact.
Faulty motor.
Replace motor.
makes soft clicking sound.
Replace switch
Fan motor won’t run and has
Start capacitor leaking from cover.
Replace capacitor.
a burning smell and hums.
Motor stall (as above).
Replace motor.
Fan blade doesn’t turn and
Fan Belt, loose or broken.
Tighten or replace fan belt.
unit makes squealing sound.
Fan pulley spinning on shaft.
Tighten pulley set screw.
Fan belts do not last very long.
Motor and fan pulleys
Realign motor and mount.
misaligned
Fan will not reach speed but
Capacitor (where visible) and
Replace capacitor or motor.
turns and makes humming sound.
motor electrical connections.
