Loop Out Connector

The Right and Left Loop Out jacks provide connections to route the same input signals from
your preamplifier or surround controller to an additional power amplifier. In most instances,
you won't use the loop out feature so you can skip this section.

What You’ll Need:

• One standard pair of shielded interconnect cables with

RCA plugs

• An additional amplifier

Before Connecting

Leave the AC cord on the A 23 disconnected from the wall until you have made all of
the connections in the system to prevent any surprise burst of sound.

Make sure that your interconnect cables are long enough so they are not strained or
stretched once they are connected.

To Connect

Plug one end of the cable to the right channel

Loop Out

jack on the A 23.

Plug the other end of this cable to the right channel input jack on the other power amplifier.

Repeat steps 1 and 2 for the left channel.

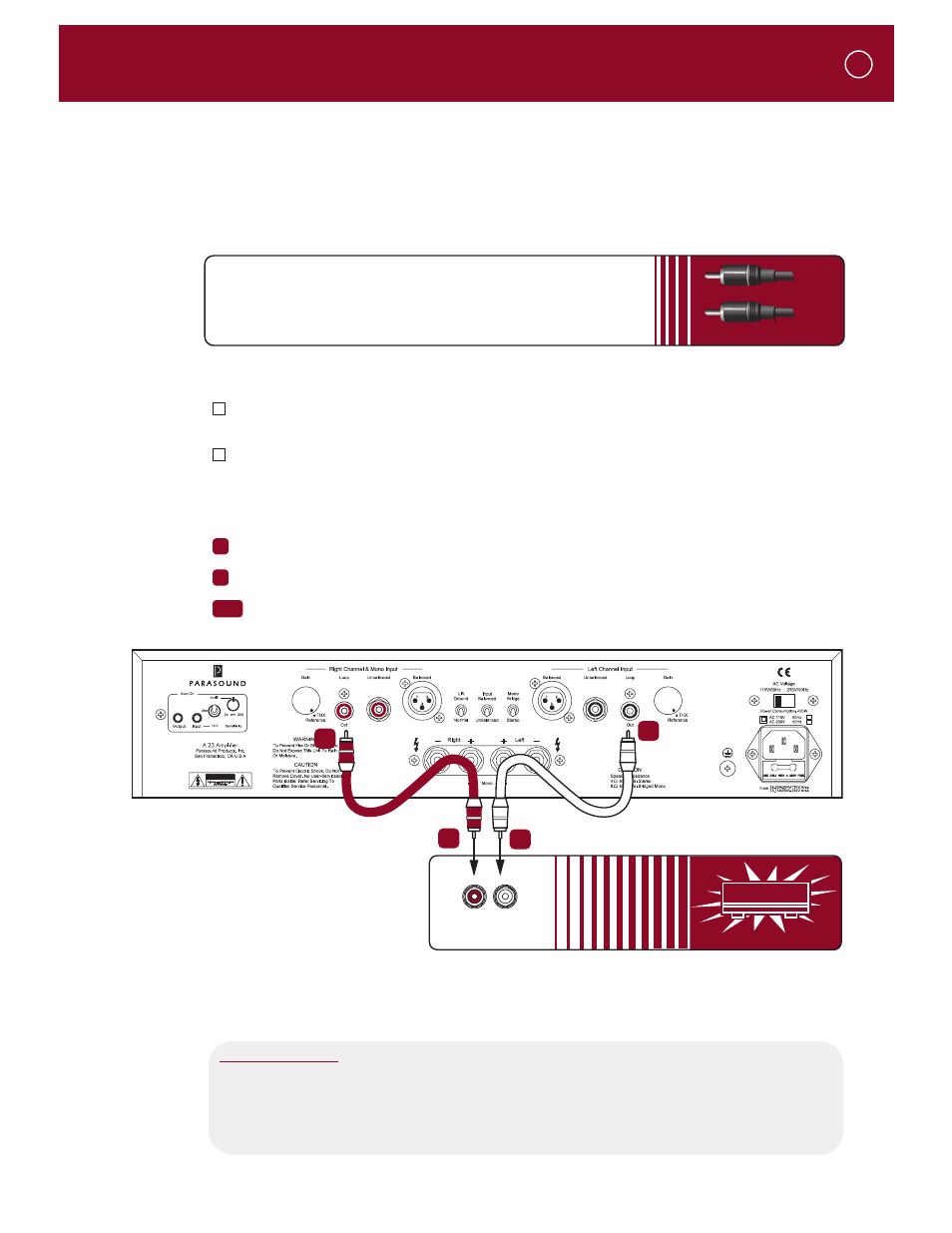

CONNECTING THE LOOP OUT JACKS ON THE A 23 TO
ANOTHER POWER AMPLIFIER’S INPUTS

4

1

2

YOU SHOULD KNOW

These jacks eliminate the need for two “Y” connector cables to split the outputs from the two
source channels between your A 23 and another amplifier. The A 23

Loop Out

jacks provide

the same signals that are received at either the balanced or the unbalanced inputs. Refer to
Loop Out Jacks in the Technically Speaking section for more information about when to use
the

loop out jacks.

3

2

4

Right

Left

COMPONENTS

POWER AMP

INPUTS

C A U T I O N

1

RCA Plugs

Right

Left

3

&

4
