ParaBody 441101 440 - Manual (Page 5)

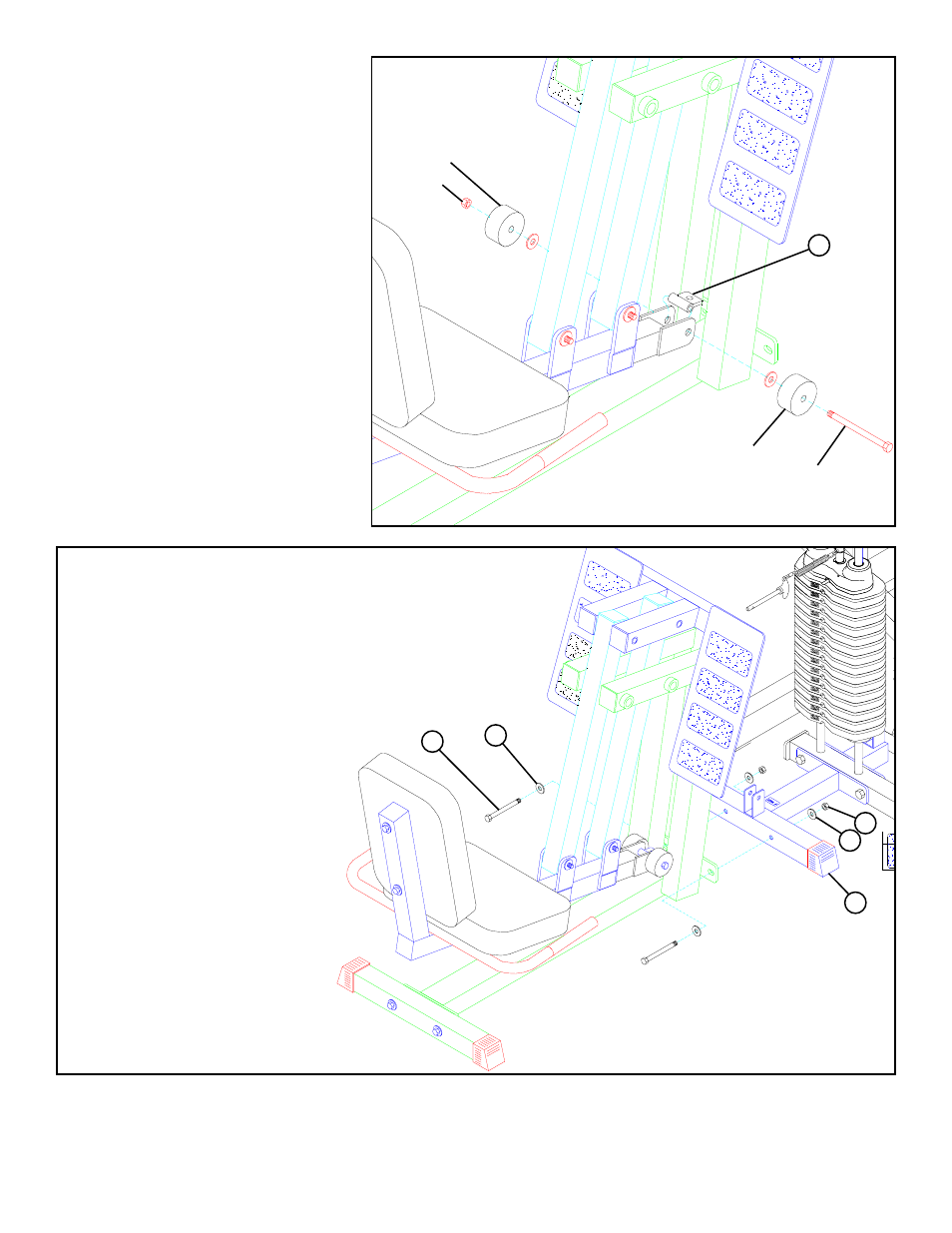

FIGURE 7
FIGURE 6
STEP 6
• Attach CABLE SWIVEL (3) to the
ADJUSTMENT TUBE on the 100 LEG
PRESS using the existing previously removed
3/8 X 4-1/2” BOLTS, WASHERS, 2”
WHEELS AND NUT. (Note: Securely
tighten, then back off 1/4 turn to allow the
CABLE SWIVEL & WHEELS to rotate
freely.) See FIGURE 6.
5
2” WHEEL
3/8 X 4-1/2” BOLT
NUT
2” WHEEL
STEP 7
• Securely fasten the 100 LEG PRESS to the FRONT LEG (1) using two 3/8 X 3” BOLTS (14), four 3/8” WASHERS (10), and two
3/8” LOCKNUTS (11) as shown in FIGURE 7.
1
10
10
11
3
3/8 X 3” 14
