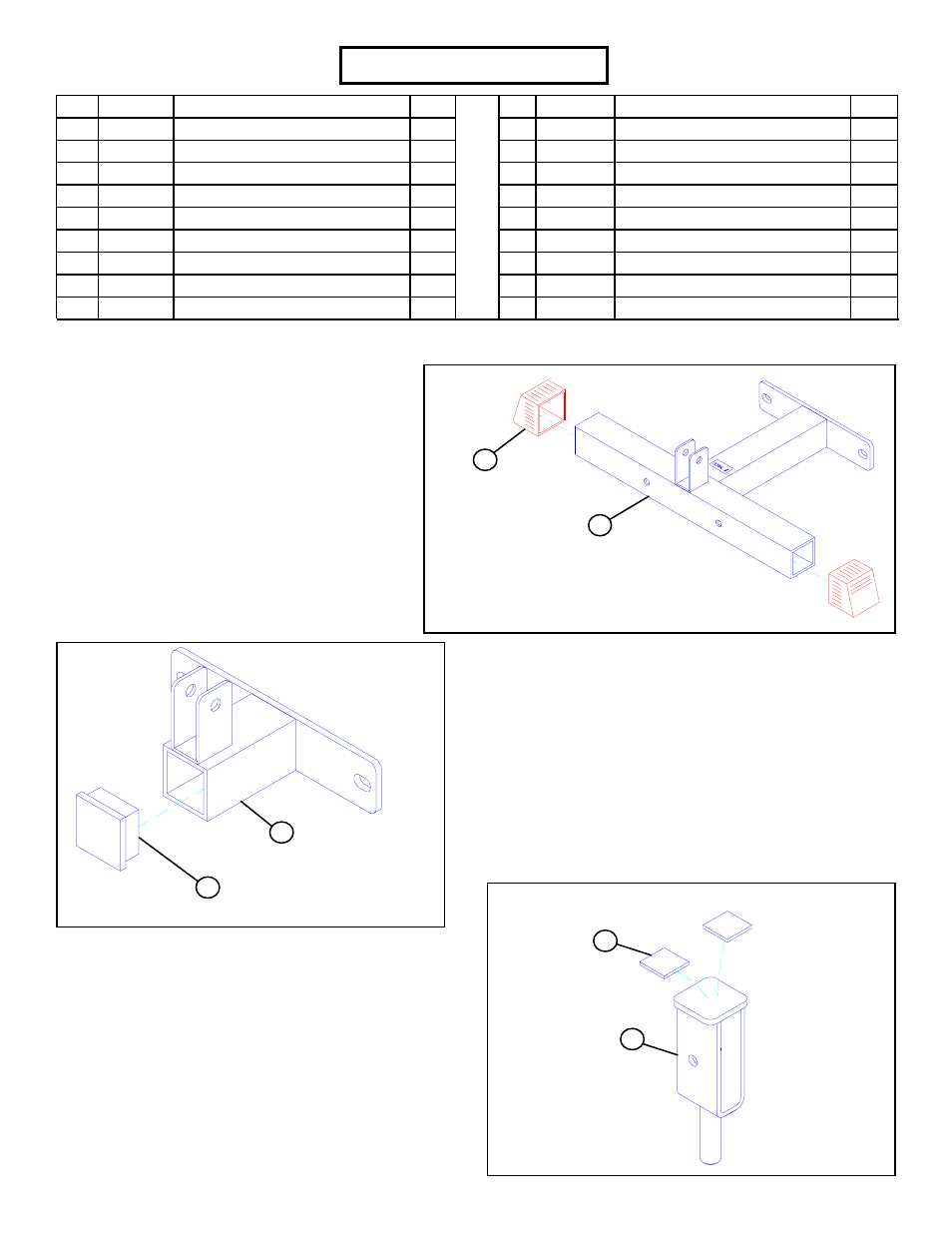

FIGURE 1
STEP 1
• Slide two COVER CAPS (7) over the FRONT LEG (1)
as shown in FIGURE 1
1
7
PARTS LIST
3
PART #
6686608
6693902
6694002
6694208
3116201
6405201
6467001
3108102
6140701
KEY
1
2
3
4
5
6
7
8
9
QTY
1
1
1
1
2
1
2
1
2
PART #
3102501
3102802
3102801
3102924
3102904
3102918
7032303
6694401
DESCRIPTION
3/8” WASHER
3/8” LOCKNUT
1/2” LOCKNUT
3/8 X 1-3/4” BOLT
3/8 X 3” BOLT
1/2 X 3-1/4” BOLT
110-3/4” CABLE ASSY
82-1/2” CABLE ASSY
QTY
4
5
2
3
2
2
1
1
DESCRIPTION
FRONT LEG
PULLEY BRACKET
CABLE SWIVEL
BASE CONNECTION
3-1/2” PULLEY
2” SQ. END CAP
COVER CAP
QUICK DISCONNECT LINK
GLIDE 1 X 1”
KEY
10
11
12
13
14
15
16
17
FIGURE 2
4
6
STEP 2
• Slide one 2” SQ. END CAP (6) into the BASE CONNECTION (4)
as shown in FIGURE 2.
FIGURE 3
9
2
STEP 3
• Attach two 1 X 1” GLIDES (9) to the top of PULLEY BRACKET
(2) as shown in FIGURE 3.
NOTE: The LEG PRESS ATTACHTMENT (100101) must be assembled before connecting it to the
PARABODY 440 HOME GYM
