6

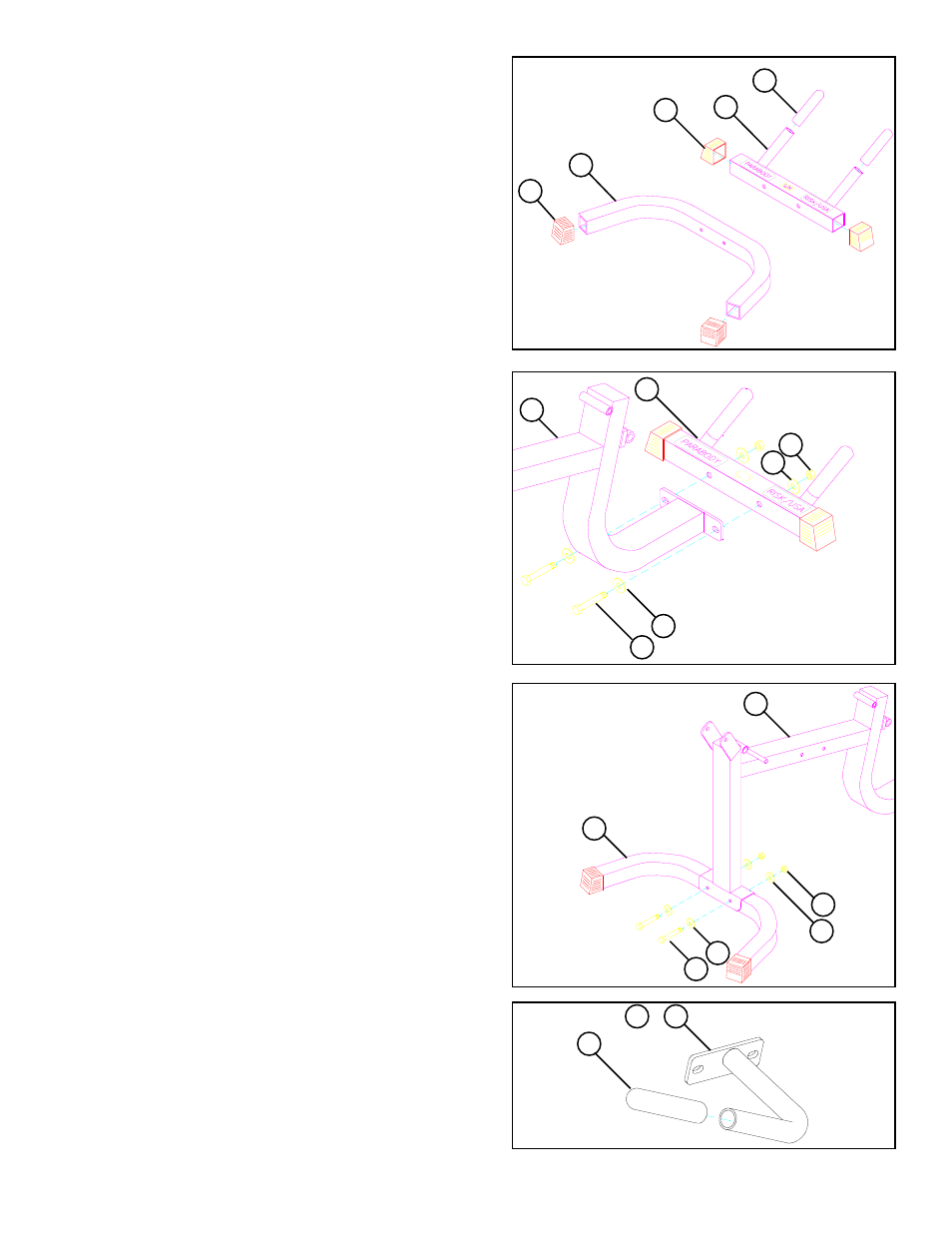

Insert four COVER END CAPS (37) into
the ends of REAR BASE LEG (12) and
FRONT BASE SUPPORT (1). See FIGURE
1.
STEP 1 :
Securely assemble REAR BASE LEG (12)
to LEG FRAME (11) using two 3/8 X 3”
BOLTS (20), four 3/8” FLAT WASHERS
(24), and two 3/8” NYLOCK NUTS (25).
See FIGURE 2. STEP 3 :
Securely assemble FRONT BASE SUP-
PORT (1) to LEG FRAME (11) using two
3/8 X 3” BOLTS (20), four 3/8” FLAT
WASHERS (24), and two 3/8” NYLOCK
NUTS (25). See FIGURE 3. STEP 4 :
Slide two 1-1/4 X 5" GRIPS (36) over
RIGHT LEG EXT HANDLE (9) & LEFT
LEG EXT HANDLE (10). See FIGURE 4. STEP 5 :
FIGURE 1
37 12
36
37
1
12
24
25
24
11
FIGURE 2
24
3/8 X 3” 20
24
25
11
1
FIGURE 3
FIGURE 4
9
36
10 &
Slide two 1-1/4 x 5” GRIPS (36) over tubes
on REAR BASE LEG (12). See FIGURE
1. STEP 2 :
20 3/8 X 3”
