Displays & Controls

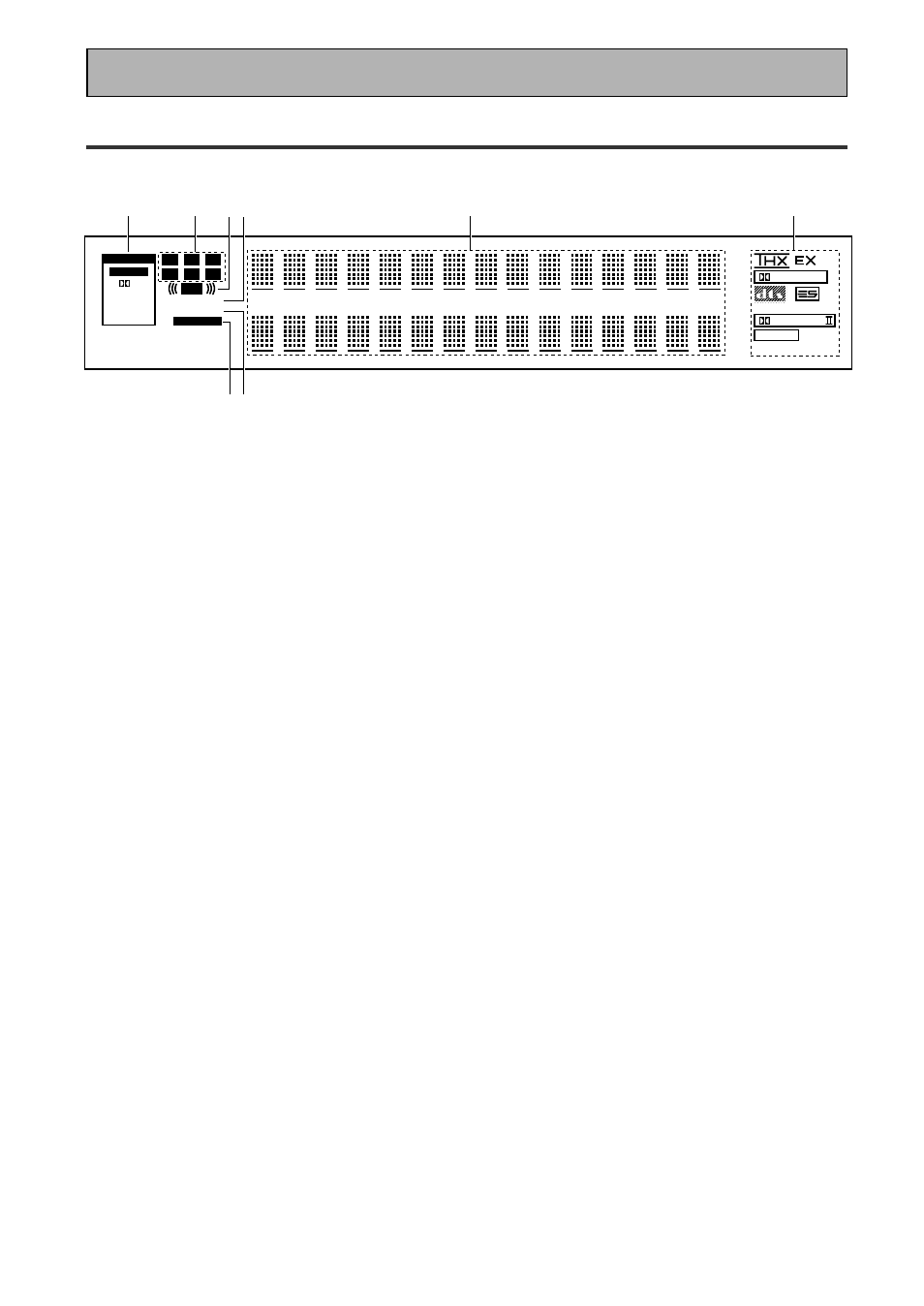

Display
All the display information is explained and/or referenced here.
6 Digital format indicators
2 DIGITAL: Lights when a Dolby Digital signal is
detected.
DTS: Lights when a DTS signal is detected.
MPEG: Lights when an MPEG signal is detected.
THX: Lights when the HOME THX mode is
selected.
EX: Lights during Surround EX matrix processing.
ES: Lights when a decoding DTS ES audio.
DISC: Lights during DTS ES discrete processing.
MTRX: Lights during DTS ES matrix processing.
2 PRO LOGIC II: Lights during Dolby Pro Logic II
processing.
NEO:6: Lights during NEO:6 processing.
2CH PLAYBACK Lights during two-channel
playback.
7 Speaker indicators
Light to indicate the current speaker system, A
and/or B.
8 TAPE 2 indicator
Lights when the TAPE 2 monitor is on.
1 SIGNAL SELECT indicators
Light to indicate the input signal you selected.
ANALOG: Lights when an analog signal is
selected.
DIGITAL: Lights when a digital signal is selected.
2RF: Lights when an 2 RF signal is selected.
AUTO: Lights when the amplifier is set to select
the input signal automatically.
2 Program Format indicators
For Dolby Digital, MPEG or DTS sources :
These indicators change according to which
channels are active in the source. When all
three LS (left surround), S (surround) and RS
(right surround) light at the same time it means
a source with a 6.1ch playback flag is being
used.
L – Left front channel
C – Center channel
R – Right front channel
LS – Left surround channel
S – Surround channel (mono)
RS – Right surround channel
LFE – Low frequency effects channel
3 ((( ))) – Lights when LFE signal is input
4 Analog level indicators
OVER – This lights if the signal is in danger of
distorting for analog source signals. Press
INPUT ATT on the front panel to lower the
signal level.
ATT – Lights when INPUT ATT is used to
reduce the level of the analog source signal.
5 Character display
Shows current mode, status, etc.
DIGITAL
PRO LOGIC
2ch PLAYBACK
MPEG
DISC MTRX
Neo :6
OVER ATT
RDS RF ATT
SP AB
L
LFE
TAPE 2
C R
L S S R S
3
E N O
SIGNAL
AUTO
RF
DIGITAL
ANALOG
1 2 5 6 3 4
7 8
