545192174
4/15/09
Replaces
545192174 - 4/01/09 Page:

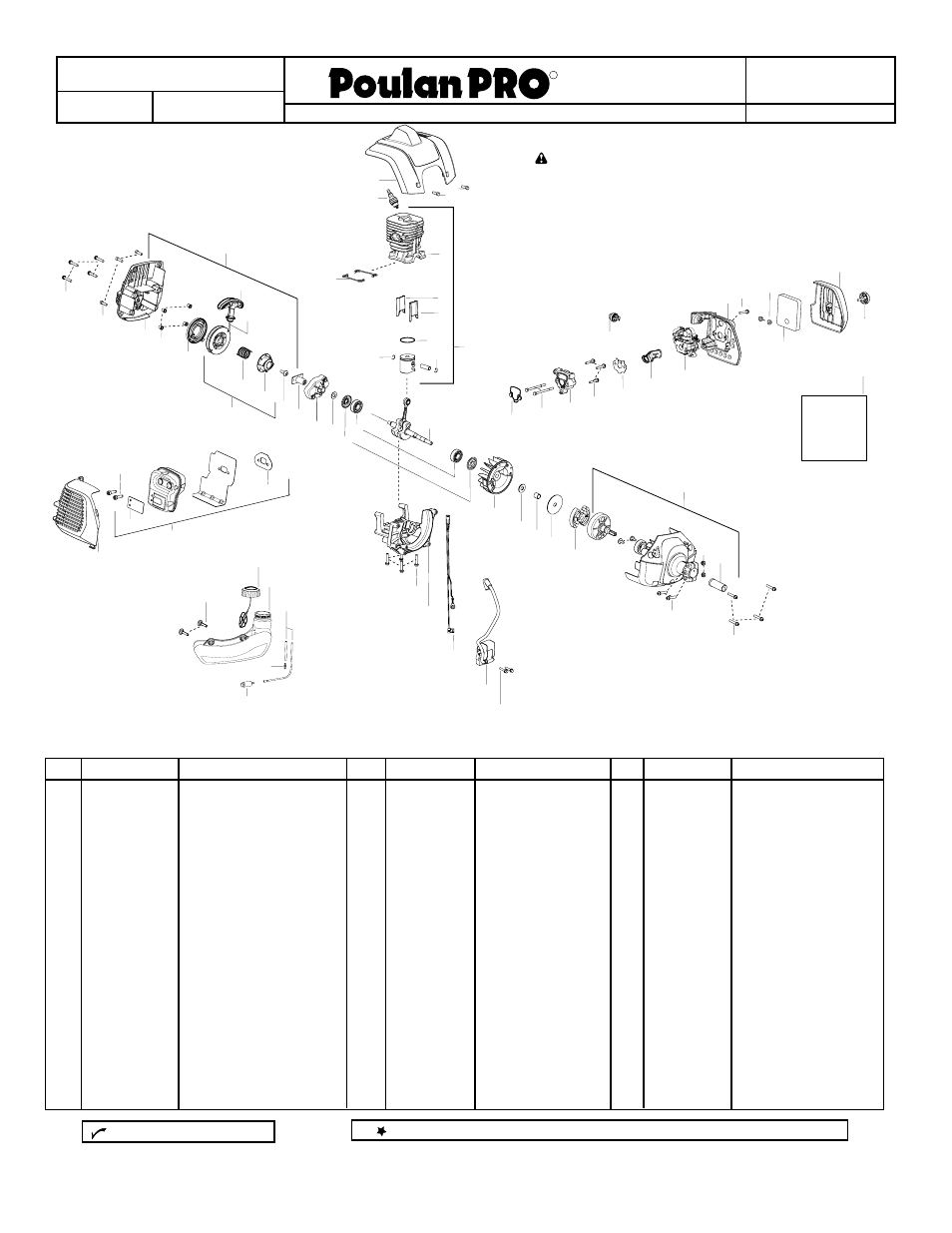

PARTS LIST
R
PP033 (US/CAN)
2
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
1. 545177001 Cover-Airbox
2. 530016101 Nut-Carb. Screw
3. 530016301 Screw 8-32
4. 545176901 Base-Airbox
5. 530047721 Purge Bulb
6. 545008046 Kit-Piston/Cyl.
(Incl. 7,8,9,10,11)
7. 545194801 Retainer-Piston pin
8. 545194601 Ring-Piston
9. 545194901 Insert-Front Transfer Port
10. 545195001 Insert-Rear Transfer Port
11. 545181801 Cylinder-Machined
12. 530016449 Screw M4 x1.75 x 16mm
13. 545156401 Cover-Top
14. 952030249 Spark Plug (RCJ- 6Y)
15. 545008044 Seal-Cylinder(Kit)
16. 545190701 Assy-Shroud Rear
(Incl. 17,18,21,22,23,24,27)
17. 545208401 Handle-Starter
18. 545029901 Kit-Rope
19. 530015897 Screw M4 x .8 x 25mm
20. 530016449 Screw M4 x 1.75 x 16mm
21. 545190601 Housing-Starter w/eyelet
22. 545185301 Spacer
23. 545008013 Kit-Starter Spring
46. 545191601 Assy-Leadwire
47. 545189701 Module-Ignition
48. 530016357 Screw 8-32
49. 545120401 Assy-Flywheel
50. 530016463 Washer
51. 530057852 Spacer-Flywheel
52. 530094189 Washer-Clutch
53. 545008038 Kit-Clutch Assy.
54. 530015774 Screw 10-24 x 1”
55. 530015897 Screw M5 x 25mm
56. 545186401 Guide-Clutch Drum
57. 530015768 Locknut 10-24
58. 545190801 Assy-Fan Hsg (Incl.54,56,57)
59. 545008047 Kit-Crankshaft
60. 545008044 Seal-Cyl./Adapter (kit)
61. 530016418 Bolt M5 x .80
62. 545194501 Adaptor-Carburetor
63. 530016441 Screw .20 x 32
64. 545008044 Gasket-Carb./Adapter(kit)
65. 545190501 Boot-Carb.
66. 545008042 Kit-Carburetor
67. 545195901 Filter-Air
68. 545188801 Assy-Airbox Knob
69. 545008044 Kit - Gasket
(Incl. 15,31,37,60,64)
= New Part Number For This IPL = Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
24. 545008049 Kit-Pulley(Incl 25,26)
25. 545188301 Spring-Starter Hub
26. 545188001 Hub-Starter
27. 545112801 Screw M6
28. 545188201 Coupling-Starter
29. 545188701 Assy-Starter Cup
30. 530015828 Washer-Flat
31. 545008044 Seal-Crankshaft (kit)
32. 545013401 Bearing-Crankshaft
33. 530058982 Bolt-Muffler
34. 545156301 Guard-Muffler
35. 545008070 Kit-Spark Arrestor
36. 545180701 Assy-Muffler
(Incl. 33,35,37)
37. 545008044 Gasket-Muffler (kit)
38. 530016445 Screw-Tank Retainer
39. 545215901 Assy-Fuel Cap w/ret.
40. 545182101 Assy-Tank
(Incl. 39,41,42,43)
41. 530069599 Kit-Fuel line
42. 530023877 Fitting-Fuel Line
43. 530095646 Assy-Fuel Pickup
44. 530015897 Screw-m5x25mm
45. 545181901 Crankcase
12
14
13
11
10
8
7 7
18
17
19
20
21
22
23
25
26
27
30
31
32 59
60
61
62
63
6
9
64
65
5
66
67
68
69
1
4
2
3
33
35
39
44
45
40
38
41
47
48
49
50
51
52
53
54
55
56
57
58
43
42
28
29
15
24
16
46
37
36
34
Kit -
Gasket
