Replaces

545192174 - 4/01/09

NOTE : Illustration may differ from actual model due to design changes.

545192174

4/15/09

Page:

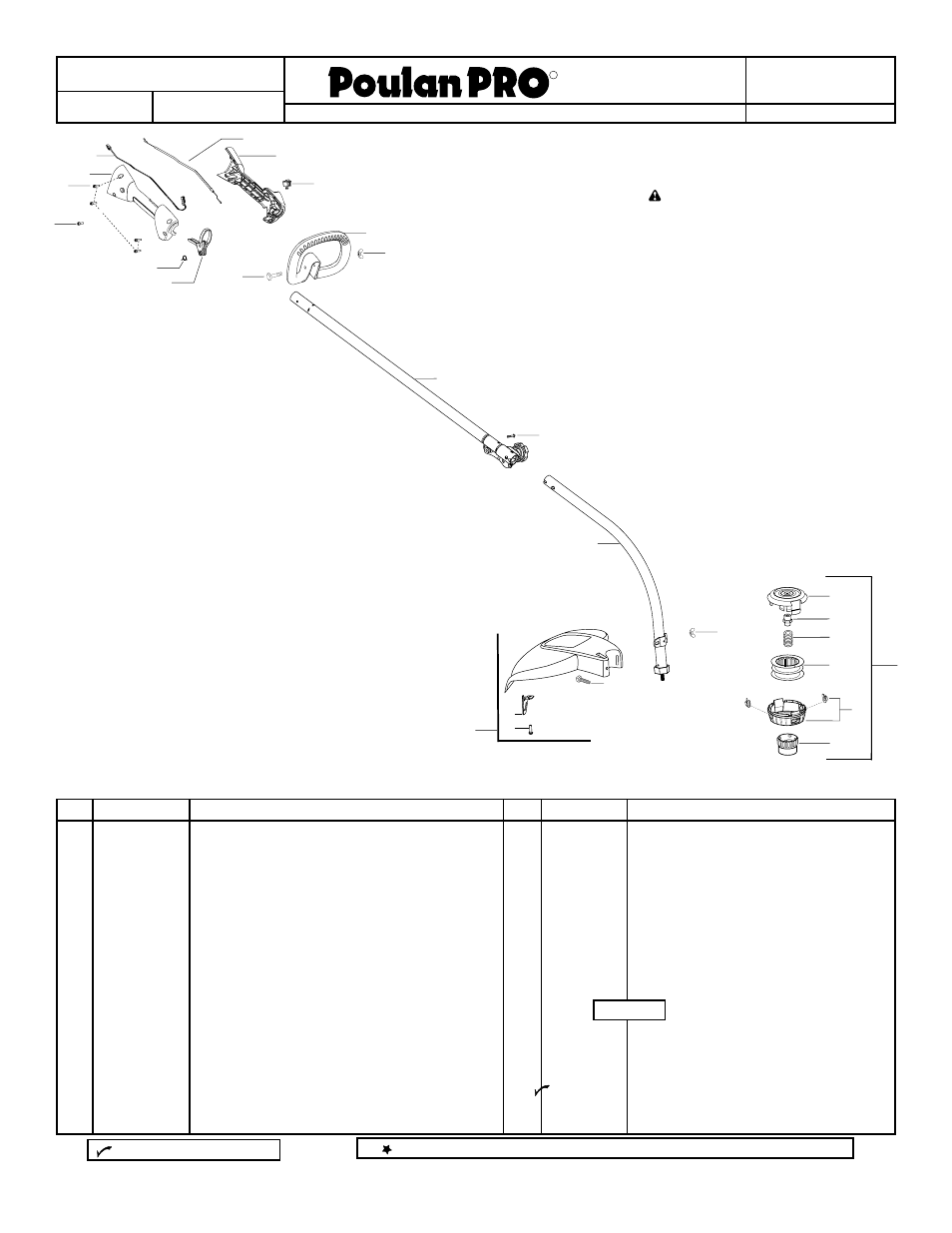

PARTS LIST

R

PP033 (US/CAN)

1

Parts List No.

Date

MODEL

WARNING

All repairs, adjustments and

maintenance not described in

the Operator’s Manual must be

performed by Qualified Service

Personnel.

1. 545191801 Assy-Switch

Wire

2. 545187602 Housing-Throttle

(RH)

3.

530016449

Screw M4 x 1.75

4.

530015805

Screw 10-14 x 1/2

5. 545190001 Spring-Trigger

6.

545008073

Kit - Trigger (Incl. 5)

7.

530015786

Bolt - 1/4-20 x 2

8.

545199301

Assy - Throttle Cable

9. 545187502 Housing-Throttle

(LH)

10. 545030601 Kit-Switch

11.

530058583

Assy - Handle Assist (Incl. 7,12)

12.

530016152

Wingnut - 1/4-20

13.

545003366

Kit-Driveshaft Upper (Incl.#14)

14.

530016344

Screw - 12-24 x .480

15. 545024301 Kit-Driveshaft

Lower

16.

530071824

Kit-Shield (Incl. 17,18,19,20)

17. 530052287 Limiter-Line

18.

530015814

Screw - 10-14 x 3/4

19.

530015820

Bolt - 1/4-20 x 1-1/4

20.

530016152

Wingnut - 1/4-20

21. 537419303

Housing

22. 537419901

Adapter

23. 537338801

Spring

24.

545080801

Assy - Spool

25.

545003365

Kit - Cover and Eyelet

26. 537419601

Knob

27.

952701717

Accy. - TNG 7 Cutting Head

(Incl. 21,22,23,24,25,26)

545186845 Manual

545209101

Decal-Shaft Warning (lower)

545167716

Decal-Shaft Warning (upper)

Ref.

Part No.

Description

Ref.

Part No.

Description

= New Part Number For This IPL

= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)

Not Shown

15

14

13

11

12

16

17

18

19

20

21

22

23

24

25

26

27

1

2

3

4

5

6

7

8

9
