Page 84

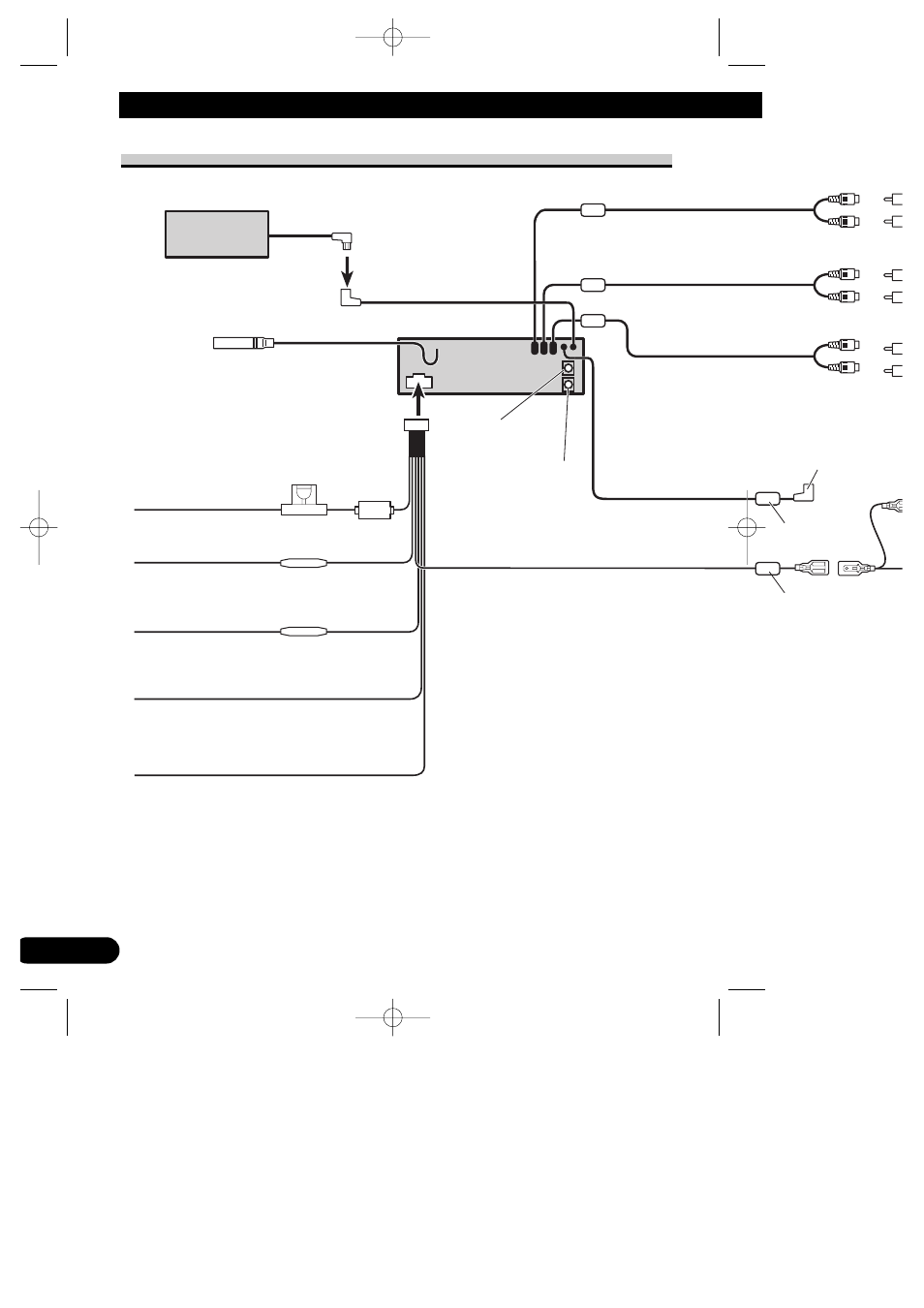

Connecting the Units

ENG/MASTER 96

This Product

Yellow
To terminal always supplied
with power regardless of
ignition switch position.

Red
To electric terminal controlled
by ignition switch (12 V DC)
ON/OFF.

Black (ground)
To vehicle (metal) body.

Orange/white
To lighting switch terminal.

Yellow/black
If you use a cellular telephone, connect it via the
Audio Mute lead on the cellular telephone. If not,
keep the Audio Mute lead free of any connections.

IP-BUS cable

IP-BUS input (Blue)

Antenna jack

IP-BUS output (Black)

Optical input (Blue)

Optical output (Black)

15 cm

Non-Fading output

Rear output

Front output

Subw

Front s

Noise filter

Blue/white
To system control terminal of the power
amp or Auto-antenna relay control terminal
(max. 300 mA 12 V DC).

Rear sp

Multi-CD player
(sold separately)

Fuse holder

Fuse resistor

Connecting without Audio Unit (DEQ-P9)
