10
37
Grease
38
58
46
46
52
52
39
71
31

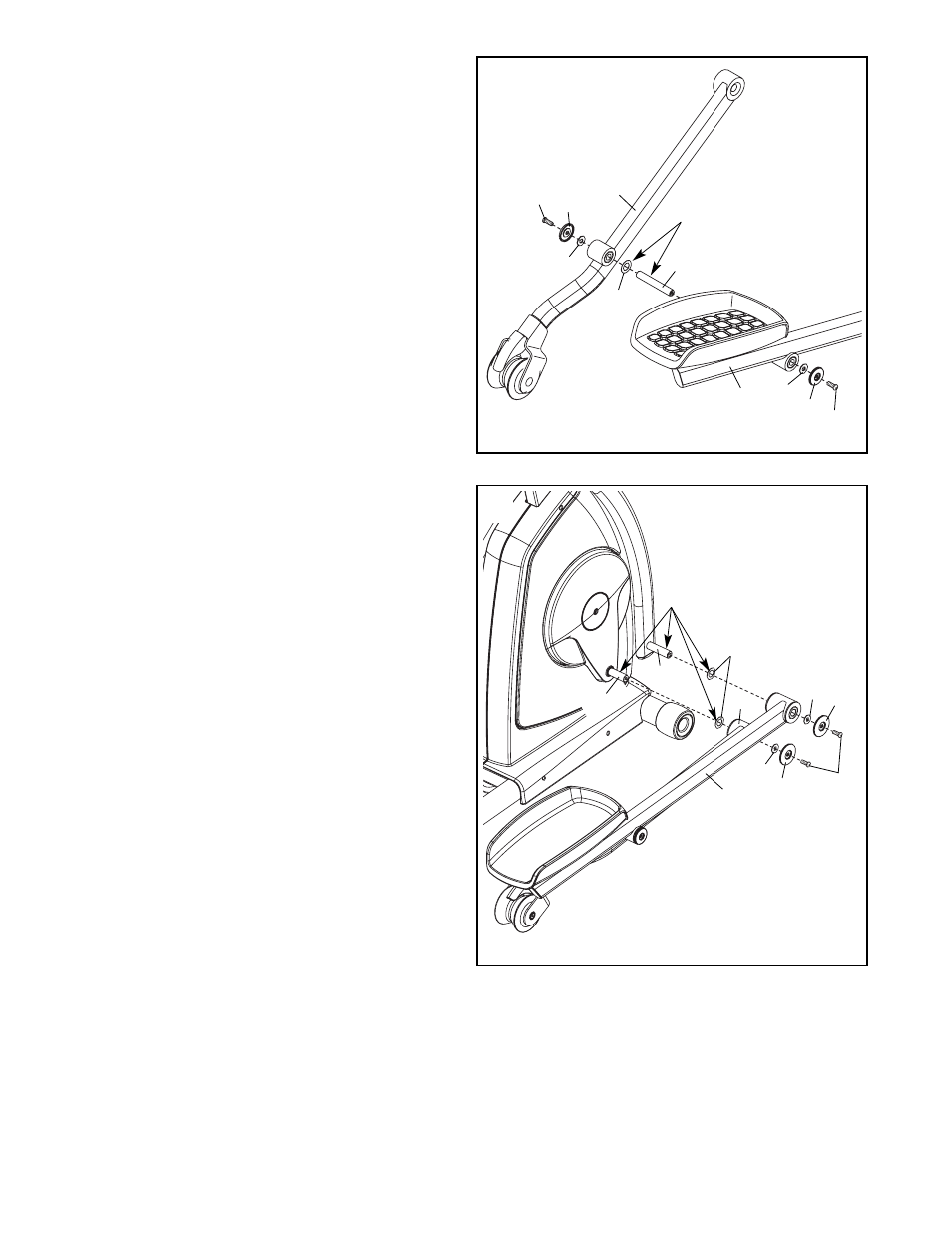

11. Apply a generous amount of grease to the axle
on the Right Upper Body Arm (37) and to the
right Crank Arm (31).
Apply a small amount of grease to two 19mm
Wave Washers (71). Slide one Wave Washer
onto the Right Upper Body Arm (37); slide the
other Wave Washer onto the right Crank Arm
(31).
Identify the Right Pedal Leg (38) and Right Link
Arm (39) assembly, which is marked with an “R”
sticker. Orient the assembly as shown.
At the same time and with the help of another
person, slide the Right Pedal Leg (38) onto the
Right Upper Body Arm (37) and slide the Right
Link Arm (39) onto the right Crank Arm (31).
Attach the Right Pedal Leg (38) and the Right
Link Arm (39) with two M10 x 20mm Button
Screws (58), two Axle Covers (46), and two M10
x 25mm Washers (52).
Repeat this step for the other side of the
elliptical exerciser.
12. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
11
39
47
Grease
38
49
54
77
77
49
54
66
10. Identify the Right Link Arm (39) and the Right
Pedal Leg (38), which are marked with “R” stick-
ers, and orient them as shown.
Apply a generous amount of grease to a Link
Axle (47). Also, apply a small amount of grease
to a 16mm Wave Washer (66). Slide the Link
Axle through the Right Link Arm (39) and then
slide the Wave Washer onto the right side of the
Link Axle.
With the help of another person, slide the Right
Pedal Leg (38) onto the right side of the Link
Axle (47). Attach the Right Link Arm (39) and the
Right Pedal Leg with two M8 x 25mm Button
Screws (77), two Link Axle Covers (49), and two
M8 x 25mm Washers (54).
Repeat this step for the Left Link Arm and
the Left Pedal Leg (not shown).
10
