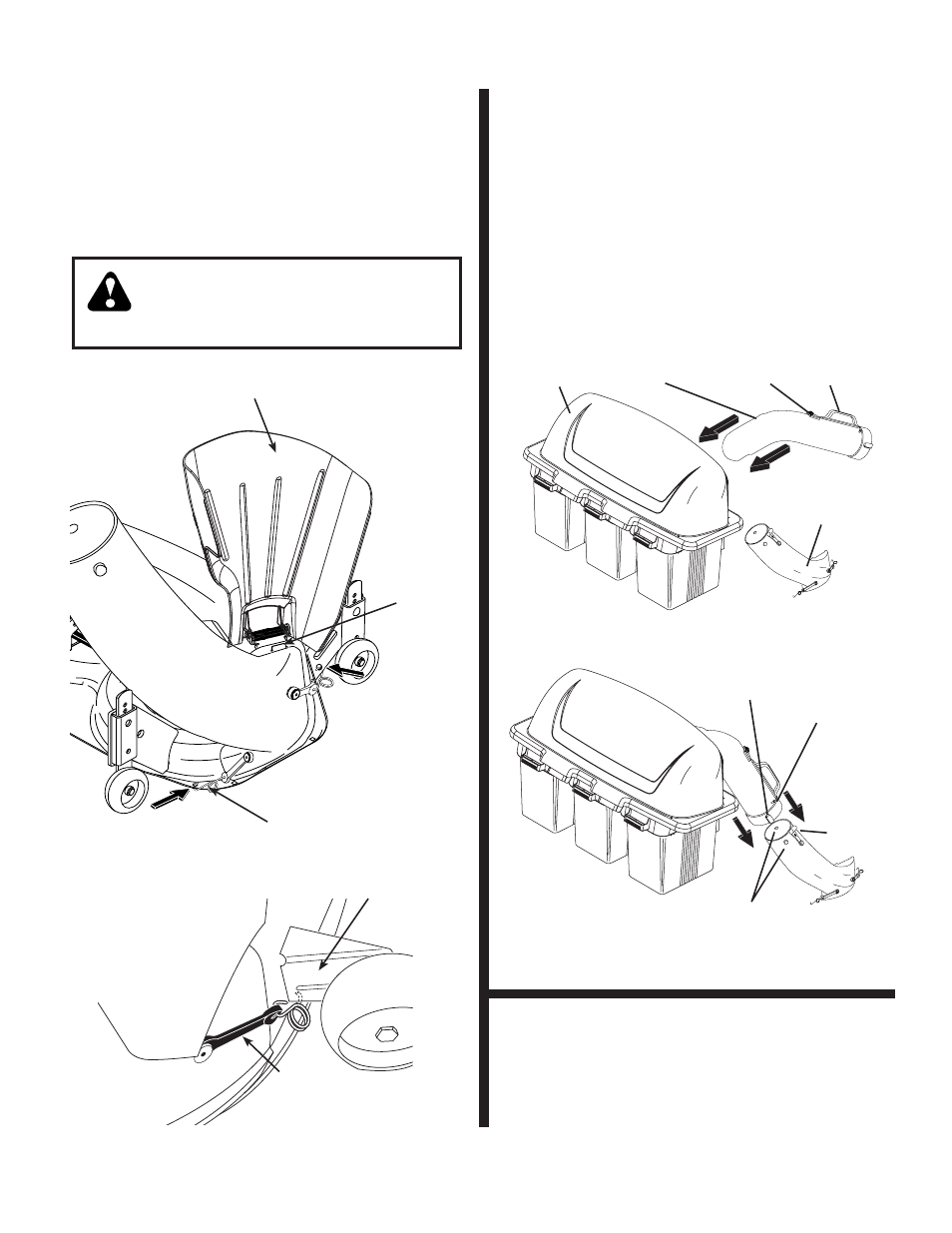

LOWER CHUTE (See Fig. 6)
1. Raise and hold defl ector shield in upright position.
2. Place slot in lower chute over tab on mower and position
lower chute over mower opening as shown.
3. Hook rear latch into fl ange hole on back of mower.
4. Hook front latch into hole in front gauge wheel bracket
or under gauge wheel bracket on mower without a hole
in bracket.
6
CAUTION: Do not remove defl ector
shield from mower. Raise and hold
shield when attaching lower chute
and allow it to rest on chute while in
operation.
FIG. 6
UPPER CHUTE (See Figs. 7A & 7B)
1. Lower mower to its lowest cutting position.
2. Assemble upper chute by inserting curved end into
hole in back of cover.
NOTE
: Handle carefully so as not to damage full bagger
indicator.
3. Push in and turn upper chute until it is in line with lower
chute.
4. Align the bosses on lower chute with alignment slots
on upper chute and slide together.
5. Secure with rubber latch by hooking hole in latch over
latch pin.
7
FIG. 7B
LEVEL
MOWER
• Be sure mower is properly leveled for best mower
per for man ce. See your tractors owner's manual for
ins truc tions
8
02783
REAR LATCH
FRONT
LATCH
DEFLECTOR
SHIELD
TAB
03029
COVER
HANDLE
LOWER
CHUTE
FULL BAGGER
INDICATOR
UPPER
CHUTE
FIG. 7A
03023
BOSSES
LATCH PIN
ALIGNMENT
SLOT
RUBBER
LATCH
GUAGE WHEEL
BRACKET
