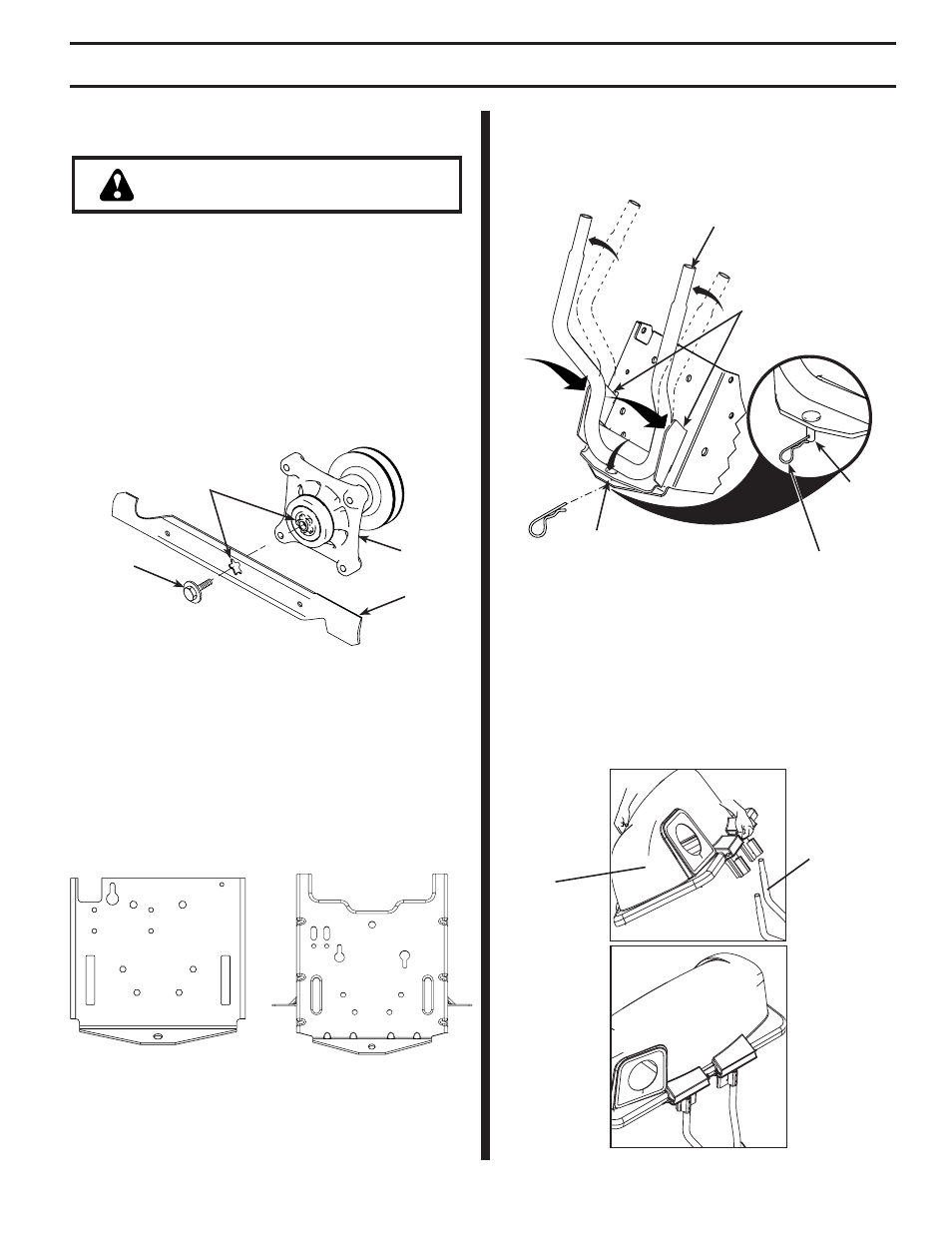

5

3

MOUNTING COVER ASSEMBLY TO

SUPPORT ASSEMBLY (See Fig. 3)

NOTE

: For ease of assembly, you may wish to obtain the

as sis tance of another person for mounting cover assembly
to tractor.
1. Position cover assembly on ground behind tractor.
2. Lift and rotate cover to align cover brackets with support

assembly tubes.

3. Slide cover assembly down onto the support tubes.

FIG. 3

03024

COVER
ASSEMBLY

SUPPORT
ASSEMBLY

ASSEMBLY

02543

HANG SUPPORT ASSEMBLY ON
REAR DRAWBAR (See Fig. 2)

Determine the correct support assembly for your tractor.
The support assemblies are marked "A" and "B".

Compare the drawbar illustrations below to the drawbar
located at the rear of your tractor.

Use the support assembly indicated for your tractor and
discard the other support assembly.

2

FIG. 2

INSERT
FLANGES
FIRST INTO
DRAWBAR
SLOTS

SUPPORT
ASSEMBLY

DRAWBAR SLOTS
(Drawbar "A" shown)

RETAINER
SPRING

PIN

020

51

02

05

1

INSTALL HIGH LIFT BAGGING BLADES
(See Fig. 1)

CAUTION: Blades are sharp. Protect
your hands with gloves and/or wrap
blade with heavy cloth.

NOTE:

If you already have high lift bagging blades on your

mower, store the supplied blades in a safe place for future
use. Go on to step 2.
1. Raise mower to highest position to allow access to

blades.

2. Remove blade bolts by turning counterclockwise.
3. Install bagging blades supplied with stamped "THIS

SIDE UP" facing up towards mower, or, blades stamped
with "GRASS SIDE" facing down towards grass.

IMPORTANT: To ensure proper assembly, center hole in blade
must align with star pattern on mandrel assembly.

4. Install and tighten blade bolts securely (45-55 Ft. Lbs.

torque).

025

44

HIGH LIFT
BAGGING
BLADE

BLADE BOLT
(SPECIAL)

MANDREL
ASSEMBLY

FIG. 1

STAR
PATTERN

1

020

51

DRAWBAR
PIN HOLE

1. Slide fl anges of support assembly into drawbar slots

fi rst, then, pivot backwards inserting pin into drawbar
pin hole.

2. Be sure support assembly is seated properly, then

secure with retainer spring.

DRAWBAR A

Use Support Assembly

Marked "A"

DRAWBAR B

Use Support Assembly

Marked "B"
