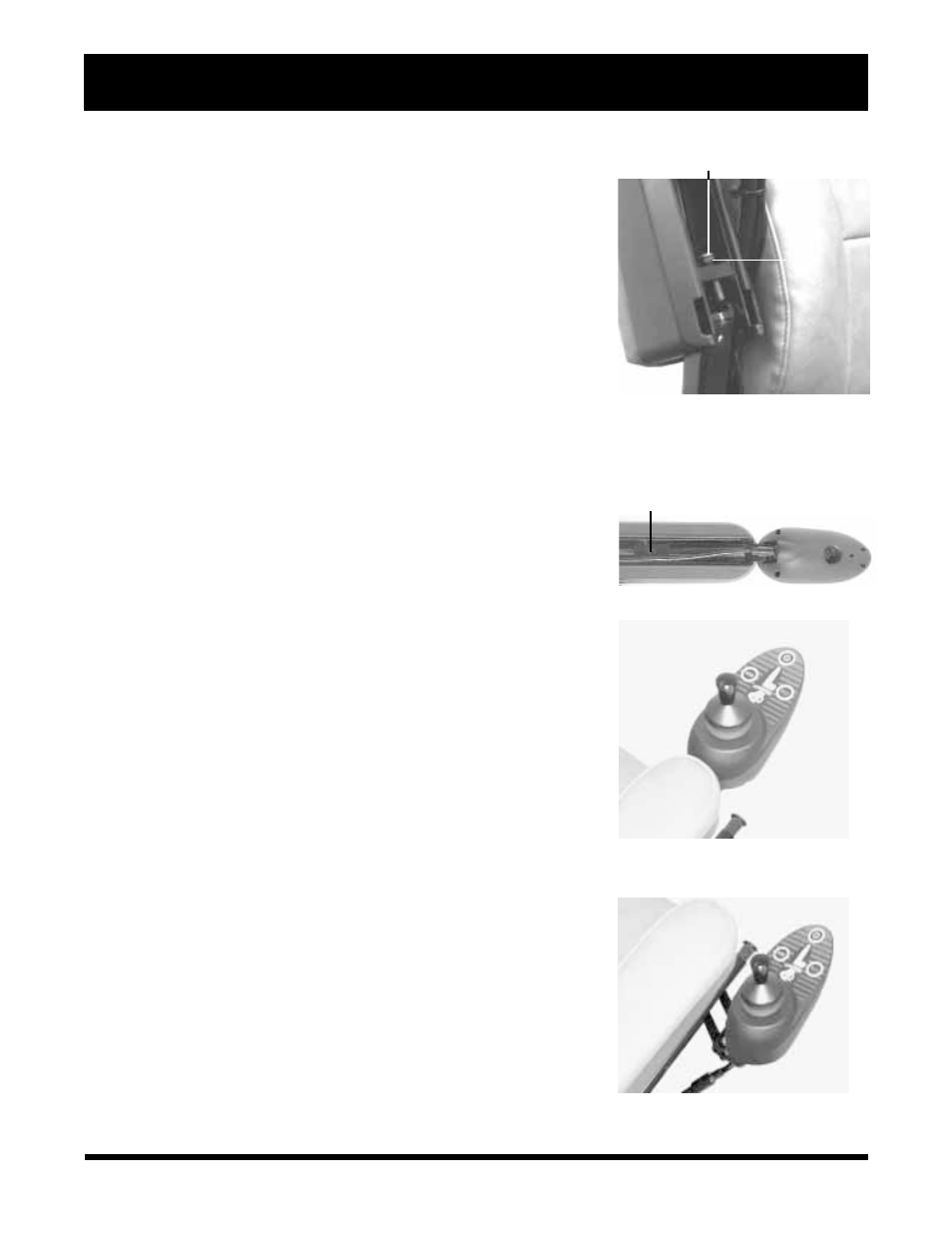

Figure 19. Swing-Away Joystick
(Forward Position)
Figure 20. Swing-Away
Joystick (Retracted Position)
Figure 17. Armrest Angle
Adjustment
TURN THIS SCREW TO CHANGE ARMREST ANGLE
Figure 18. Joystick Extension
LOOSEN THIS SETSCREW
TO ADJUST JOYSTICK
LOCKING NUT
LOCKS
ADJUSTMENT
SCREW IN
PLACE
V I . C O M F O R T A D J U S T M E N T S
ARMREST ANGLE
(MEDIUM/HIGHBACK/RECLINER)
You can adjust the armrest angle to fit your specific needs. See
figure 17.
To change the armrest angle:
1. Lift the armrest straight up so that it is perpendicular to the
floor.
2. Use a 7/16-in. spanner to loosen the locking nut. See figure
17.
3. Use a 5/32-in. hex key to loosen the adjusting screw.
4. Turn the screw clockwise to raise the front of the armrest, or
turn the screw counterclockwise to lower the front of the armrest.
5. Lock the adjusting screw into place by tightening the locking
nut.
ARMREST HEIGHT (OPTIONAL)
Your Jazzy may be equipped with height-adjustable armrests.
To change the armrest height:
1. Remove the ball detent pin from the armrest.
2. Move the armrest up or down to the desired height.
3. Align the holes and insert the ball detent pin.
4. For permanent positioning, tighten the setscrew.
JOYSTICK EXTENSION
The joystick control can easily slide out away from the armrest, or
in toward the armrest. See figure 18.
To extend the joystick:
1. Use a 3/16-in. hex key to loosen the setscrew.
2. Slide the joystick mounting bracket into or out of the armrest
to the desired position.
3. Tighten the setscrew by turning it clockwise.
SWING-AWAY JOYSTICK
Your Jazzy may be equipped with a swing-away joystick. This
option enables you to move the joystick from the front of the
armrest to the side of the armrest without disconnecting it. See
figures 19 and 20.
