Assembling and Maintaining the RBK 815 Recumbent Exercise Bike
7.
Slide the support into position so that its screw holes line
up with the corresponding holes on the body assembly, as
shown in the following illustration.
Note: If the support is positioned correctly, it rests on a
metal tab in the upright support channel.

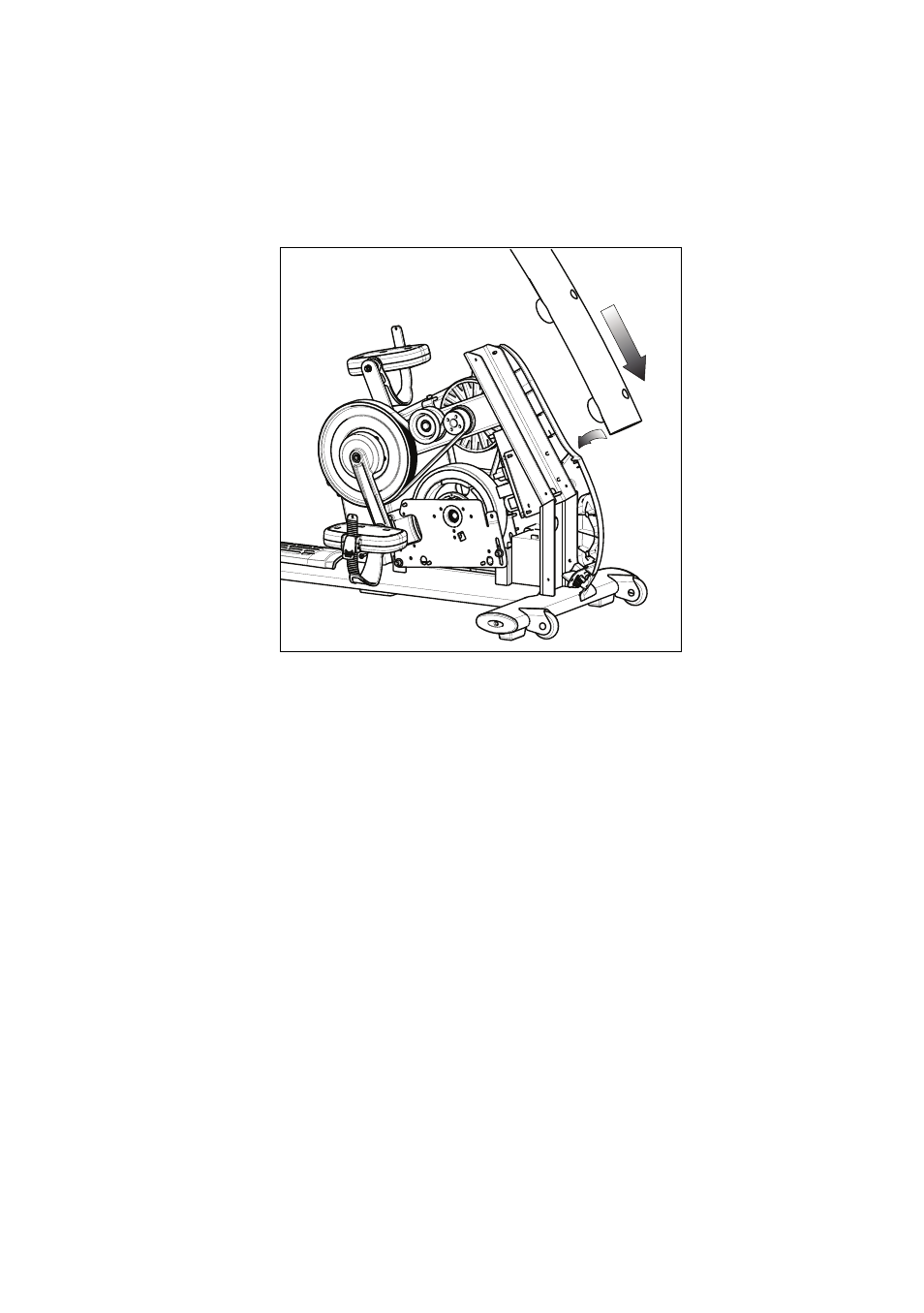

Figure 7: Upright support insertion
Important: In the following step, be extremely careful not to
trap or pinch any of the cables between the mounting screws
and their seats.
