Hardware kit (not to scale), Required tools – Precor RBK 815 User Manual
Page 15
Assembling the Exercise Bike
13

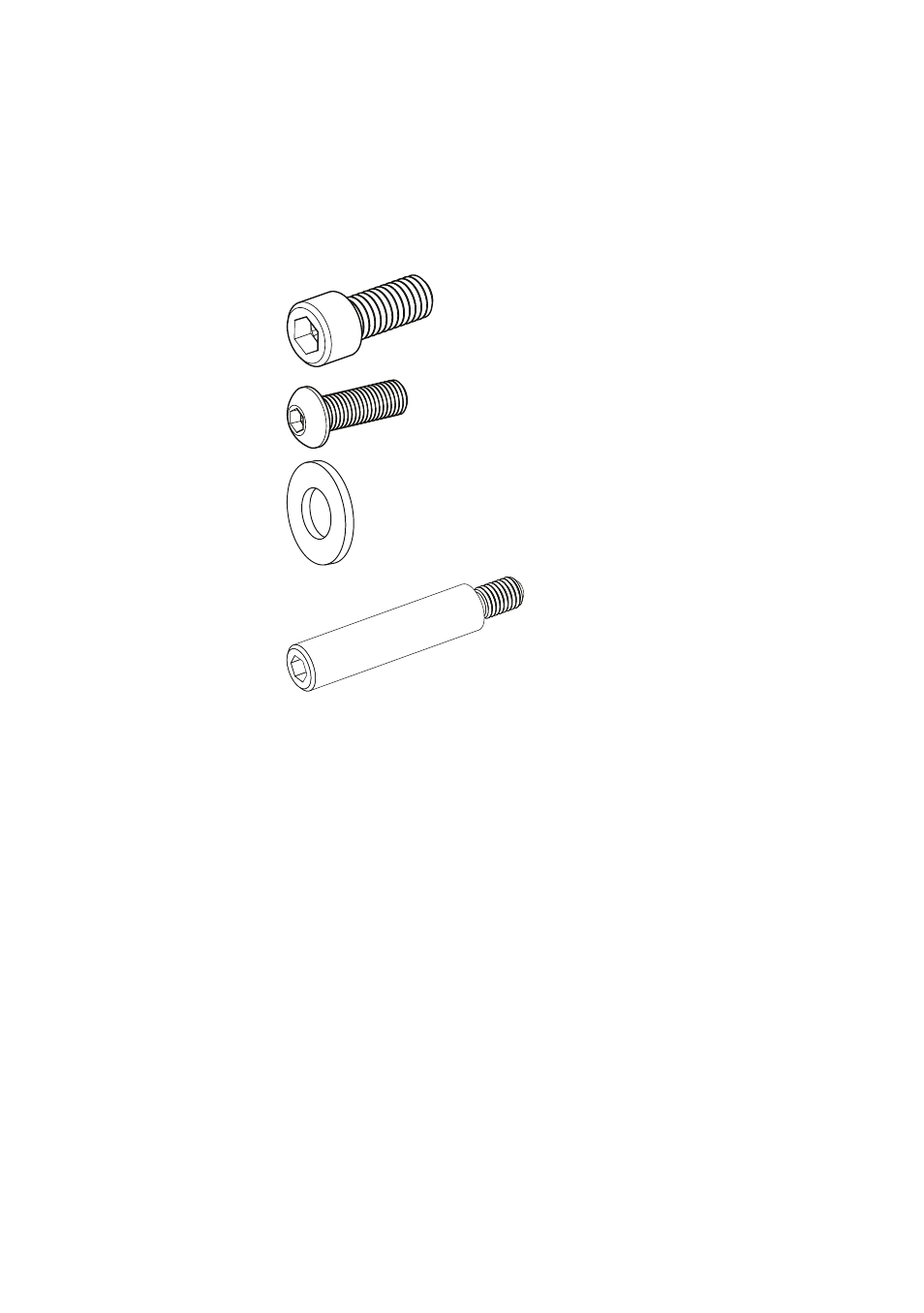

Hardware Kit (not to scale)
Before you begin the assembly, verify that the following
hardware items are packed with the equipment.
Fasteners
Quantity
⁵ ₁₆-inch x ³ ₄-inch
sockethead screw
4
¹ ₄-inch x ³ ₄-inch
buttonhead screw
4
⁵ ₁₆-inch flat washer
4
Upright support
mounting screw
2
Required Tools
y
³ ₈-inch hex wrench
y
¹ ₄-inch hex wrench
y
⁵ ₃₂-inch hex wrench
y
#2 Phillips screwdriver
y
Wire cutter
