C O M M E R C I A L P R O D U C T S D I V I S I O N
b. Thread screw (K) with washer (L) through the link arm. Refer to Diagram
14, #1 and #2.
Important: The head of the screw should be facing the EFX ® . It is inserted
through the link arm first.
c. Place a steel bushing (A) and washer (L) on the end of the screw. Insert
the link arm onto the handlebar base and slide the screw through it.
d. Slide a washer (L) and thread a locknut (M) on to the end of the screw.
Refer to Diagram 14, #2.

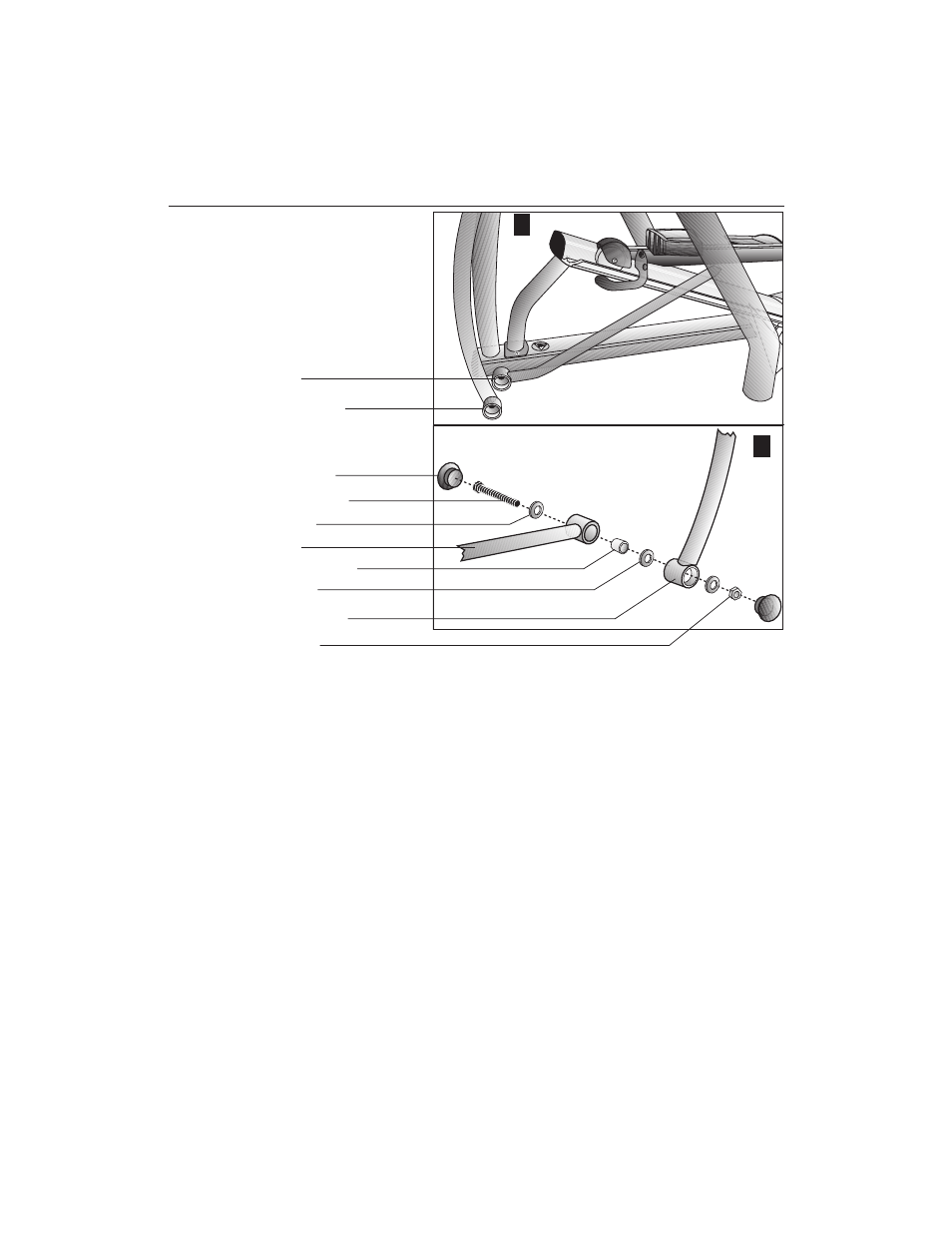

Diagram 14 Handlebar and link arm
assembly.
Link arm
Handlebar base
Steel bushing (A)
Washer (L)
Washer (L)
2-inch screw (K)
Plastic cap (C)
Link arm
Handlebar base
Locknut (M)
1
2
