INSTALLATION INSTRUCTIONS PN433

*MTP is a registered trademark of US Conec Ltd.

For Technical Support: www.panduit.com/resources/install_maintain.asp

Page 3 of 4

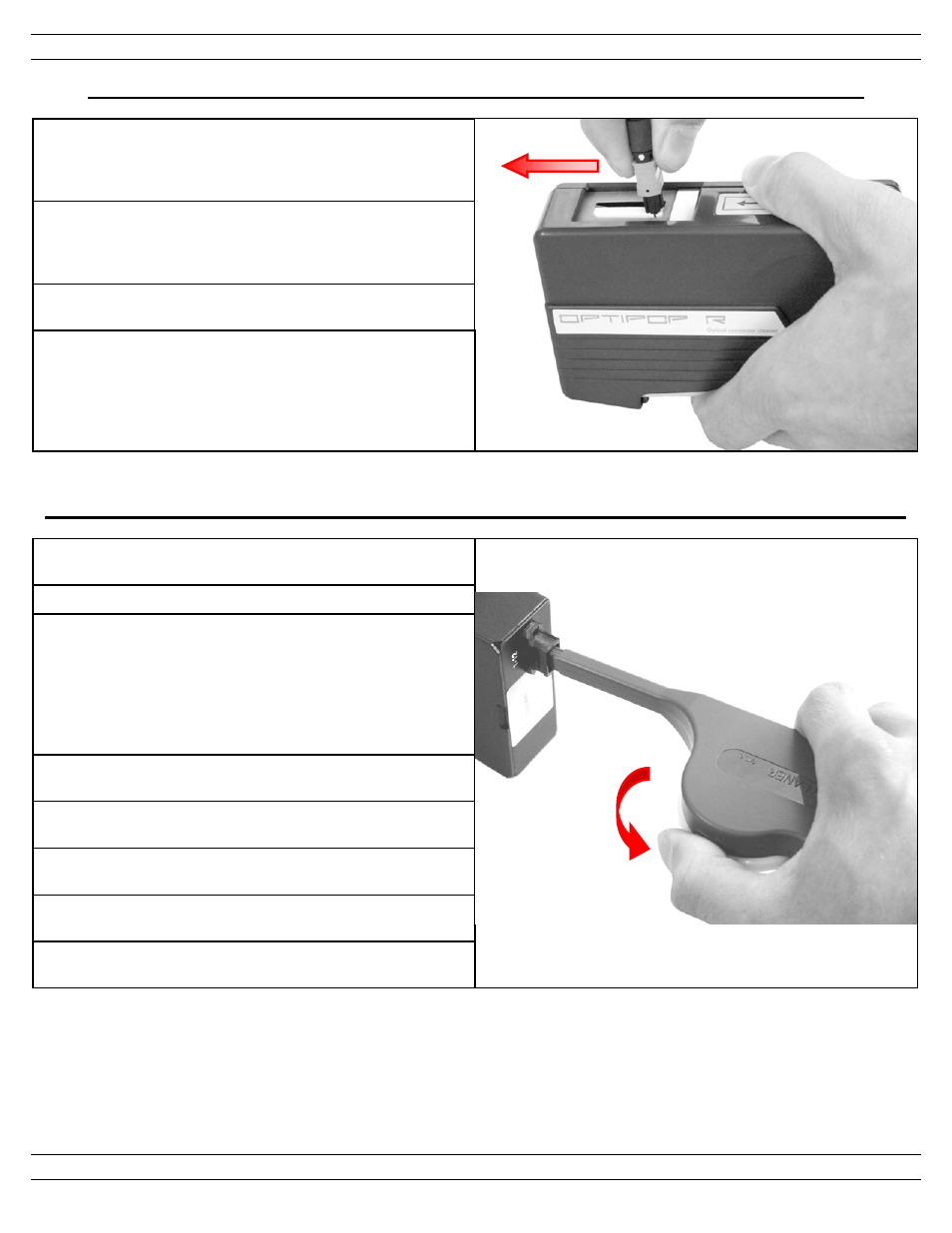

FMTPMFCT Instructions - Cleaning Male MTP* Connectors

1. Grip the FMTPMFCT, depressing the green lever of the

cleaning tool. The metal shutter on top of the cleaning tool
will open, exposing fresh cleaning material. Fresh material
is exposed each time the green lever is depressed.

2. Position the male MTP* ferrule endface so that the fiber

tips are in contact with the cleaning material. Wipe the
ferrule endface along the cleaning material in the direction
shown on the cleaning tool.

3. Release the green lever of the cassette to cover the

cleaning material.

4. Repeat steps 1, 2 and 3 to ensure that any contamination

is removed.

NOTE: The FMTPMFCT MTP* Male Fiber Cleaning Tool is
designed to provide clearance for the connector’s guide
pins allowing the fiber tips to contact the cleaning material.

FIBCCT Instructions - Cleaning Q

UICK

N

ET

Cassette MTP* Connectors

1. Remove the external connector or dust cover from the

Q

UICK

N

ET

Cassette MTP* adapter.

2. Remove the dust cap from the FIBCCT.

3. Insert the cleaning tool tip into the MTP* adapter as

shown.

NOTE: The FIBCCT Q

UICK

N

ET

Cassette MTP* Cleaning

Tool is keyed the same as a MTP* connector. Insert the
cleaning tool tip into the Q

UICK

N

ET

MTP* adapter with the

key of the cleaning tool tip matching the keyway of the
adapter.

4. Rotate the tape feeder wheel in the direction indicated on

the cleaning tool.

5. Remove the cleaning tool from the Q

UICK

N

ET

Cassette

MTP* adapter.

6. Repeat steps 3, 4 and 5 to ensure that any contamination

is removed. Replace the dust cap onto the cleaning tool.

7. Clean the external connector as described in the sections

above.

8. Reinstall the external connector into the Q

UICK

N

ET

Cassette MTP* adapter.
