66
MAJOR OPERATING CONTROLS & THEIR FUNCTIONS

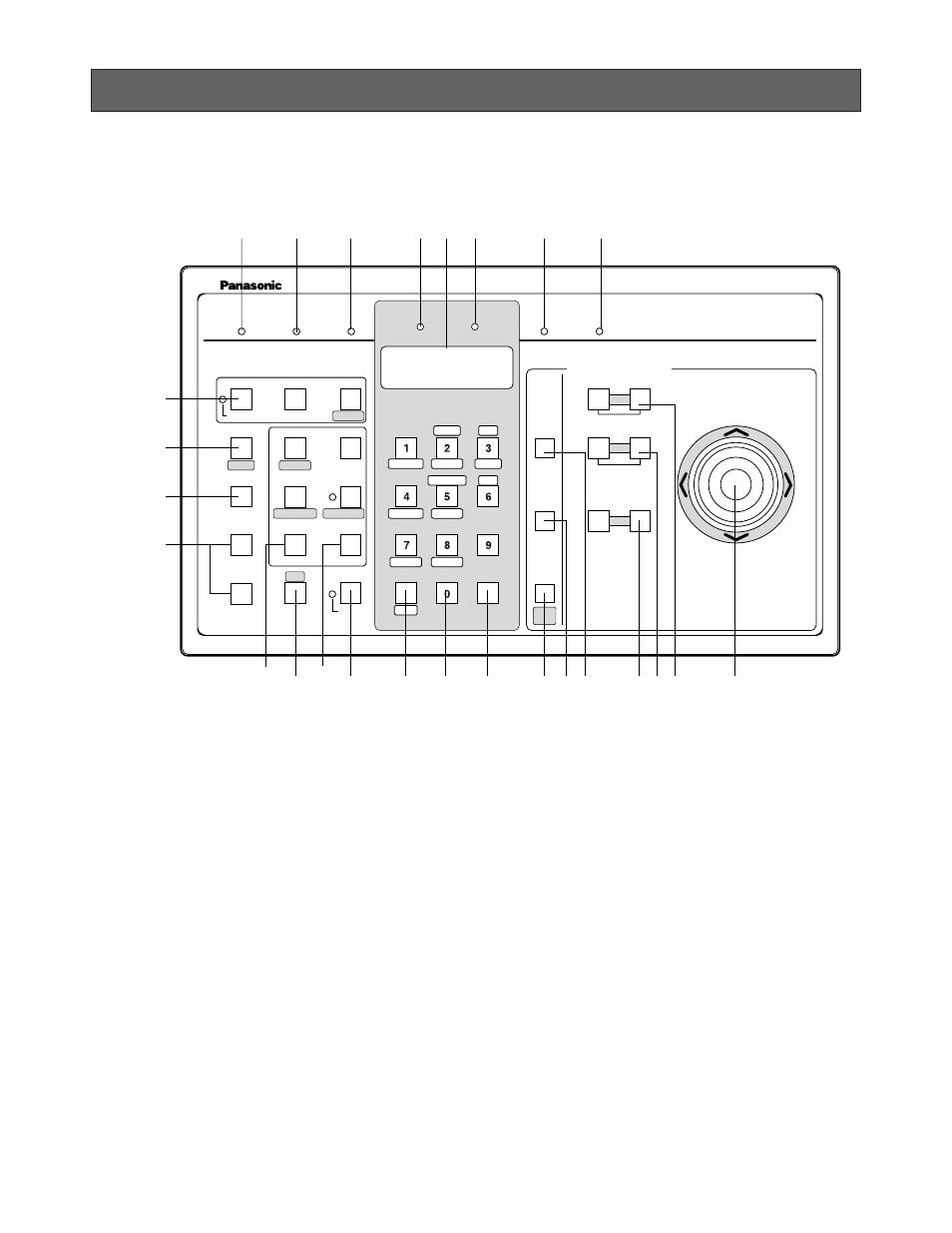

■ Front View (Template for System 850 Matrix Switcher)
q Operate indicator (OPERATE)
Is lit while power is supplied to the System Controller.
w Link indicator (LINK)
Lights up when communication is established with the
Main CPU.
e Alarm indicator (ALARM)
Lights up when an alarm condition exists. Select the
alarm number using the numeric buttons, then press
the ALARM button and the RESET button to turn off the
indicator.
r Monitor indicator (MONITOR)
Lights up when the monitor number is displayed on the
LED display.
t LED Display
Displays the number of monitors and cameras currently
controlled.
It also displays numeric input, error status, etc.
y Camera indicator (CAMERA)
Lights up when the camera number is displayed on the
LED display.
u Busy indicator (BUSY)
Lights up when you attempt to control a monitor or cam-
era that is already used by a higher priority operator, or
when the higher priority operator selects the camera or
monitor you are currently operating.
Operations from the System Controller are disabled
until this indicator goes off.
i Prohibited indicator (PROHIBITED)
This indicator lights up for 3 seconds when an attempt
is made to gain access to a function that is prohibited
by the partition.
AUTO FOCUS
OPERATE LINK ALARM BUSY PROHIBITED
IRIS
CLOSE OPEN
NEAR FAR
WIDE TELE
FOCUS
ZOOM
IRIS RESET
PREV
SEQ SEQ
TOUR GROUP
ALARM
DISARM
ACK RESET
GROUP PRESET NEXT
LOG OUT PAUSE STOP
F1
F2 MONITOR
CAM FUNC LOCK
OSD SERVICE
CAMERA
(ENTER)
CLEAR
(ESC)
CALL
PRESET
PROGRAM
PRESET
SHIFT
DEF OFF DEF ON
AUX2 OFF AUX2 ON
AUX1 OFF AUX1 ON
CAM ID
OPE ID S-CTL ID
OSD
CAM MENU OFF CAM MENU ON
ALL RESET
MDN STATUS
WIPER
GEN
ALL
EXIT BLK
VLD H ALM H
VLD S SYS S ALM S
AUTO
PAN
UP
L R
DOWN
MONITOR CAMERA
For Matrix Switcher (System 850)
WV-CU C
360
CAMERA SITE CONTROL
System Controller
!9@0@1
@2@3@4
@5@6@7
@8
q w e t r y u i
o !0 !2 !1 !3 !4 !5 !6 !7 !8 #2 #1
@9 #0
