CONNECTING THE DRIVE AS THE ONLY SCSI DEVICE
WARNING
The power supply of the personal computer always must be switched
off before cables are connected.

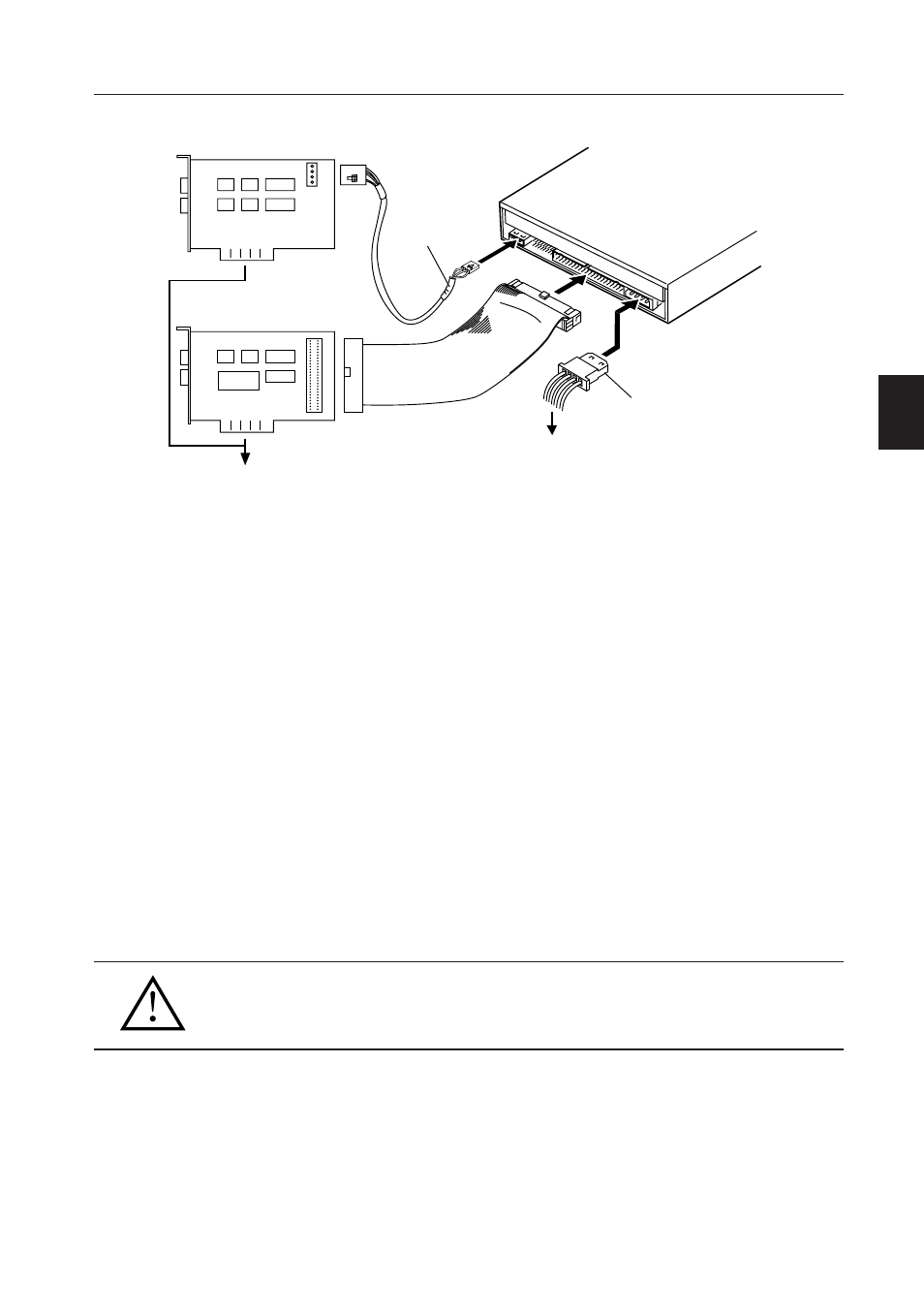

Fig. 5
When no SCSI hard disk or other SCSI equipment is used, connect according to the
following connection method.
¶ Switch off the power supply of the personal computer.
¶ Set the SCSI ID number.
¶ Set the termination ON.
¶ Connect the power supply cable from the personal computer. At the time of
connection, please pay attention to the cable polarity.
¶ Connect the SCSI interface cable. At this time, confirm that the pin 1 of the SCSI
connector is connected correctly to pin 1 of the cable.
¶ When a sound board is used, connect the audio output with an audio cable to the
sound board.
Pin 1
Power Cable
SCSI
Interface
Cable
Audio Cable
SCSI HOST
Adapter
Sound Board
To the power supply of
the personal computer
Into an expansion slot of
the personal computer
