14
RQT8361
STEP
1
Connection
≥Before connection, turn off all equipment and read the appropriate operating instructions.
≥Select the connection pattern that matches your environment from pattern A–B. Confirm connections not listed below with your
dealer.
Make sure to use the pair of supplied RF coaxial cables
Use the pair of supplied RF coaxial cables only when you make connections to the unit through its RF IN and RF OUT terminals. Striping may
appear and disrupt images on the TV if you use different cables for connection.
A

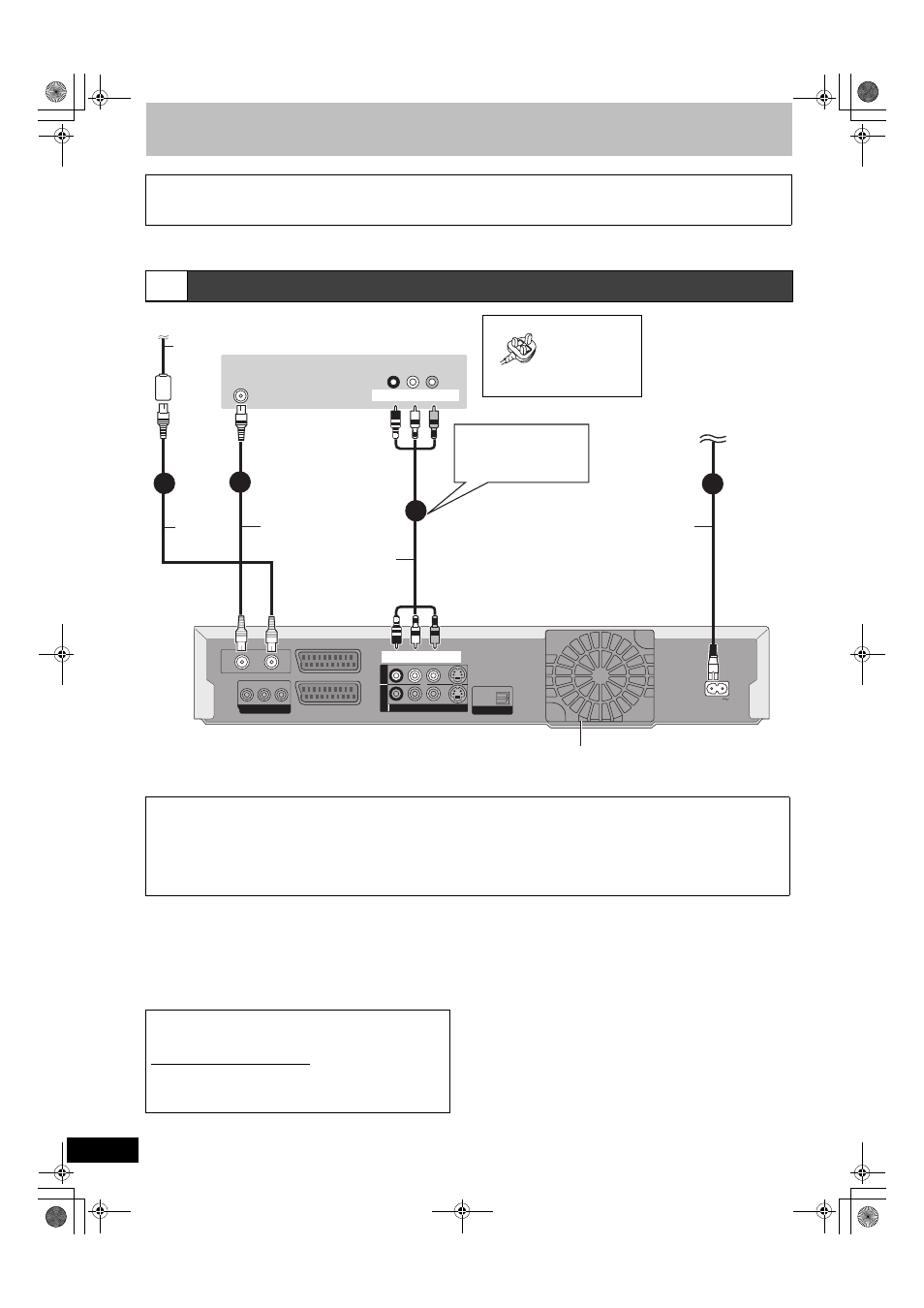

Connecting a television
AC IN
OPTICAL
OPTICAL
DIGITAL AUDIO OUT
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
(PCM/BITSTREAM)
S VIDEO
S VIDEO
VIDEO
VIDEO
R-AUDIO-L
R-AUDIO-L
AV4 INA
V
4
I
N
OUTO
U
T
AV2 (DECODER/EXT)
AV1 (TV)
P
R
P
B
Y
COMPONENT VIDEO OUT
COMPONENT VIDEO OUT
RF
RF
IN
IN
RF
RF
OUT
OUT
4
3
2
1
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO IN
To the aerial
Television’s rear panel
Aerial
cable
RF
coaxial cable
(included)
This unit’s rear panel
To household mains socket
[For]Australia]and]N.Z.]
(AC 220 to 240 V, 50 Hz)
[For]Asia]and]Middle]East]
(AC 220 to 240 V, 50/60 Hz)
AC mains lead
(included)
Connect only after all other
connections are complete.
Cooling fan
RF
coaxial
cable
(included)
Red White Yellow
Red White Yellow
[For\Saudi\Arabia[
BE SURE TO
READ THE
CAUTION FOR
THE AC MAINS
LEAD ON PAGE
2 BEFORE
CONNECTION.
Audio/Video cable
(included)
[For]Middle]East]
≥Use the AC mains lead that matches the
socket for the area you live in.
Other connections
(
➡ 16)
Connecting to a television with 21-pin Scart terminal
You can also connect with the AV1 terminal on this unit using the 21-pin Scart cable.
If your television is equipped with RGB input capability, by connecting with a fully wired 21-pin Scart cable you can see video using RGB
output on this unit.
[Required]setting]
“AV1 Output” in the Setup menu (
➡ 61)
When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This
unit consumes a small amount of power, even when it is turned off
[approx. 2 W (Power Save mode)]
When “Power Save” is set to “On”, the “Quick Start” function does
not work.
