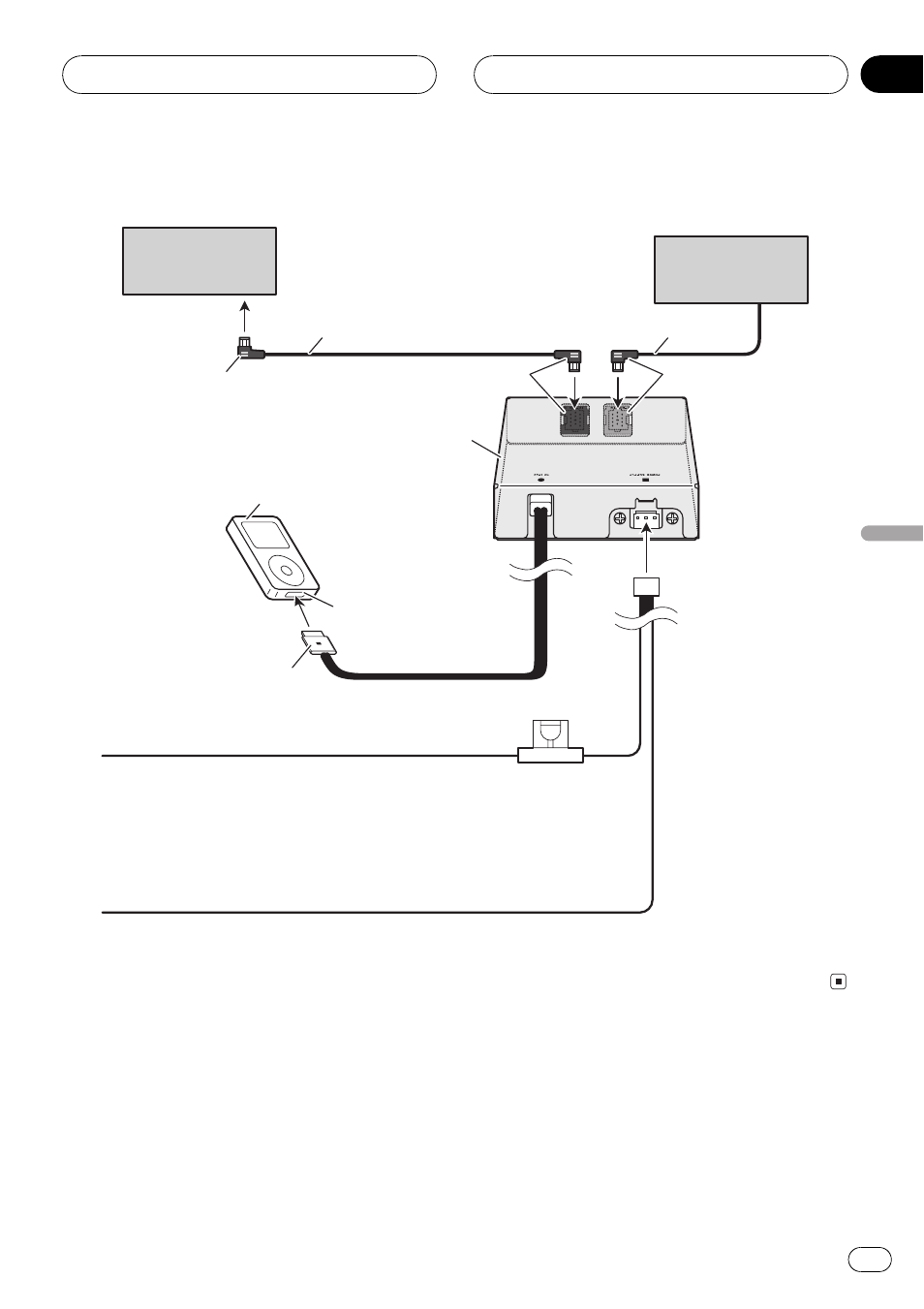

Anschließen der Geräte
Schwarz (Erde)
An Fahrzeugkarosserie (Metall).
Sicherung (2 A)
Gelb
An Anschlussklemme - stets unter
Strom, ungeachtet der jeweiligen
Zündschlüsselposition.
1,5 m
1,5 m
IP-BUS-Kabel
IP-BUS-Kabel
Blau
An IP-BUS-Eingang
(blau)
Dock-Anschluss
Dock-Anschlussstecker
iPod, iPod mini oder iPod Photo
Multi-CD-Player
(separat erhältlich)
Hauptgerät
Schwarz
Dieses Gerät
Anschlüsse
De
39
Abschnitt
Deutsch
04
