13
Installation
ENG/MASTER 96 INST
14

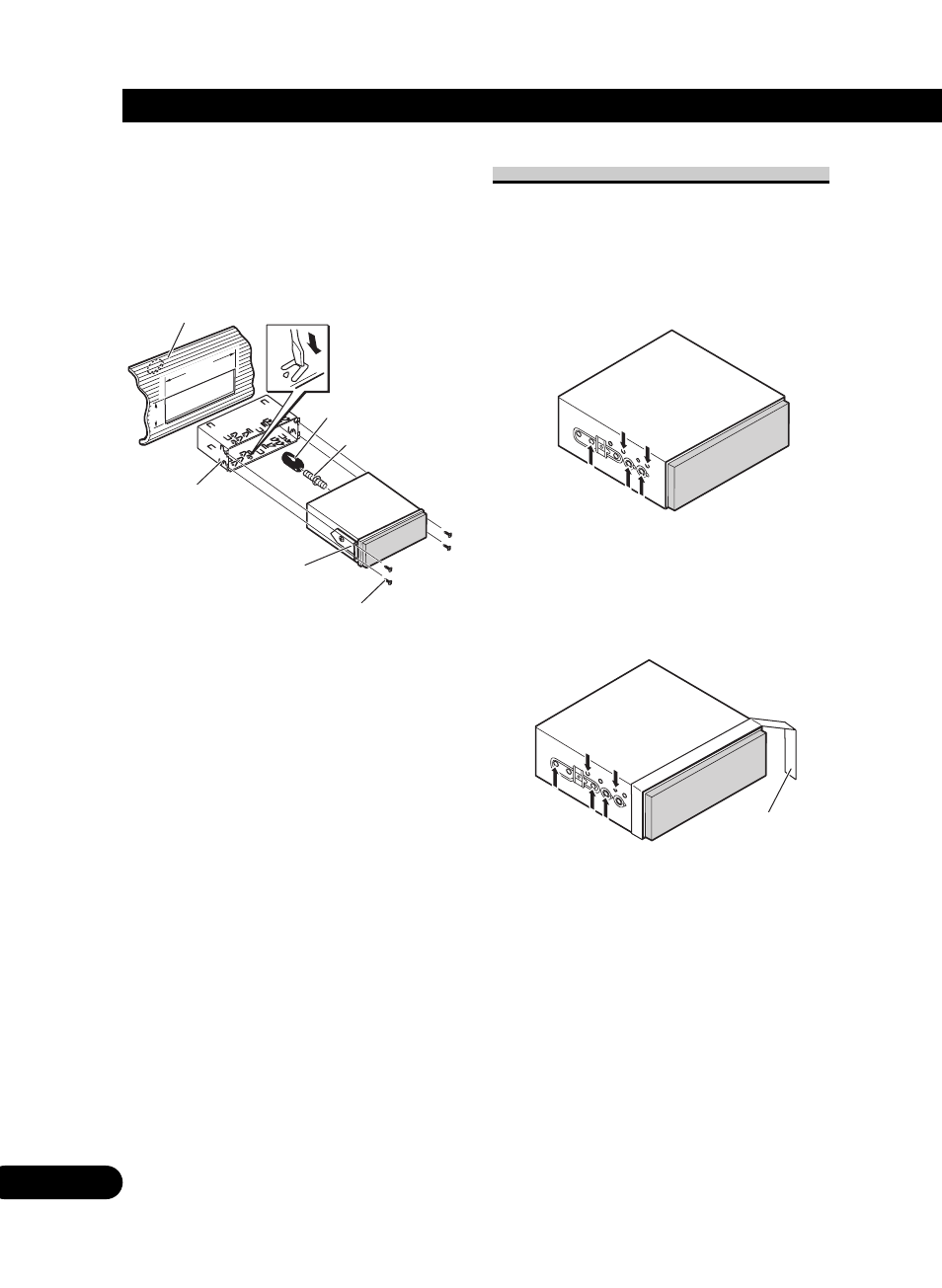

2. Install the unit into the dash-
board.
Insert the mounting sleeve into the
dashboard. And then secure the mount-
ing sleeve by using a screwdriver to
bend the metal tabs (90°) into place.
DIN Rear-mount
1. Determine the appropriate posi-
tion where the holes on the
bracket and the side of the unit
match.
*1 Use binding screws (4 mm
× 3 mm) only.
• When installing in a shallow space,
use the following screw holes. In
this case, stick concealing tape on
parts that protrude from the dash-
board.
*1
*1
Concealing tape
*1
*1
182
53
Rubber bush
Screw
Dashboard
Side bracket
Screw (2 mm
× 3 mm)
Mounting sleeve
