E-27

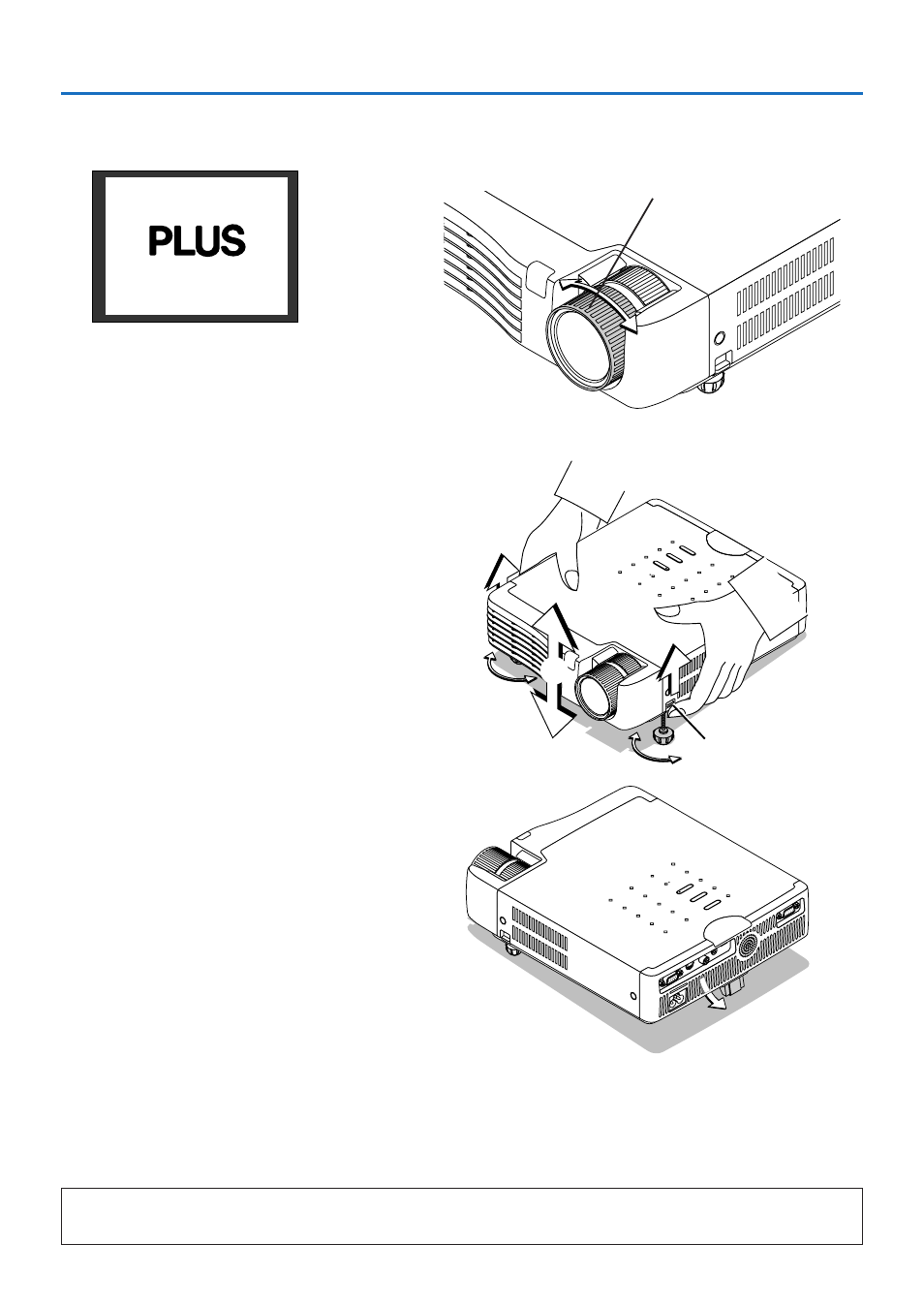

Adjustment of the Projection Screen
3
Turn the focus ring and adjust the focus of the screen
Focus ring
Note:
When the projector has a suspended or rear installation is used, the orientation of the projection will need to be changed.
Please see “Vertical Flip” on Page E-53.
ST
AN
DB
Y
ST
AT
US
ST
ANDBY
AUTO
SOURCE
RG
B
S V
IDE
O
VID
EO
AU
DIO
MO
US
E
PC
CO
NT
RO
L
Making Adjustments with the Adjusters
Raising the projection image
While viewing the projection image, (1) press and hold
the front adjuster buttons located at the left and right and,
(2) raise the projector to align the image with the screen,
then release your fingers.
Turn the left and right front adjusters for fine adjustment.
Adjust so that there is no shaking of the projector.
Lowering the projection image
Lower the front adjusters using the operation described
above.
To lower the projection screen further, raise the rear ad-
juster. Fine adjustments are made by turning the left and
right front adjusters. Make adjustments so that there is
no rattling.
(1)
ST
ANDBY
STATUS
ST
ANDBY
AUTO
SOURCE
(1)
(2)
Adjuster button
