14
PRO-1000HD I / PRO-800HD I
Installation and Connections

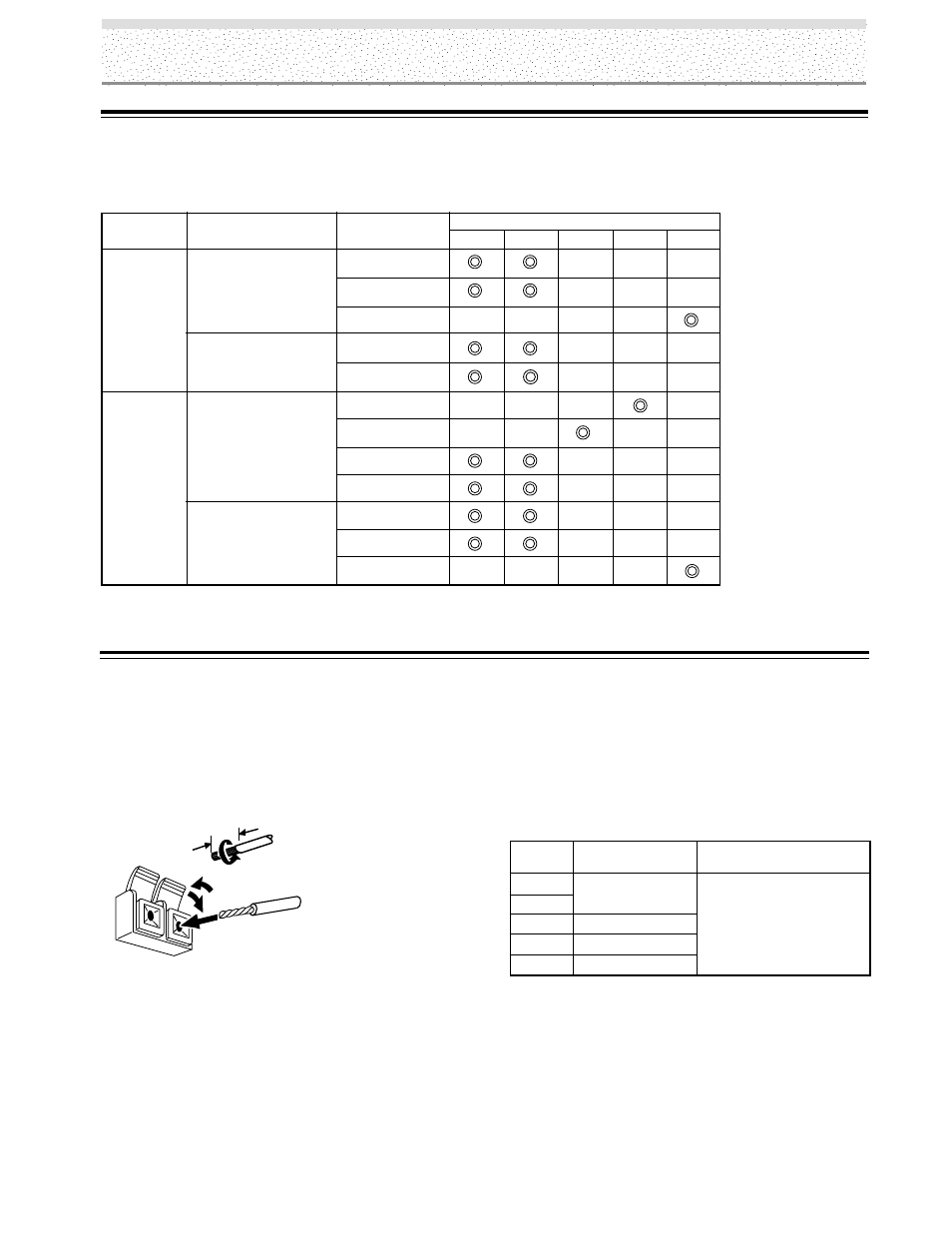

Connecting the speakers
This unit is equipped with a 2W+2W internal amplifier. If
speakers are to be connected to the unit, following the
accompanying connection instructions.
10 m
m
Note
When making speaker connections, be sure to match the
polarities (+ and –) of the speaker terminals on this unit and the
corresponding terminals on the speakers. If the polarity is
reversed, the sound will be unnatural and lack bass.
Twist exposed
wire strands
together.
Push tab to the open
position, and insert the
wire. Then, close tab
firmly to secure the wire
in place.
Audio Connections
Before making connections, be sure to check that the audio component’s power and the unit’s main power is off.
INPUT1
INPUT2
INPUT3
INPUT4
INPUT5
Audio input
terminal
Sound output
Stereo mini jack
(L/R)
Pin jacks (L/R)
Pin jacks (L/R)
Pin jacks (L/R)
Sound of the selected video
input is output from the
• SPEAKER terminals
• Stereo mini jack (L/R).
Video
input
Making connections to the audio inputs on this
unit
This unit features three audio inputs and one audio output.
The following chart shows the video inputs and the
corresponding audio input terminals.
About DTV Set Top Box Connection
To ensure proper connection, please carefully read the instruction manual supplied with the DTV set top box.
The set top box output signals that this display is compatible with are as follows.
Video
signal type Video
signal format
Video signal
INPUT1
Terminals where connection is possible
INPUT4 INPUT3 INPUT2
HDTV
SDTV
1080i
720p
1080p
480i
480p
Component
RGB
Digital
Component
RGB
Composite
S Video
Component
RGB
Component
RGB
Digital
INPUT5
