EQ Commercial Pump With Strainer Pot 6" x 4"
Part #
description
Voltage
amps
Phase
HP
Wt
dim. a dim. B dim. C dim. d
340026
EQW 300 Waterfall
115/230
38/19
1
3
97
26.62
10.03
7.5
43.590
340027
EQWK 300 Waterfall
208
–
230/460 8.4
–
7.9/3.9
3
3
77
23.12
10.16
7.5
40.094
340028
EQW 500 Waterfall
230
23.4
1
5
126
26.62
13.18
9.7
43.590
340029
EQWK 500 Waterfall
208
–
230/460 13.6
–
12.7/6.4
3
5
106
23.12
13.31
9.7
40.094
340030
EQ500
230
19.6
1
5
97
26.62
10.03
7.5
43.590
340031
EQK500
208
–
230/460 13.5
–
12.3/6.2
3
5
77
23.12
10.16
7.5
40.094
340032
EQ750
230
30.4
1
7.5
132
27.53
10.78
8.5
44.590
340033
EQK750
208
–
230/460 20.1
–
18.3/9.1
3
7.5
87
24.50
10.16
7.5
41.560
340034
EQK1000
208
–
230/460 27.1
–
24.3/12.2 3
10
117
26.31
10.78
8.5
43.290
340035
EQK1500
208
–
230/460 40.0
–
36.0/17.8 3
15
132
26.31
10.78
8.5
43.290
340013
Strainer Pot Assembly including Strainer, Lid, Basket, and Hardware
EQ Commercial Pump Without Strainer Pot 6" x 4"
Part #
description
Voltage
amps
Phase
HP
Wt
340014
EQW 300 Waterfall
115/230
38/19
1
3
97
340016
EQWK 300 Waterfall
208
–
230/460 8.4
–
7.9/3.9
3
3
77
340017
EQW 500 Waterfall
230
23.4
1
5
97
340018
EQWK 500 Waterfall
208
–
230/460 13.6
–
12.7/6.4
3
5
77
340019
EQ500
230
19.6
1
5
97
340020
EQK500
208
–
230/460 13.5
–
12.3/6.2
3
5
77
340021
EQ750
230
30.4
1
7.5
132
340022
EQK750
208
–
230/460 20.1
–
18.3/9.1
3
7.5
87
340023
EQK1000
208
–
230/460 27.1
–
24.3/12.2 3
10
117
340024
EQK1500
208
–
230/460 40.0
–
36.0/17.8 3
15
132
2
1
3
FASTENERS AND 0-RING ARE INCLUDED WITH PENTAIR POOL
PRODUCTS EQ 6X6 STRAINER TO CONNECT STRAINER DIRECTLY
TO EQ SERIES PUMP. IF PUMP IS TO BE INSTALLED WITHOUT
STRAINER MAKE BOTH CONNECTIONS PER NOTE 1.
USE ANSI CLASS 150 PLASTIC FLANGE AND 1/8" THICK CLASS
150 FULL FLANGE GASKET TO MAKE CONNECTION.
THIS DIAMETER FITS INSIDE 6" SCH 40 PIPE. DO NOT USE
SCH 80 PIPE AS FINAL PIPE SIZE WHEN MAKING THIS
FLANGE CONNECTION.
2
1
FASTENERS AND 0-RING ARE INCLUDED
WITH PENTAIR POOL PRODUCTS EQ
6X6 STRAINER TO CONNECT STRAINER
DIRECTLY TO EQ SERIES PUMP. IF PUMP
IS TO BE INSTALLED WITHOUT
STRAINER MAKE BOTH CONNECTIONS
PER NOTE 1.
USE ANSI CLASS 150 PLASTIC FLANGE
AND 1/8" THICK CLASS 150 FULL FLANGE
GASKET TO MAKE CONNECTION.

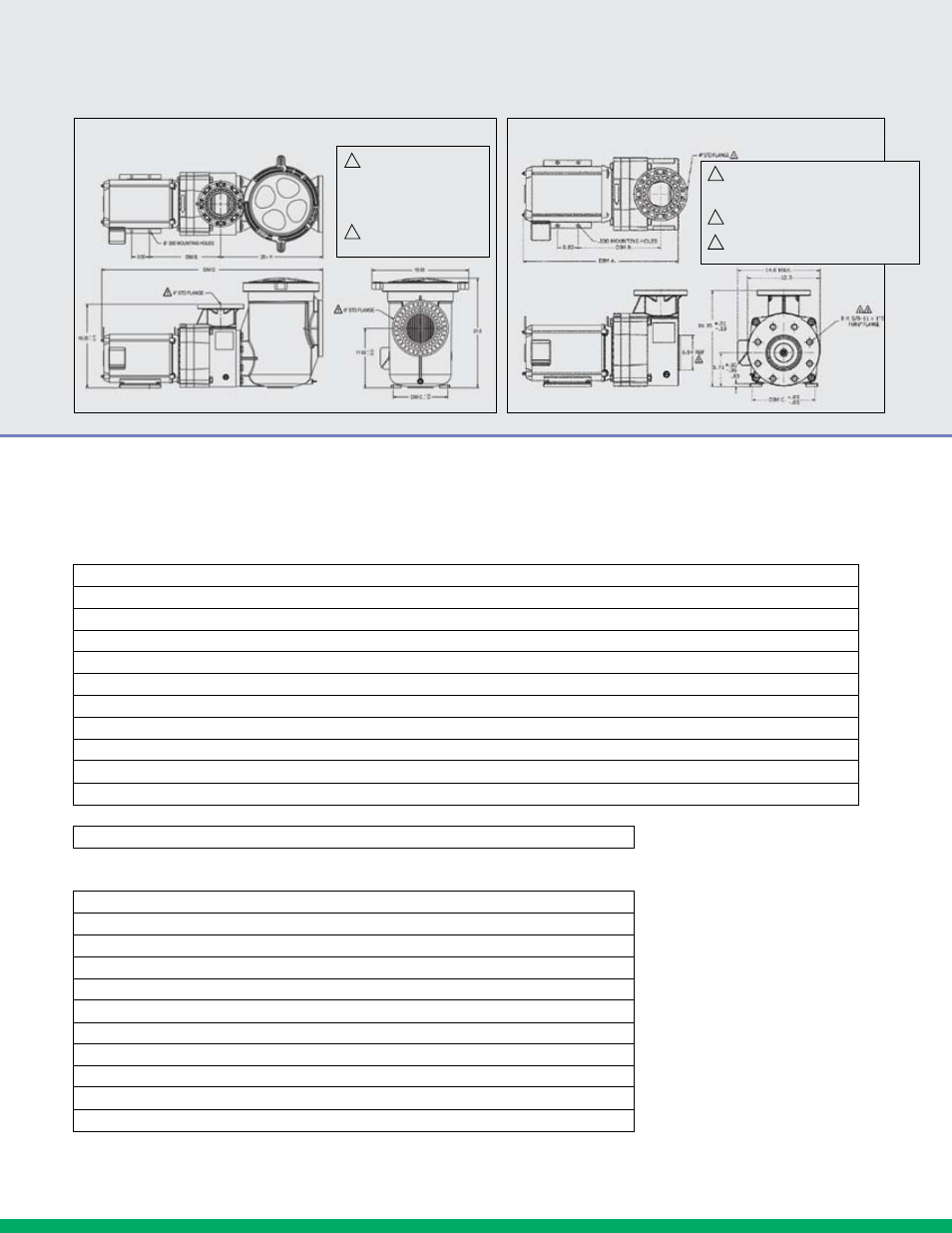

EQ Commercial Pump With Strainer Pot 6" x 4"
EQ Commercial Pump Without Strainer Pot
