Introduction
Designed for use in broadcasting and commercial applications, the model BT-LH900A is a slim-line and lightweight liquid
crystal video monitor with an 8.4-type liquid crystal screen.
For use, secure it in place by, for instance, installing it in a rack by using the optional rack-mounting adapters BT-MA900G or
mounting it on a tripod.
∫ Slim design, light weight, compact size, low
power consumption and driven by DC
power
Since this monitor uses an LCD panel, it has a slim
design, light weight and compact size. Furthermore, while
supporting HD specifications, it has a low power
consumption, and it can be operated using DC power:
these are all features which make the monitor useful in
outdoor locations.
∫ Multiple formats supported
In addition to its two lines of SDI input connectors
(automatic HD/SD switching), the monitor provides one
line each of component input connectors and composite
input connectors.
∫ Wide viewing angle
The monitor can display excellent images over an angle
extending for 170 degrees in both the top-bottom and left-
right directions.
∫ High-definition images
At 1024 a 768 dots (XGA), the large number of screen
pixels ensures a high color reproducibility and tonal range.
∫ Functions
The main controls can be relocated to the bottom surface
or right panel of the main unit to support monitor
specifications, viewfinder specifications and other
applications.
≥ The monitor comes with a film gamma correction
function to support its use as the viewfinder for the AJ-
HDC27 series. (For further details, consult with your
dealer.)
≥ Waveform monitor functions provided
≥ Marker functions and blue-only function incorporated
≥ RS-232C external control, remote control using GPI
connector enabled

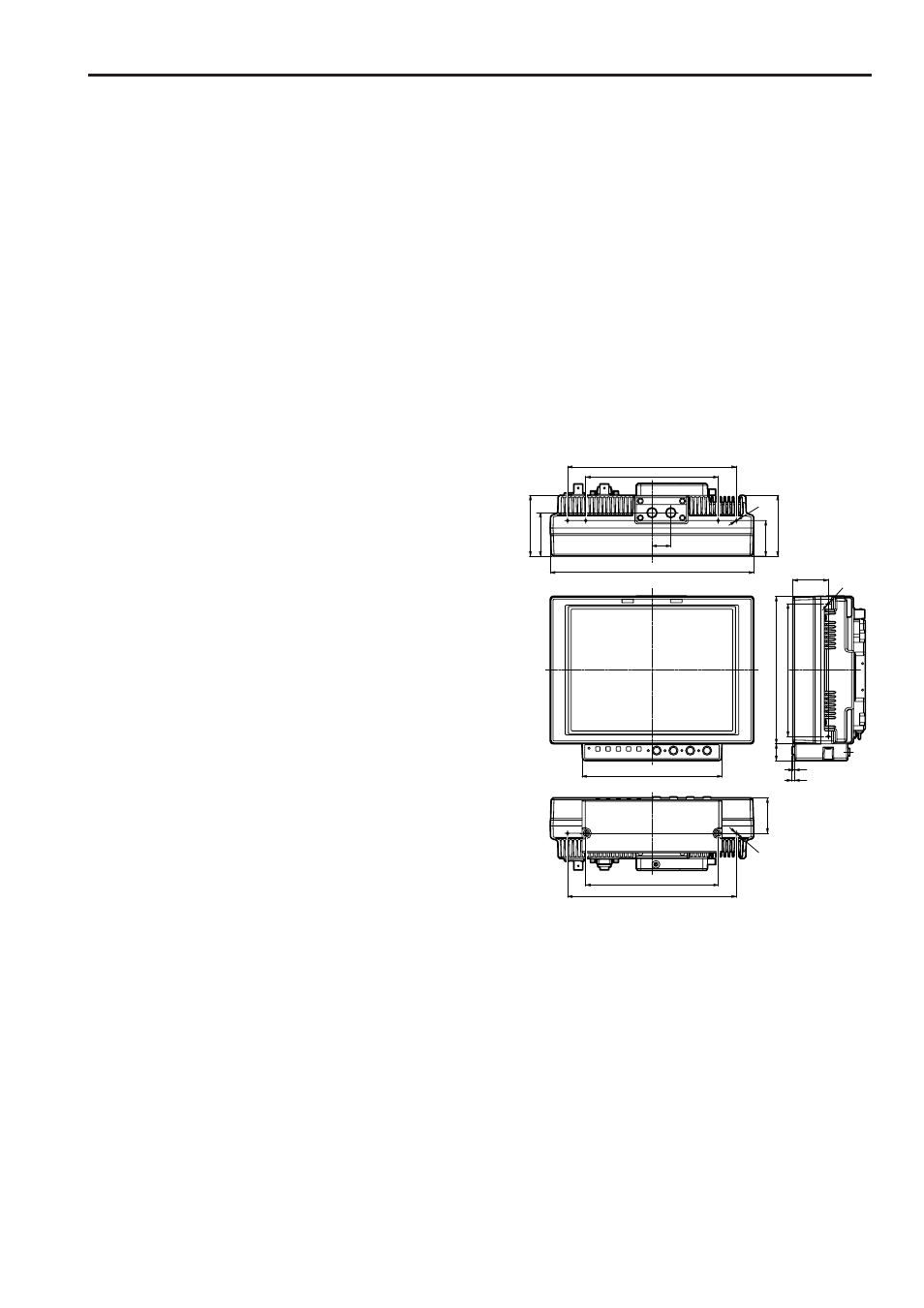

∫ Dimensions
Unit: mm
