35
En
BEFORE USING
English
AUDIO OUT
R L
VIDEO OUT
AV-IN AV-OUT S-VIDEO OUT AV-IN/OUT
DIGITAL OUT (OPTICAL)
PHONES HOLD ON/OFF
COLOR BRIGHT MONITOR

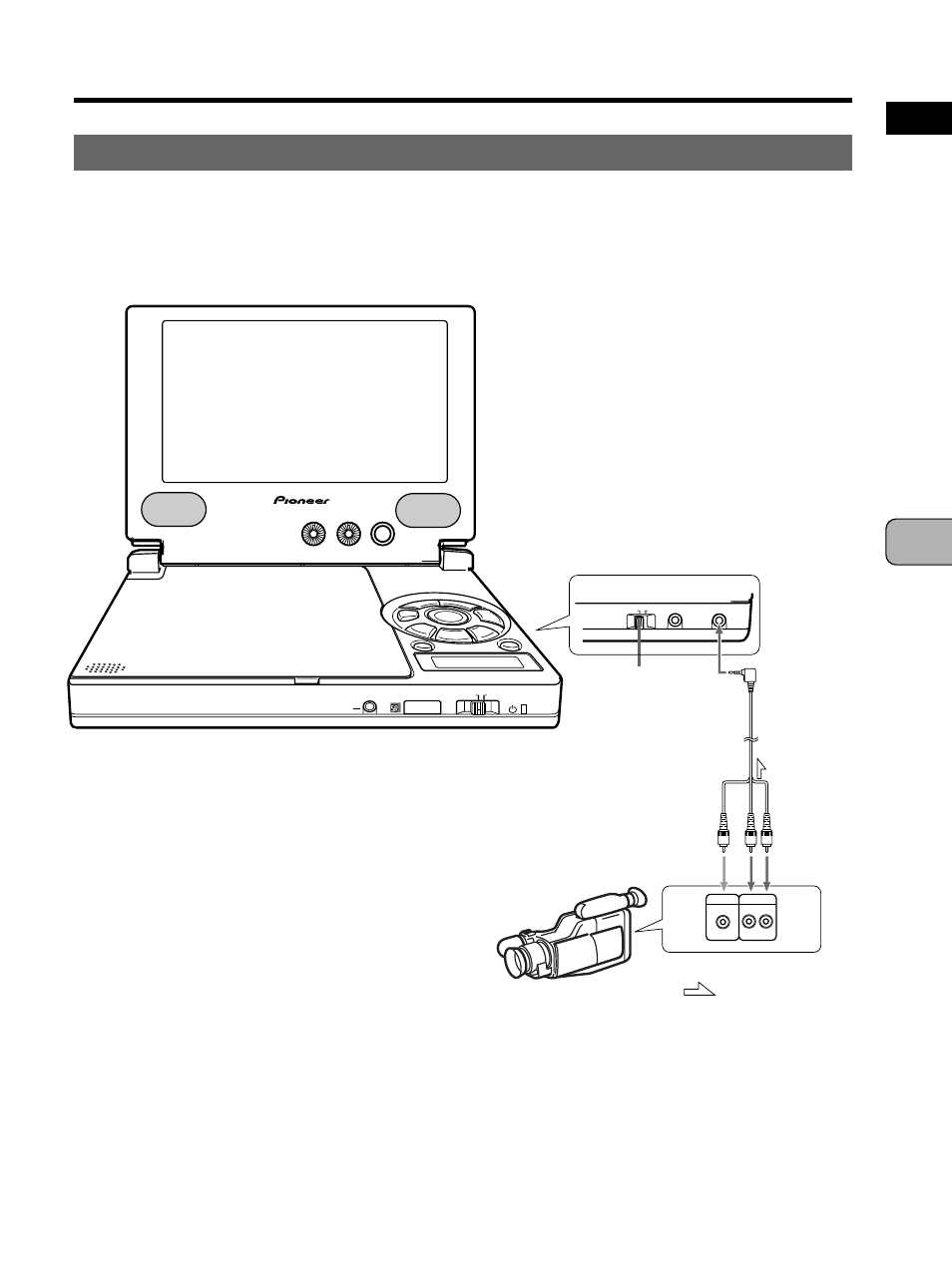

Connecting the Player to Other Components
Connecting to a video component, etc. (PDV-LC10 only)
When a video component, etc., is connected, the picture and sound of the
component can be enjoyed on the player’s liquid crystal display and over the
player’s speakers.
Main unit right side
Set the AV-IN/
AV-OUT switch to
AV-IN (left side).
“AV-IN” appears on
the display window.
Video/
audio cable
(included)
To video
output jack
To analog
audio output
jacks
8 mm video
camera, etc.
: Signal flow
Notes:
• The S-Video jack is for output only. Do not
make connections to it.
• The player cannot be operated when the
AV-IN/AV-OUT switch is set to AV-IN (video
input).
