Part Names and Functions
1 VOLUME control
Use this to adjust the volume of the
speakers or headphones.
2 Audio/video input/output
selector switch (AV-IN/AV-OUT)
(PDV-LC10 only)
Select input or output according to
how you are using the audio/video
input/output jack (4).
• Always set to the AV-OUT side when
you want to play discs.
• When set to the AV-IN side, “AV-IN”
appears on the main unit’s display
window.
3 S-Video output jack (S-VIDEO
OUT)
To connect the player to a TV equipped
with an S-Video input jack, connect the
included S-Video cable here. This jack
is S2-compatible.

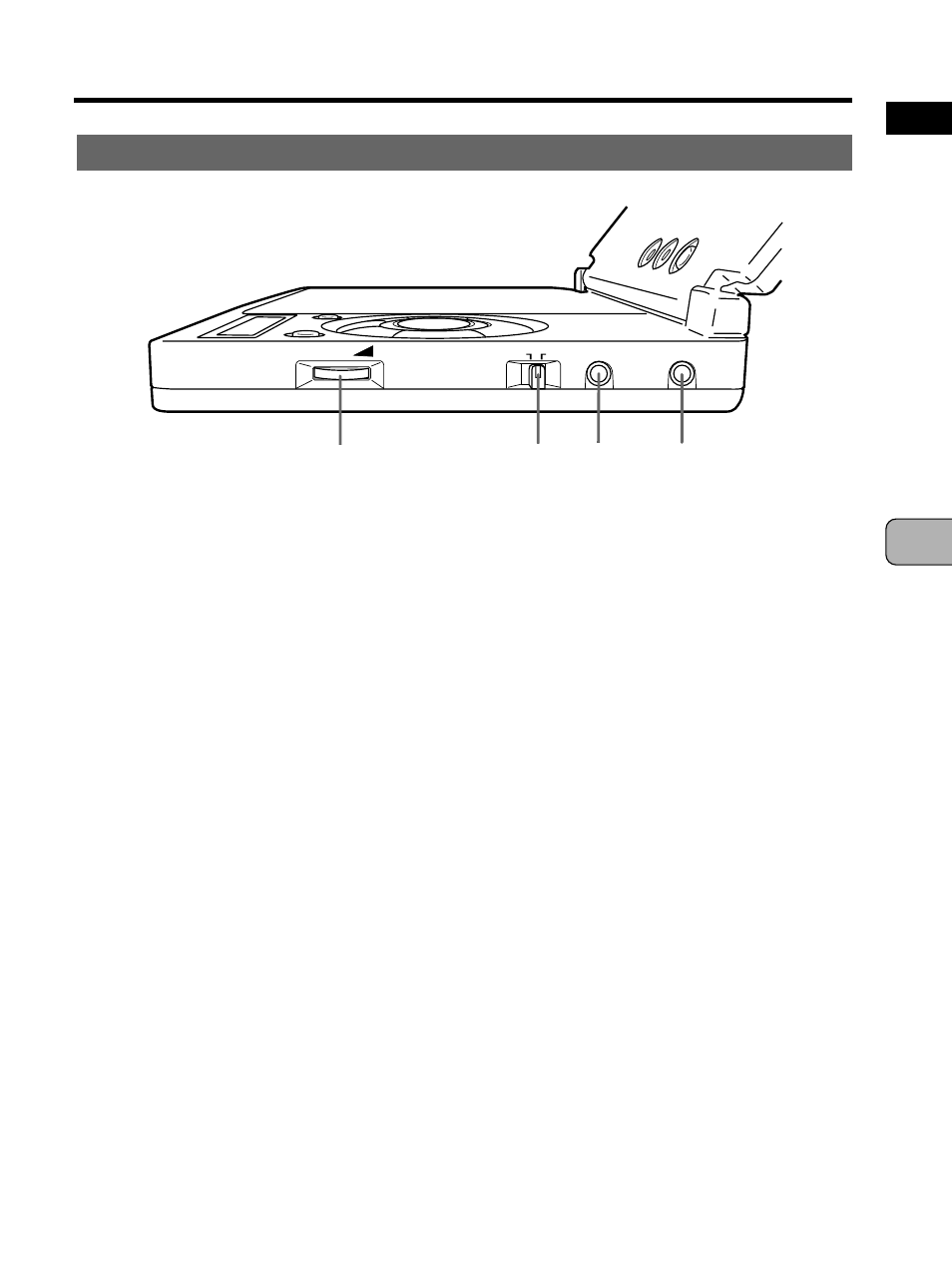

Main unit right side
PDV-LC10:
4 Audio/video input/output jack
(AV-IN/OUT)
To connect the player to a TV, connect
the included AV cable here. Select
input or output with the AV-IN/AV-OUT
selector switch 2.
PDV-10:
4 Audio/video output jack (AV-
OUT)
To connect the player to a TV, connect
the included AV cable here.
VOLUME AV-IN AV-OUT S-VIDEO OUT AV-IN/OUT
4 3 2 1
