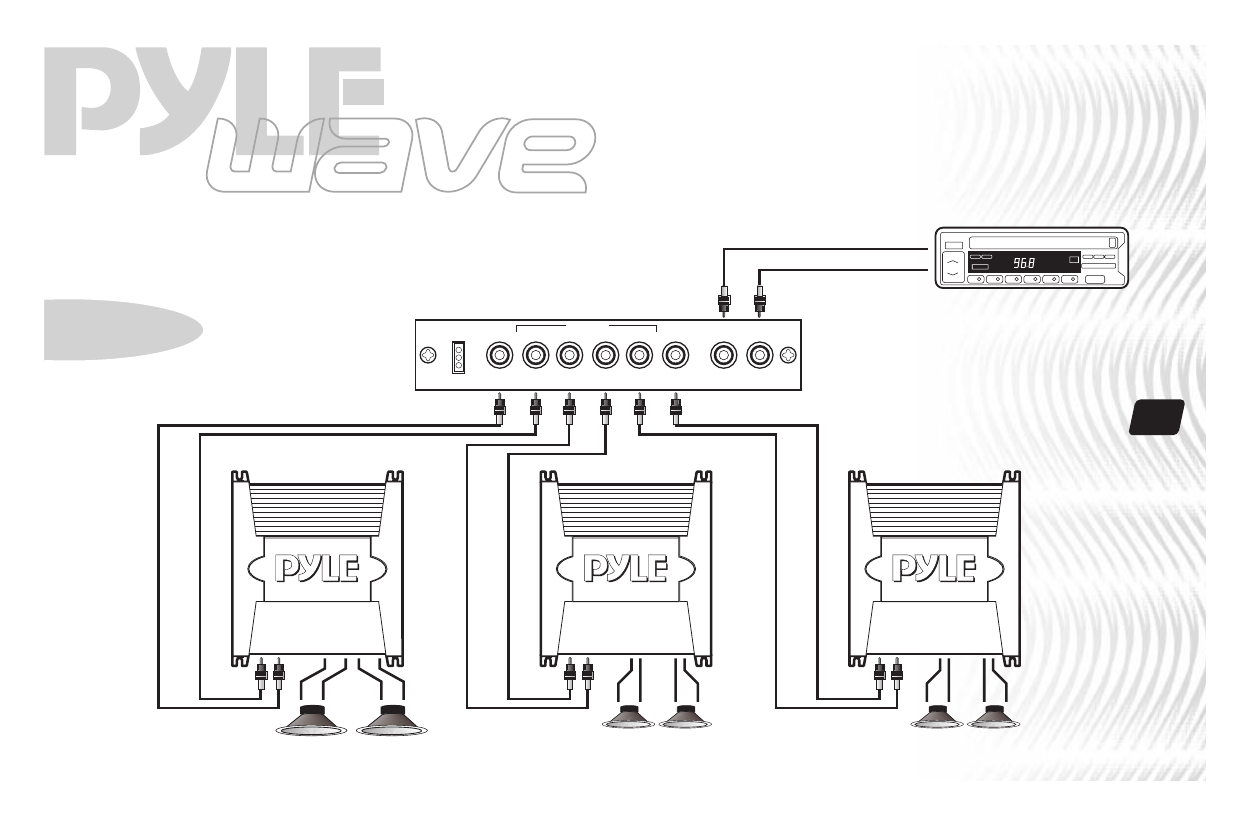

system wiring
P L E 7 5 5
S
head unit (stereo, CD player, tape deck, etc.)
left and right
line inputs
SUB CHANNEL
power amplifier REAR CHANNEL
power amplifier
FRONT CHANNEL
power amplifier
SUB CHANNEL
speakers
REAR CHANNEL
speakers
FRONT CHANNEL
speakers
L R L R L R
Basic system application
using
front, rear,
and
subwoofer amps
left and right
line outputs
from head unit
– + – +
OUTPUT
SUB REAR FRONT
INPUT
LINE
– + – + – + – +
L R L R L R L R
