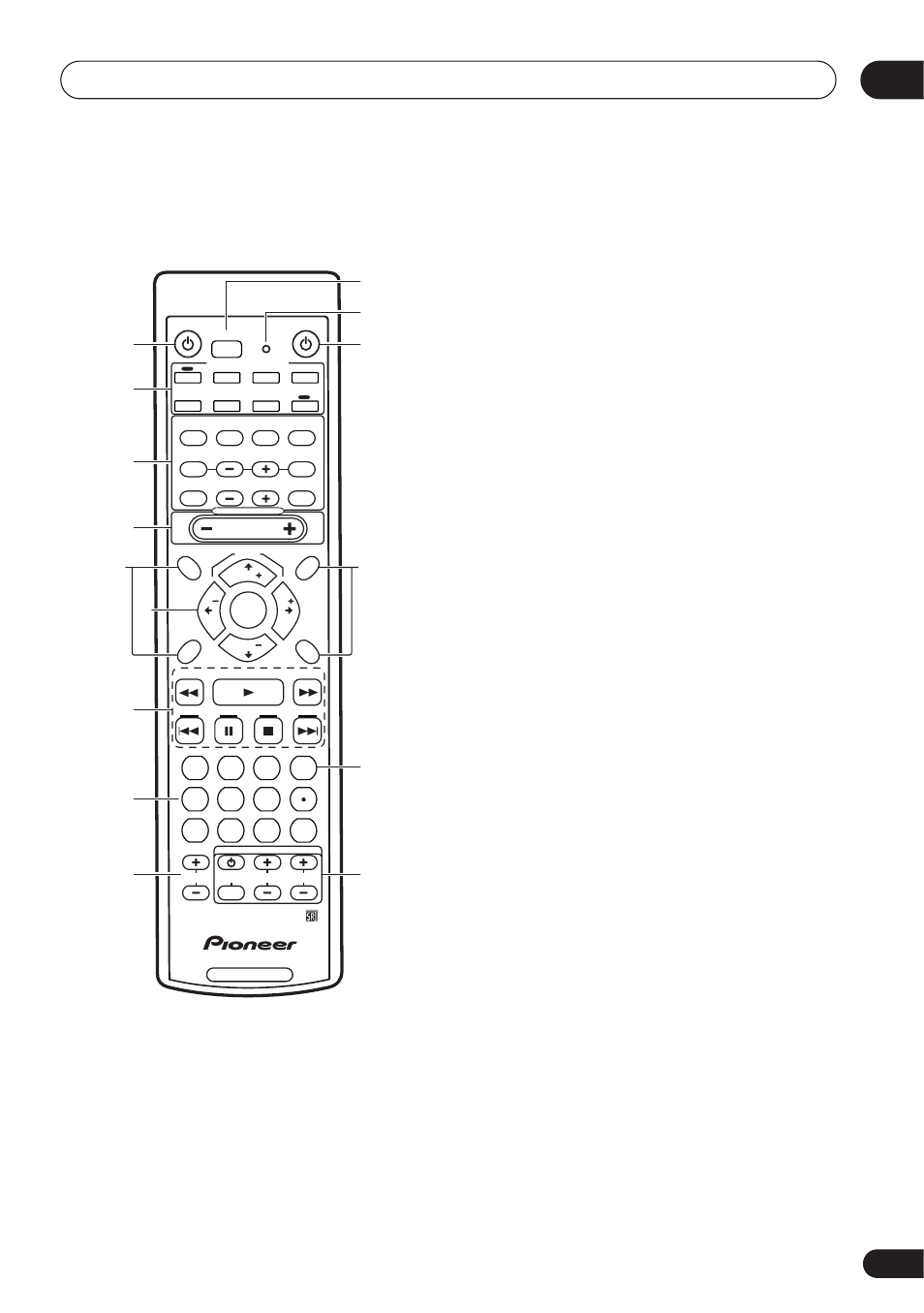

Remote control
1
RECEIVER
This switches between standby and on for this
receiver.
2
MULTI CONTROL buttons
Press to select control of other components
(see Controlling the rest of your system on
page 58).
RECEIVER
Switches the remote to control the
receiver (used to select the features such
as
SLEEP, MCACC SETUP, etc). Also use
this button to set up surround sound
(page 44, page 51).
3
RECEIVER CONTROL buttons
STANDARD
Press for Standard decoding and to
switch between the various Pro Logic II
and Neo:6 options (page 38).
ADVANCED SURROUND
Use to switch between the various
surround modes
STEREO/DIRECT
Switches between direct and stereo play-
back. Direct playback bypasses the tone
controls and channel levels for the most
accurate reproduction of a source
MIDNIGHT/LOUDNESS
Switches to Midnight or Loudness
listening
CH SELECT
Selects a speaker when setting up the
surround sound of the receiver
LEVEL +/–
Adjusts the levels of the surround sound
of the receiver
TEST TONE
Sounds the test tone when setting up the
surround sound of the receiver
MUTE
Mutes the sound (or restores the sound if
it has been muted).
EFFECT +/–
Adds or subtracts the amount of effect
with different advanced surround modes
(page 39).
SOURCE
MULTI CONTROL
RECEIVER
INPUT SELECT
STEREO/
DIRECT
MIDNIGHT/
