4. Remove the one screw shown below. Then turn over the
printed circuit board with the front side up.
5. Pull the two knobs out from the bracket shown in the fig-
ure. Then remove the bracket.
INSTALLATION
The installations described below should be made by
the qualified service personnel or system installers.
■ Installing the WV-PB6164 Data
Multiplex Boards
When controlling the camera with the multiplexed control
data by connecting a coaxial cable, the WV-PB6164 Data
Multiplex Board must be installed in the video multiplexer.
Four data multiplex boards are included with the WJ-
FS616C for cameras 1 to 4.
Please note that additional multiplex boards are available
for purchase as model WV-PB6164 Data Multiplex Boards,
which includes four control boards.
Caution: Before installing boards, be sure to turn off the
power switch of the video multiplexer.

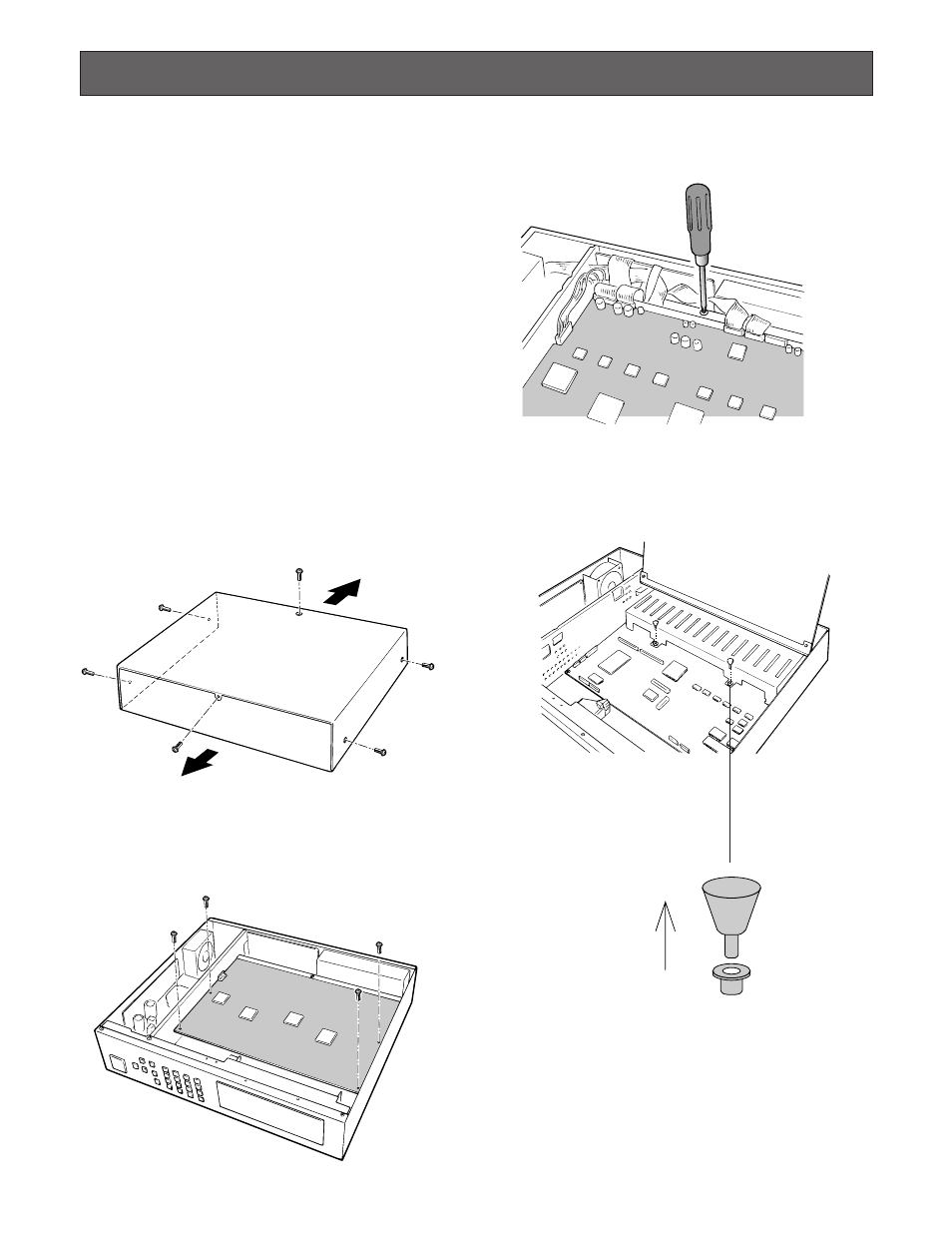

1. Remove the six screws on the top cover of the video
multiplexer as shown in the figure.
2. Remove the top cover.
3. Remove the four screws on the board as shown in the
figure.
Front
Rear
