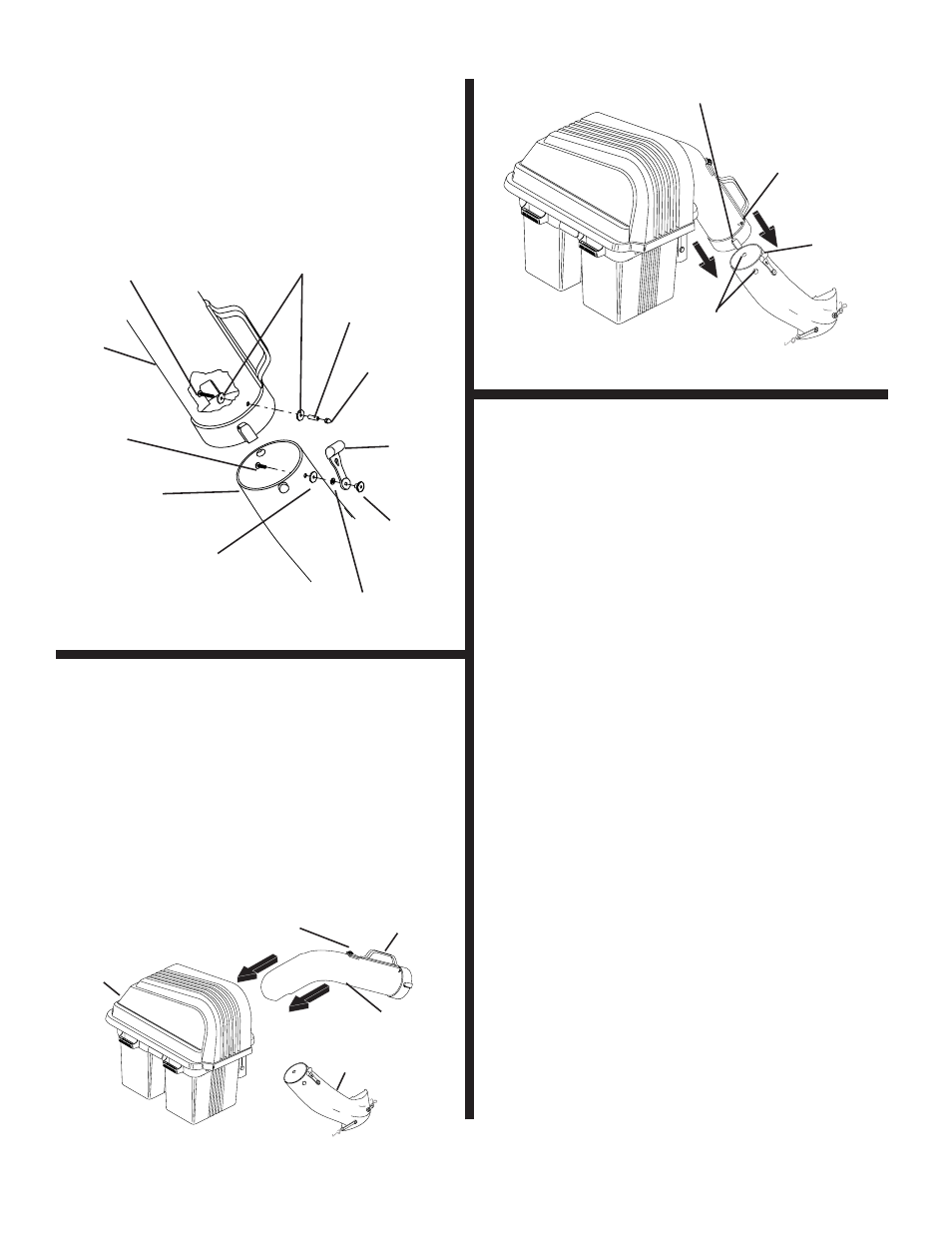

CHUTE LATCH ASSEMBLY
(See
Fig. 8)
Use Hardware - - GROUPS "E & F"
1. Assemble latch pin to upper chute, as shown.
2. Press weld nut into rubber latch and assemble rubber
latch to lower chute, as shown.
3. Tighten all hardware securely.
UPPER
CHUTE
LOCK WASHER
WELD
NUT
ACORN NUT
SPLIT
SPACER
WASHERS
3/16 x 3/4 x 16 Ga.
#10 x 1-1/8" SCREW
WASHER
3/16 x 3/4 x 16 Ga.
LOWER CHUTE
#10 x 5/8"
SCREW RUBBER
LATCH
8
FIG. 8
UPPER CHUTE (See Figs. 9A & 9B)
No hardware required
1. Lower mower deck to its lowest cutting position.
2. Assemble upper chute by inserting curved end into
hole in back of cover.
NOTE: Handle carefully so as not to damage dump bag
in di ca tor.
3. Push in and turn upper chute until it is in line with lower
chute.
4. Align the bosses on lower chute with alignment slots
on upper chute and slide together.
5. Secure with rubber latch by hooking hole in latch over
latch pin.
9
HANDLE DUMP BAG
INDICATOR
UPPER
CHUTE
COVER
LOWER
CHUTE
FIG. 9A
BOSSES
LATCH PIN
ALIGNMENT
SLOT
RUBBER
LATCH
FIG. 9B
LEVEL MOWER DECK
No hardware required
Be sure deck is properly leveled for best mower per for man ce.
See your tractors owner's manual for ins truc tions.
