8

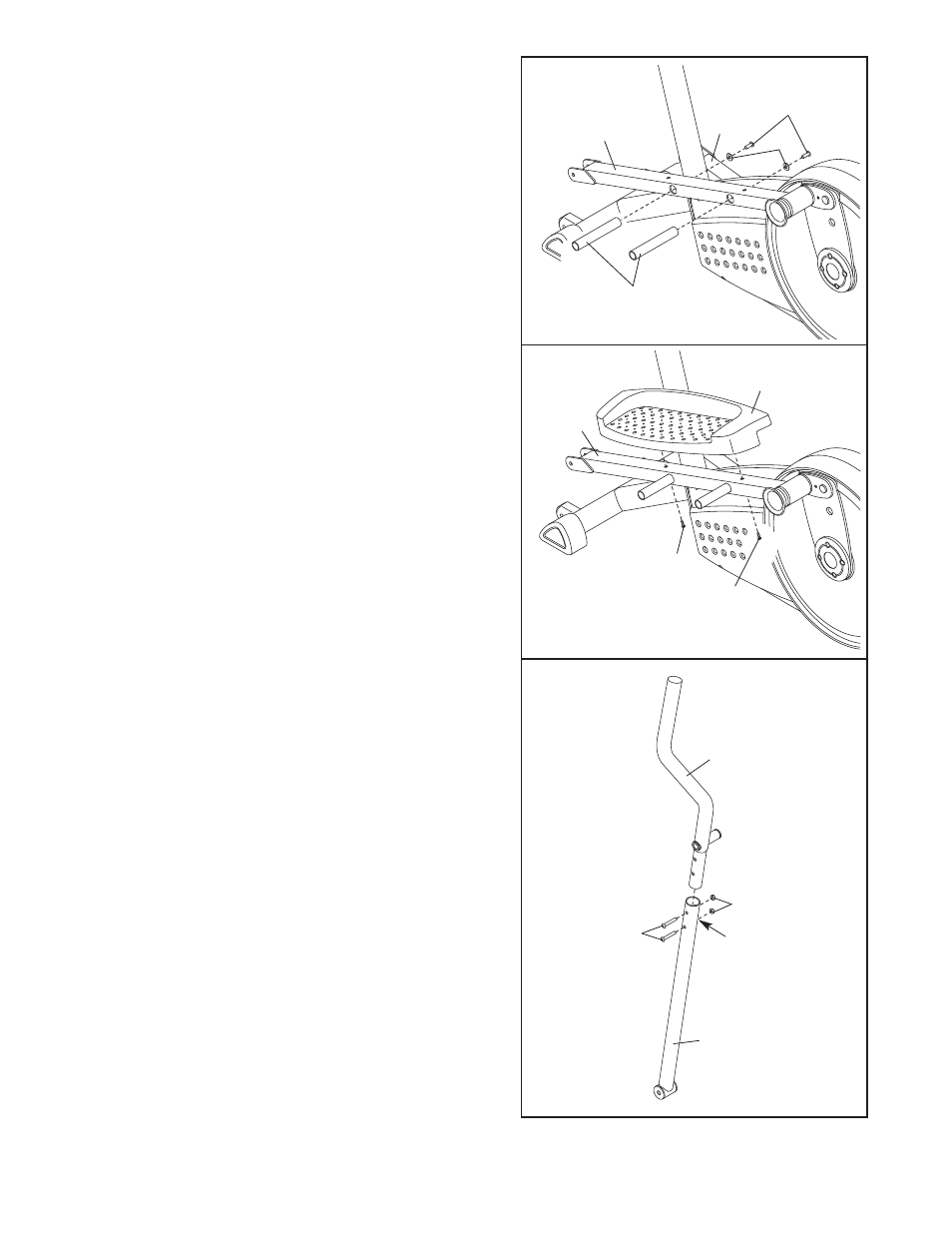

9. Identify the Left Handlebar (9), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Legs (79); make sure that the Handlebar
Leg is turned so the hexagonal holes are on the
indicated side. Attach the Left Handlebar with two M8
x 45mm Button Bolts (50) and two M8 Nylon Locknuts
(46). Make sure that the Nylon Locknuts are inside
of the hexagonal holes. Do not tighten the Button
Bolts yet.
Assemble the Right Handlebar (not shown) and the other
Handlebar Leg (not shown) in the same way.
46
9
9
50
Hexagonal
Holes
79
8. Attach one of the Pedals (12) to the Left Pedal Arm
(14) with two M4 x 16mm Screws (66).
Attach the other Pedal (not shown) to the Right Pedal
Arm (not shown) in the same way.
14
12
66
66
8
7. Attach two Pedal Posts (16) to the Left Pedal Arm (14)
with two M8 x 16mm Button Screws (84) and two M8
Washers (53).
Attach the other Pedal Posts (not shown) to the Right
Pedal Arm (75) in the same way.
7
16
14
84
53
75
