ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver , an adjustable
wrench , and a rubber mallet .

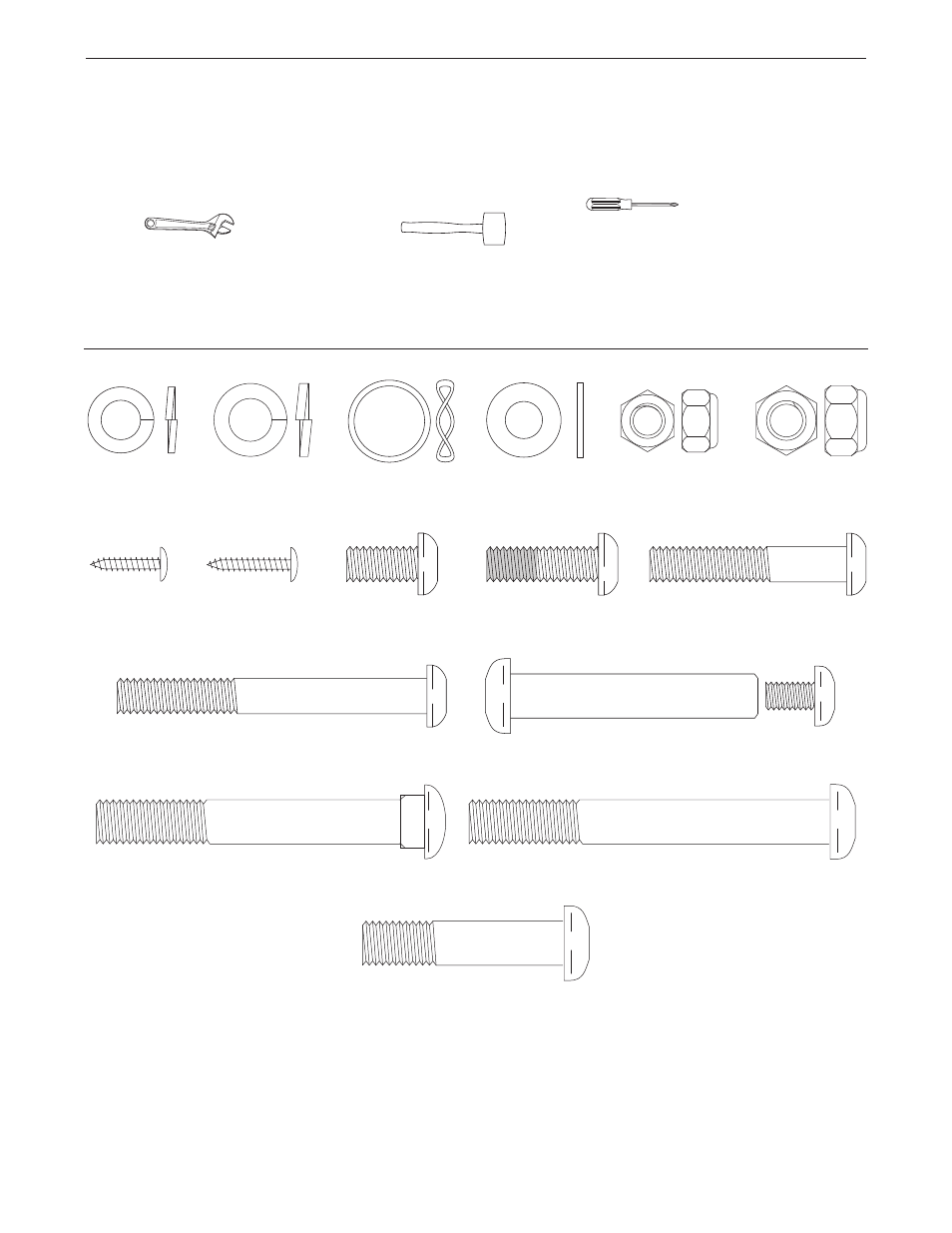

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on page 17. The number following the
parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a
part is not in the parts bag, check to see if it has been pre-assembled.
M10 x 75mm Carriage Bolt (34)–2 M10 x 83mm Button Screw (63)–2
M4 x 16mm
Screw (66)–8
M4 x 22mm
Screw (76)–2
M8 x 25mm Patch
Screw (22)–2
M8 x 16mm Button
Screw (84)–4
M10 x 59mm Bolt Set (27)–2 M8 x 70mm Button Bolt (67)–2
M10 Nylon
Locknut (29)–4
M8 Nylon
Locknut (46)–6
M10 Split
Washer (94)–2
M8 Washer
(53)–6
Wave Washer
(91)–2
M8 Split
Washer (83)–2
M8 x 45mm Button
Bolt (50)–4
M10 x 45mm Button Bolt (33)–2
