Operations Manual, HPA3, Mini Compact Outdoor SSPA 208143 REV - 13
2.0 Introduction
This section provides a physical description of the Mini Compact Outdoor, including pin-outs
of all connectors, power requirements for the installed unit, and instructions on single-unit
boom mounting.
2.1 Dimensions and Weight
The Mini Compact Outdoor SSPA enclosure dimensions are 9.00 in. W x 12.00 in. L x 8.00 in.
H. The addition of the RF Output waveguide and I/O connectors add a few inches to the over-
all length of the unit, but the width and height remain constant, independent of the frequency
band of the unit. See Figure 2-1 for an outline drawing of a Ku-Band Mini Compact Outdoor
SSPA.
The base unit weighs approximately 24.5 lbs. There are several options available for the Mini
Compact Outdoor SSPA that will add to the base weight. These are listed in Table 2-1, along
with the approximate weights for each power level.
Section 2: Installation
RF OUT
J2
SA M P L E
J3
J7 AC IN
LINK J5
J4
M & C STATUS SSPA
SWITCH
J6
J1
RF IN
J8 PW
R
AU
X
ETHERNET READY
MODEL: XXXXXXXXXXXX
S/N: XXXX P/N: LXXXXXX-X

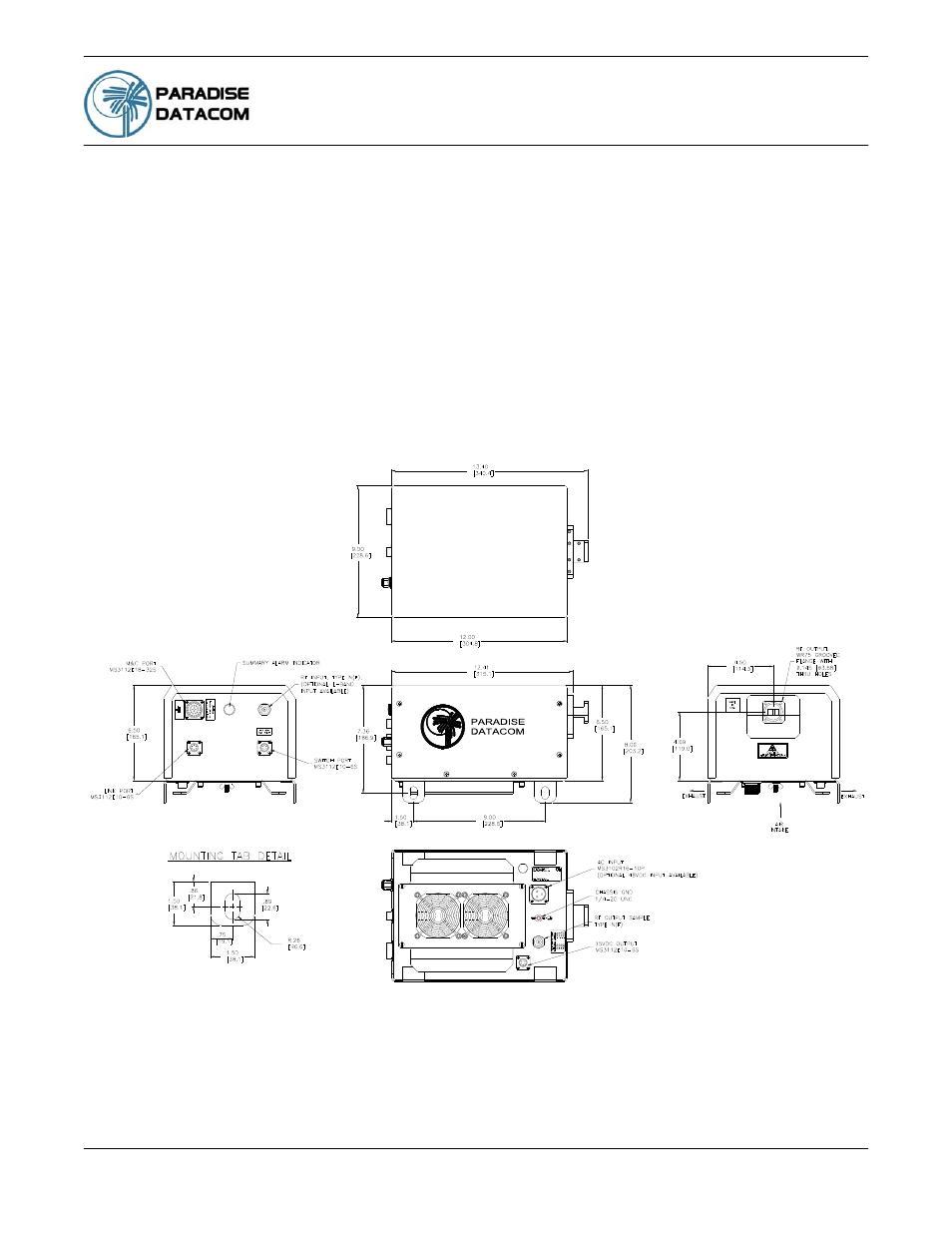

Figure 2-1: Outline Drawing, Ku-Band Mini Compact Outdoor SSPA
