XR 684F/XR 696F Hookup Diagrams
The following hookup diagrams are only suggestions. These powered mixers provide enough flexibility for a variety of needs.
Just use common sense when hooking up your equipment. When in doubt‚ consult your authorized Peavey dealer.

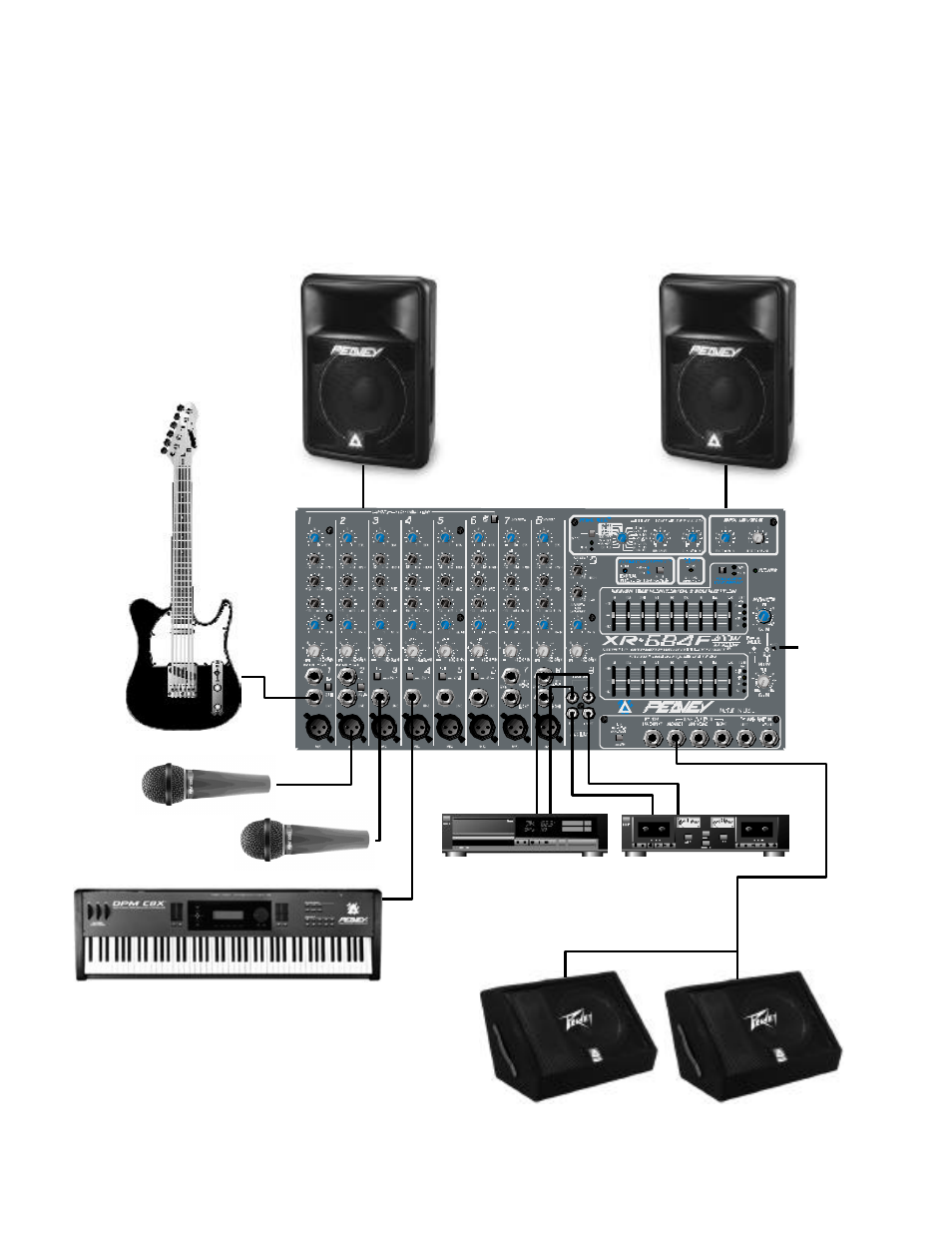

XR 684F/XR 696F Stereo Mode (Left/Right)
