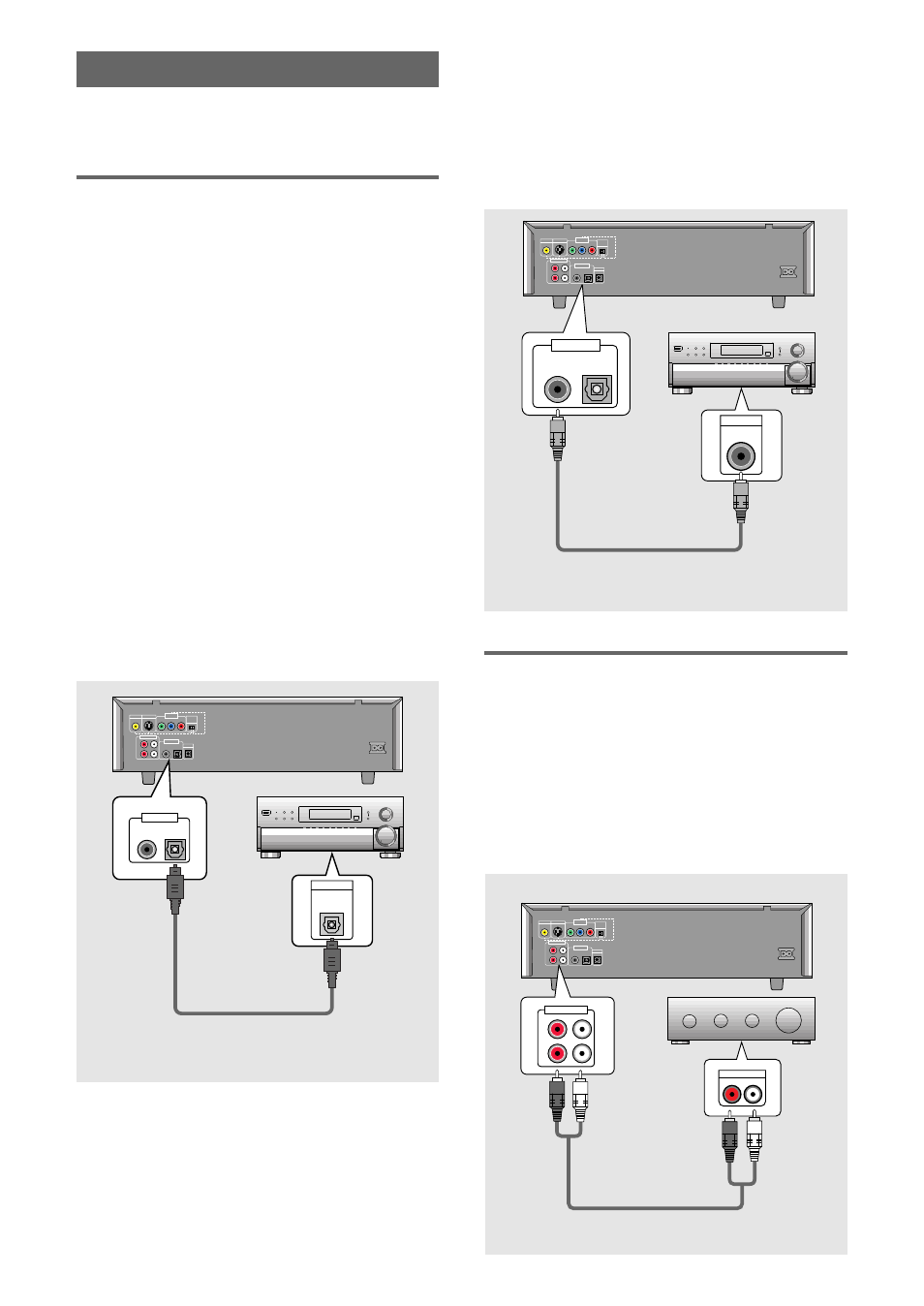

Audio Connections
This player features two digital (optical and coaxial) and
also analog audio output formats.
Digital Audio Connections:
You can enjoy the digital audio recorded on DVD, Video
CD or CD discs from both optical digital and coaxial
digital output jacks.
When making digital audio connections, do not
make connections from both the coaxial and optical
digital outputs to the same component.
When a DVD recorded in Dolby Digital, DTS, or MPEG is
loaded, noise will be output if you have made
connections via the digital audio jacks to a receiver or
amplifier that cannot decode a Dolby Digital, DTS, or
MPEG digital bitstream. In this case, be sure to set the
[Digital Jack] setting in the Setup Navigator to best
reflect the type of system you are using (page 20).
Additionally, the digital audio settings can be adjusted
manually in the Setup screen Audio 1 menu (page 28-
29).
DIGITAL OUT (Optical)
The digital signal is transmitted as light pulses through a
fiber-optic cable.
• Use to connect to an AV amplifier or receiver with
built-in Dolby Digital, DTS, or MPEG decoder.
• Use a fiber-optic cable (not supplied) to connect the
DIGITAL OUT OPT (optical digital output) on the
player to the optical digital input on an AV amplifier or
receiver.
DIGITAL OUT (Coaxial)
The digital signal is transmitted electronically through a
coaxial cable.
• Use to connect to an AV amplifier or receiver with
built-in Dolby Digital, DTS, or MPEG decoder.
• Use a coaxial cable (not supplied) to connect the
DIGITAL OUT (coaxial digital output) on the player to
the coaxial digital input on an AV amplifier or receiver.
AV amplifier or receiver with
built-in Dolby Digital, DTS, or
MPEG decoder
Analog Audio Connection:
AUDIO OUT
• Make analog audio connections to a stereo amplifier
or receiver.
• Analog audio connections can also be made to a TV or
monitor with stereo input jacks.
• Use the supplied audio cord to connect one of the
AUDIO OUT jack on the player to the audio input on
the stereo amplifier or receiver.
• When making analog audio connections, be sure to
match the color of the plugs with the color of the
jacks (red and white).
Stereo amplifier or receiver
AV amplifier or receiver with
built-in Dolby Digital, DTS, or
MPEG decoder
